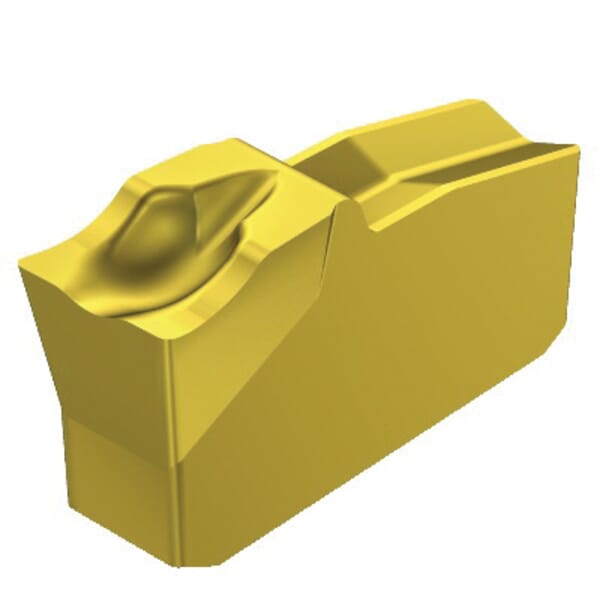

Sandvik Coromant 5741569 T-Max Q-Cut Parting Insert, ANSI Code: R151.2-300 05-5E 235, 30 R151.2 Insert, Material Grade: M, P, S, 0.1181 in W Cutting, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: 235

Product Line: Sandvik Coromant

MFG #: 5741569

Sandvik Coromant 5741569 T-Max Q-Cut Parting Insert, ANSI Code: R151.2-300 05-5E 235, 30 R151.2 Insert, Material Grade: M, P, S, 0.1181 in W Cutting, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: 235
Sandvik Coromant 5741569 T-Max Q-Cut Parting Insert, ANSI Code: R151.2-300 05-5E 235, 30 R151.2 Insert, Material Grade: M, P, S, 0.1181 in W Cutting, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: 235
Sandvik Coromant 5741569 T-Max Q-Cut Parting Insert, ANSI Code: R151.2-300 05-5E 235, 30 R151.2 Insert, Material Grade: M, P, S, 0.1181 in W Cutting, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: 235
Sandvik Coromant 5741569 T-Max Q-Cut Parting Insert, ANSI Code: R151.2-300 05-5E 235, 30 R151.2 Insert, Material Grade: M, P, S, 0.1181 in W Cutting, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: 235
Sandvik Coromant 5741569 T-Max Q-Cut Parting Insert, ANSI Code: R151.2-300 05-5E 235, 30 R151.2 Insert, Material Grade: M, P, S, 0.1181 in W Cutting, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: 235

Your Price

$20.62 / EA
Pack10/PK

Details

Part#826241569

Manufacturer:Sandvik Coromant

MFG #5741569

Sandvik Coromant Parting Insert, Series: T-Max Q-Cut, R151.2 Insert, 30 Insert, 0.1181 in Cutting Width, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, 0.2672 in Thickness, 0.219 in Length, 5E Chipbreaker, 0.008 in Corner Radius, Manufacturers Grade: 235, ANSI Code: R151.2-300 05-5E 235, ISO Code: R151.2-300 05-5E 235, Right Hand, Carbide, CVD-TiCN+TiN Coated, Material Grade: M, P, S

Specifications

ANSI Code
R151.2-300 05-5E 235
Chipbreaker
5E
Corner Radius
0.008 in
Country of Origin
JP
Cutting Width
0.1181 in
Finish
CVD-TiCN+TiN Coated
Hand of Insert
Right
Insert Size
30
Insert Style
R151.2
ISO Code
R151.2-300 05-5E 235
Lead Angle
5 deg
Lead Angle Direction
Right Hand
Length
0.219 in
Manufacturer Name
Sandvik Coromant
Manufacturers Grade
235
Material
Carbide
Material Grade
M, P, S
Relief Angle
7 deg
Series
T-Max Q-Cut
Thickness
0.2672 in

Application

For medium applications

Item Features

  • Dedicated geometries and grades for all materials
  • V-clamped 1-edged insert for good stability
  • For long overhangs and parting off big components

Documents

826241569

Sandvik Coromant 5741569 T-Max Q-Cut Parting Insert, ANSI Code: R151.2-300 05-5E 235, 30 R151.2 Insert, Material Grade: M, P, S, 0.1181 in W Cutting, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: 235

Description


Sandvik Coromant Parting Insert, Series: T-Max Q-Cut, R151.2 Insert, 30 Insert, 0.1181 in Cutting Width, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, 0.2672 in Thickness, 0.219 in Length, 5E Chipbreaker, 0.008 in Corner Radius, Manufacturers Grade: 235, ANSI Code: R151.2-300 05-5E 235, ISO Code: R151.2-300 05-5E 235, Right Hand, Carbide, CVD-TiCN+TiN Coated, Material Grade: M, P, S

Product Number: 826241569

Manufacturer: Sandvik Coromant

Prasdsadice:

$20.62 / EA
Pack10/PK

MFG #: 5741569

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: R151.2-300 05-5E 235

Chipbreaker: 5E

Corner Radius: 0.008 in

Country of Origin: JP

Cutting Width: 0.1181 in

Finish: CVD-TiCN+TiN Coated

Hand of Insert: Right

Insert Size: 30

Insert Style: R151.2

ISO Code: R151.2-300 05-5E 235

Lead Angle: 5 deg

Lead Angle Direction: Right Hand

Length: 0.219 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 235

Material: Carbide

Material Grade: M, P, S

Relief Angle: 7 deg

Series: T-Max Q-Cut

Thickness: 0.2672 in

Item Features

  • Dedicated geometries and grades for all materials
  • V-clamped 1-edged insert for good stability
  • For long overhangs and parting off big components
