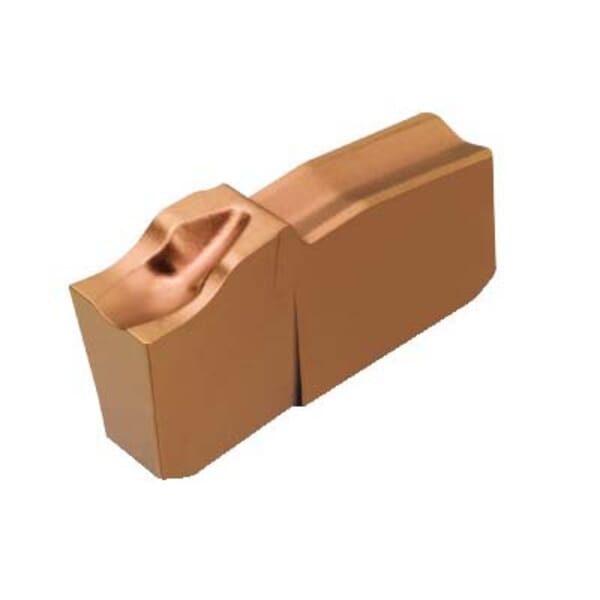

Sandvik Coromant 5741496 T-Max Q-Cut Parting Insert, ANSI Code: R151.2-200 12-5F 1125, 20 R151.2 Insert, Material Grade: K, M, N, P, S, 0.079 in W Cutting, 12 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, PVD-TiAlN Coated

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5741496 T-Max Q-Cut Parting Insert, ANSI Code: R151.2-200 12-5F 1125, 20 R151.2 Insert, Material Grade: K, M, N, P, S, 0.079 in W Cutting, 12 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, PVD-TiAlN Coated

ManufacturerSandvik Coromant

Part #826241496

MFG #5741496

Sandvik Coromant Parting Insert, Series: T-Max Q-Cut, R151.2 Insert, 20 Insert, 0.079 in Cutting Width, 12 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, 0.2211 in Thickness, 0.179 in Length, 5F Chipbreaker, 0.004 in Corner Radius, Manufacturers Grade: 1125, ANSI Code: R151.2-200 12-5F 1125, ISO Code: R151.2-200 12-5F 1125, Right Hand, Carbide, PVD-TiAlN Coated, Material Grade: K, M, N, P, S

$19.57

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: R151.2-200 12-5F 1125

Chipbreaker: 5F

Corner Radius: 0.004 in

Country of Origin: JP

Cutting Width: 0.079 in

Finish: PVD-TiAlN Coated

Hand of Insert: Right

Insert Size: 20

Insert Style: R151.2

ISO Code: R151.2-200 12-5F 1125

Lead Angle: 12 deg

Lead Angle Direction: Right Hand

Length: 0.179 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1125

Material: Carbide

Material Grade: K, M, N, P, S

Relief Angle: 7 deg

Series: T-Max Q-Cut

Thickness: 0.2211 in

Dedicated geometries and grades for all materials
V-clamped 1-edged insert for good stability
For long overhangs and parting off big components

Finishing Applications

Catalog

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: R151.2-200 12-5F 1125

Chipbreaker: 5F

Corner Radius: 0.004 in

Country of Origin: JP

Cutting Width: 0.079 in

Finish: PVD-TiAlN Coated

Hand of Insert: Right

Insert Size: 20

Insert Style: R151.2

ISO Code: R151.2-200 12-5F 1125

Lead Angle: 12 deg

Lead Angle Direction: Right Hand

Length: 0.179 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1125

Material: Carbide

Material Grade: K, M, N, P, S

Relief Angle: 7 deg

Series: T-Max Q-Cut

Thickness: 0.2211 in

Dedicated geometries and grades for all materials
V-clamped 1-edged insert for good stability
For long overhangs and parting off big components

Finishing Applications

Catalog

SDS
