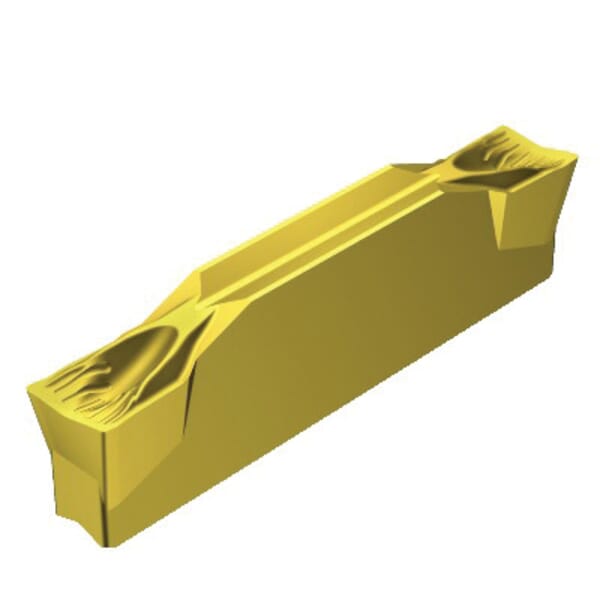

Sandvik Coromant 5741489 CoroCut 1-2 Parting Insert, ANSI Code: R123F2-0250-0501-CF 2135, F R123x2 Insert, Material Grade: H, K, M, N, P, S, 0.0984 in W Cutting, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide

Product Line: Sandvik Coromant

MFG #: 5741489

Sandvik Coromant 5741489 CoroCut 1-2 Parting Insert, ANSI Code: R123F2-0250-0501-CF 2135, F R123x2 Insert, Material Grade: H, K, M, N, P, S, 0.0984 in W Cutting, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide
Sandvik Coromant 5741489 CoroCut 1-2 Parting Insert, ANSI Code: R123F2-0250-0501-CF 2135, F R123x2 Insert, Material Grade: H, K, M, N, P, S, 0.0984 in W Cutting, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide
Sandvik Coromant 5741489 CoroCut 1-2 Parting Insert, ANSI Code: R123F2-0250-0501-CF 2135, F R123x2 Insert, Material Grade: H, K, M, N, P, S, 0.0984 in W Cutting, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide
Sandvik Coromant 5741489 CoroCut 1-2 Parting Insert, ANSI Code: R123F2-0250-0501-CF 2135, F R123x2 Insert, Material Grade: H, K, M, N, P, S, 0.0984 in W Cutting, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide
Sandvik Coromant 5741489 CoroCut 1-2 Parting Insert, ANSI Code: R123F2-0250-0501-CF 2135, F R123x2 Insert, Material Grade: H, K, M, N, P, S, 0.0984 in W Cutting, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide

Your Price

$33.92 / EA
Pack10/PK

Details

Part#826241489

Manufacturer:Sandvik Coromant

MFG #5741489

Sandvik Coromant Parting Insert, Series: CoroCut 1-2, R123x2 Insert, F Insert, 0.0984 in Cutting Width, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, 0.1692 in Thickness, 0.781 in Length, CF Chipbreaker, 0.006 in Corner Radius, Manufacturers Grade: 2135, ANSI Code: R123F2-0250-0501-CF 2135, ISO Code: R123F2-0250-0501-CF 2135, Right Hand, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: H, K, M, N, P, S

Specifications

ANSI Code
R123F2-0250-0501-CF 2135
Chipbreaker
CF
Corner Radius
0.006 in
Country of Origin
SE
Cutting Width
0.0984 in
Finish
CVD-TiCN+Al2O3+TiN Coated
Hand of Insert
Right
Insert Size
F
Insert Style
R123x2
ISO Code
R123F2-0250-0501-CF 2135
Lead Angle
5 deg
Lead Angle Direction
Right Hand
Length
0.781 in
Manufacturer Name
Sandvik Coromant
Manufacturers Grade
2135
Material
Carbide
Material Grade
H, K, M, N, P, S
Relief Angle
7 deg
Series
CoroCut 1-2
Thickness
0.1692 in

Application

Finishing Applications

Documents

826241489

Sandvik Coromant 5741489 CoroCut 1-2 Parting Insert, ANSI Code: R123F2-0250-0501-CF 2135, F R123x2 Insert, Material Grade: H, K, M, N, P, S, 0.0984 in W Cutting, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide

Description


Sandvik Coromant Parting Insert, Series: CoroCut 1-2, R123x2 Insert, F Insert, 0.0984 in Cutting Width, 5 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, 0.1692 in Thickness, 0.781 in Length, CF Chipbreaker, 0.006 in Corner Radius, Manufacturers Grade: 2135, ANSI Code: R123F2-0250-0501-CF 2135, ISO Code: R123F2-0250-0501-CF 2135, Right Hand, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: H, K, M, N, P, S

Product Number: 826241489

Manufacturer: Sandvik Coromant

Prasdsadice:

$33.92 / EA
Pack10/PK

MFG #: 5741489

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: R123F2-0250-0501-CF 2135

Chipbreaker: CF

Corner Radius: 0.006 in

Country of Origin: SE

Cutting Width: 0.0984 in

Finish: CVD-TiCN+Al2O3+TiN Coated

Hand of Insert: Right

Insert Size: F

Insert Style: R123x2

ISO Code: R123F2-0250-0501-CF 2135

Lead Angle: 5 deg

Lead Angle Direction: Right Hand

Length: 0.781 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 2135

Material: Carbide

Material Grade: H, K, M, N, P, S

Relief Angle: 7 deg

Series: CoroCut 1-2

Thickness: 0.1692 in

Application

Finishing Applications
