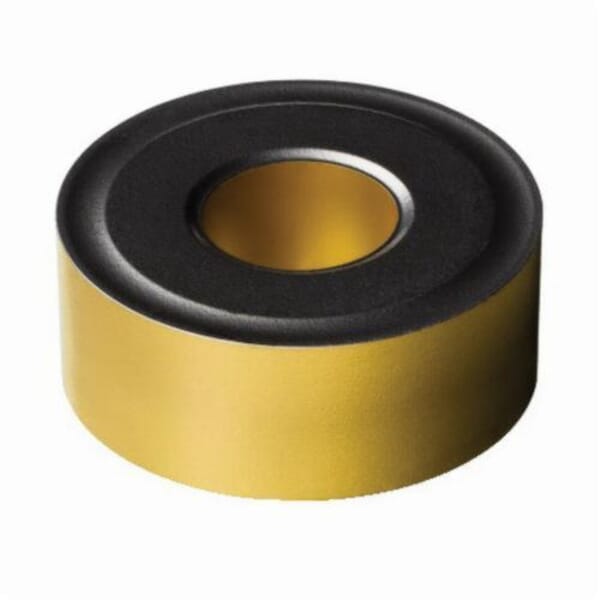

Sandvik Coromant 5741234 T-Max P 2-Sided Basic Shape Turning Insert, ANSI Code: RNMG 43 3210, RNMG Insert, Material Grade: K, 43 Insert, Round Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron, Carbide, Manufacturers Grade: 3210

Product Line: Sandvik Coromant

MFG #: 5741234

Sandvik Coromant 5741234 T-Max P 2-Sided Basic Shape Turning Insert, ANSI Code: RNMG 43 3210, RNMG Insert, Material Grade: K, 43 Insert, Round Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron, Carbide, Manufacturers Grade: 3210
Sandvik Coromant 5741234 T-Max P 2-Sided Basic Shape Turning Insert, ANSI Code: RNMG 43 3210, RNMG Insert, Material Grade: K, 43 Insert, Round Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron, Carbide, Manufacturers Grade: 3210
Sandvik Coromant 5741234 T-Max P 2-Sided Basic Shape Turning Insert, ANSI Code: RNMG 43 3210, RNMG Insert, Material Grade: K, 43 Insert, Round Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron, Carbide, Manufacturers Grade: 3210
Sandvik Coromant 5741234 T-Max P 2-Sided Basic Shape Turning Insert, ANSI Code: RNMG 43 3210, RNMG Insert, Material Grade: K, 43 Insert, Round Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron, Carbide, Manufacturers Grade: 3210
Sandvik Coromant 5741234 T-Max P 2-Sided Basic Shape Turning Insert, ANSI Code: RNMG 43 3210, RNMG Insert, Material Grade: K, 43 Insert, Round Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron, Carbide, Manufacturers Grade: 3210

Your Price

$17.97 / EA
Pack10/PK

Details

Part#826241234

Manufacturer:Sandvik Coromant

MFG #5741234

Sandvik Coromant Turning Insert, 2-Sided Basic Shape, Series: T-Max P, RNMG Insert, 43 Insert, Round, 0.189 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 12 Seat, Negative Rake, NMG Chipbreaker, 1/4 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 3210, ANSI Code: RNMG 43 3210, ISO Code: RNMG 12 04 00 3210, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, For Use On: Cast Iron

Specifications

ANSI Code
RNMG 43 3210
Chipbreaker
NMG
Corner Radius
1/4 in
Country of Origin
SE
Cutting Direction
Neutral
Finish
CVD-TiCN+Al2O3+TiN Coated
For Use On
Cast Iron
Hole Diameter
0.2029 in
Inscribed Circle
1/2 in
Insert Size
43
Insert Style
RNMG
ISO Code
RNMG 12 04 00 3210
Manufacturer Name
Sandvik Coromant
Manufacturers Grade
3210
Material
Carbide
Material Grade
K
Maximum Depth of Cut
0.189 in
Rake
Negative
Relief Angle
0 deg
Seat Size
12
Series
T-Max P
Shape
Round
Thickness
0.187 in
Type
2-Sided Basic Shape

Application

Medium Applications

Item Features

  • Reliable and secure machining, even in roughing applications
  • Possibility to optimize by using damped Silent Tools
  • Excellent surface finish

Documents

826241234

Sandvik Coromant 5741234 T-Max P 2-Sided Basic Shape Turning Insert, ANSI Code: RNMG 43 3210, RNMG Insert, Material Grade: K, 43 Insert, Round Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron, Carbide, Manufacturers Grade: 3210

Description


Sandvik Coromant Turning Insert, 2-Sided Basic Shape, Series: T-Max P, RNMG Insert, 43 Insert, Round, 0.189 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 12 Seat, Negative Rake, NMG Chipbreaker, 1/4 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 3210, ANSI Code: RNMG 43 3210, ISO Code: RNMG 12 04 00 3210, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, For Use On: Cast Iron

Product Number: 826241234

Manufacturer: Sandvik Coromant

Prasdsadice:

$17.97 / EA
Pack10/PK

MFG #: 5741234

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: RNMG 43 3210

Chipbreaker: NMG

Corner Radius: 1/4 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Cast Iron

Hole Diameter: 0.2029 in

Inscribed Circle: 1/2 in

Insert Size: 43

Insert Style: RNMG

ISO Code: RNMG 12 04 00 3210

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 3210

Material: Carbide

Material Grade: K

Maximum Depth of Cut: 0.189 in

Rake: Negative

Relief Angle: 0 deg

Seat Size: 12

Series: T-Max P

Shape: Round

Thickness: 0.187 in

Type: 2-Sided Basic Shape

Item Features

  • Reliable and secure machining, even in roughing applications
  • Possibility to optimize by using damped Silent Tools
  • Excellent surface finish
