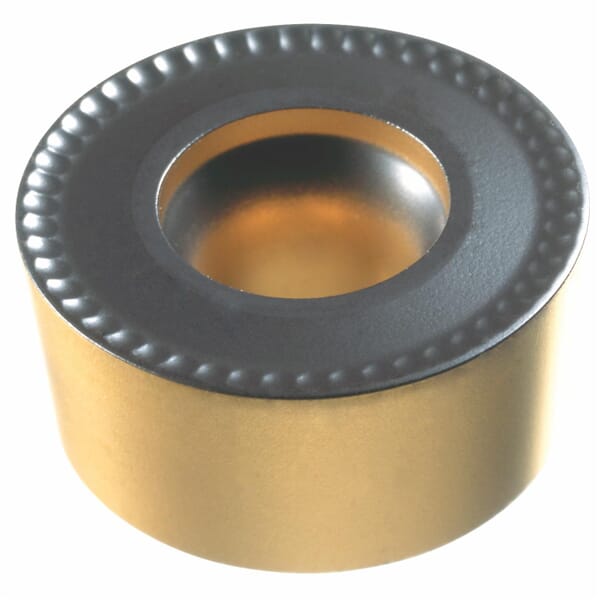

Sandvik Coromant 5740920 CoroTurn 107 1-Sided Basic Shape Turning Insert, ANSI Code: RCMT 08 03 M0 3210, RCMT Insert, Material Grade: K, 0803M0 Insert, Round Shape, 08 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron, Carbide

Product Line: Sandvik Coromant

MFG #: 5740920

Sandvik Coromant 5740920 CoroTurn 107 1-Sided Basic Shape Turning Insert, ANSI Code: RCMT 08 03 M0 3210, RCMT Insert, Material Grade: K, 0803M0 Insert, Round Shape, 08 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron, Carbide

Your Price

$13.11 / EA
Pack10/PK

Details

Part#826240920

Manufacturer:Sandvik Coromant

MFG #5740920

Sandvik Coromant Turning Insert, 1-Sided Basic Shape, Series: CoroTurn 107, RCMT Insert, 0803M0 Insert, Round, 0.126 in Maximum Depth of Cut, 0.315 in Inscribed Circle, 1/8 in Thickness, 08 Seat, Positive Rake, 0.157 in Corner Radius, 0.1338 in Hole Dia, Manufacturers Grade: 3210, ANSI Code: RCMT 08 03 M0 3210, ISO Code: RCMT 08 03 M0 3210, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, For Use On: Cast Iron

Specifications

ANSI Code
RCMT 08 03 M0 3210
Corner Radius
0.157 in
Country of Origin
SE
Cutting Direction
Neutral
Finish
CVD-TiCN+Al2O3+TiN Coated
For Use On
Cast Iron
Hole Diameter
0.1338 in
Inscribed Circle
0.315 in
Insert Size
0803M0
Insert Style
RCMT
ISO Code
RCMT 08 03 M0 3210
Manufacturer Name
Sandvik Coromant
Manufacturers Grade
3210
Material
Carbide
Material Grade
K
Maximum Depth of Cut
0.126 in
Rake
Positive
Relief Angle
7 deg
Seat Size
08
Series
CoroTurn 107
Shape
Round
Thickness
1/8 in
Type
1-Sided Basic Shape

Application

Medium Applications

Item Features

  • Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
  • The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
  • Wiper geometries available for high feeds and high quality surface finish
  • Ground, super sharp insert offer for exceptional surface finish

Documents

826240920

Sandvik Coromant 5740920 CoroTurn 107 1-Sided Basic Shape Turning Insert, ANSI Code: RCMT 08 03 M0 3210, RCMT Insert, Material Grade: K, 0803M0 Insert, Round Shape, 08 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron, Carbide

Description


Sandvik Coromant Turning Insert, 1-Sided Basic Shape, Series: CoroTurn 107, RCMT Insert, 0803M0 Insert, Round, 0.126 in Maximum Depth of Cut, 0.315 in Inscribed Circle, 1/8 in Thickness, 08 Seat, Positive Rake, 0.157 in Corner Radius, 0.1338 in Hole Dia, Manufacturers Grade: 3210, ANSI Code: RCMT 08 03 M0 3210, ISO Code: RCMT 08 03 M0 3210, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, For Use On: Cast Iron

Product Number: 826240920

Manufacturer: Sandvik Coromant

Prasdsadice:

$13.11 / EA
Pack10/PK

MFG #: 5740920

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: RCMT 08 03 M0 3210

Corner Radius: 0.157 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Cast Iron

Hole Diameter: 0.1338 in

Inscribed Circle: 0.315 in

Insert Size: 0803M0

Insert Style: RCMT

ISO Code: RCMT 08 03 M0 3210

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 3210

Material: Carbide

Material Grade: K

Maximum Depth of Cut: 0.126 in

Rake: Positive

Relief Angle: 7 deg

Seat Size: 08

Series: CoroTurn 107

Shape: Round

Thickness: 1/8 in

Type: 1-Sided Basic Shape

Item Features

  • Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
  • The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
  • Wiper geometries available for high feeds and high quality surface finish
  • Ground, super sharp insert offer for exceptional surface finish
