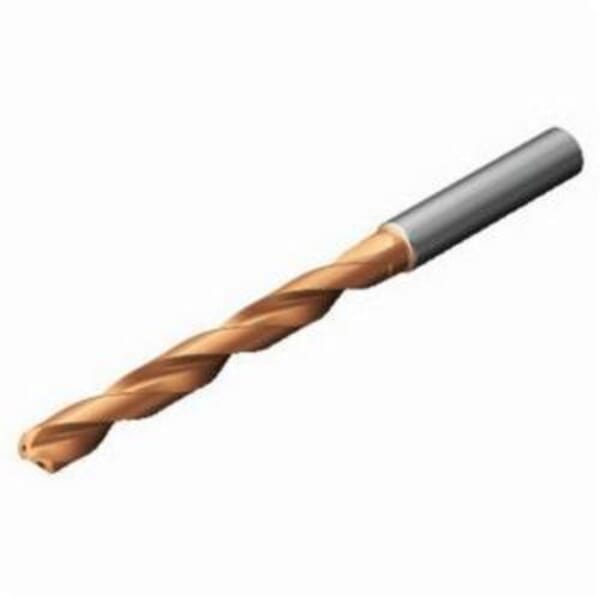

Sandvik Coromant 6040609 CoroDrill 860 High Performance Screw Machine Drill, 0.5314 in Drill - Decimal Inch, 7.1653 in OAL, Solid Carbide, PVD Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6040609 CoroDrill 860 High Performance Screw Machine Drill, 0.5314 in Drill - Decimal Inch, 7.1653 in OAL, Solid Carbide, PVD Coated

ManufacturerSandvik Coromant

Part #826240609

MFG #6040609

Sandvik Coromant Screw Machine Drill, High Performance, Series: CoroDrill 860, 0.5314 in Drill - Decimal Inch, 7.1653 in Overall Length, 8XD Cutting Depth, 2 Flutes, SSK Flute, 5.2755 in Flute Length, 0.5511 in Shank, Cylindrical Shank, 144 deg Point, Split Point, Right Hand Cutting Direction, Solid Carbide, PVD Coated, Applicable Materials: Steel, Stainless Steel and Aluminum

$871.53

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Applicable Materials: Steel, Stainless Steel and Aluminum

Country of Origin: US

Cutting Depth: 8XD

Cutting Direction: Right Hand

Drill Size - Decimal Inch: 0.5314 in

Finish: PVD Coated

Flute Length: 5.2755 in

Flute Type: SSK

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 7.1653 in

Point Angle: 144 deg

Point Type: Split

Series: CoroDrill 860

Shank Size: 0.5511 in

Shank Type: Cylindrical

Type: High Performance

4234 manufacturer grade
0 deg body half taper
Axial concentric coolant entry on circle
20 bar coolant
Axial concentric coolant exit on circle
EFW feed direction
19.8 deg orthogonal rake
29.099 deg helix flute
137 mm L body
179.8 mm L functional
45 mm L clamping
110.2 mm L usable
3 maximum regrinds
2.2 mm L point
3 mm L regrind
5895 r/min
H6 connection diameter tolerance
H8 achievable hole tolerance
P material grade
860.1..A1 (8xD) tool style

DIN1835-A|DIN6535-HA

SDS

Manufacturer Name: Sandvik Coromant

Applicable Materials: Steel, Stainless Steel and Aluminum

Country of Origin: US

Cutting Depth: 8XD

Cutting Direction: Right Hand

Drill Size - Decimal Inch: 0.5314 in

Finish: PVD Coated

Flute Length: 5.2755 in

Flute Type: SSK

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 7.1653 in

Point Angle: 144 deg

Point Type: Split

Series: CoroDrill 860

Shank Size: 0.5511 in

Shank Type: Cylindrical

Type: High Performance

4234 manufacturer grade
0 deg body half taper
Axial concentric coolant entry on circle
20 bar coolant
Axial concentric coolant exit on circle
EFW feed direction
19.8 deg orthogonal rake
29.099 deg helix flute
137 mm L body
179.8 mm L functional
45 mm L clamping
110.2 mm L usable
3 maximum regrinds
2.2 mm L point
3 mm L regrind
5895 r/min
H6 connection diameter tolerance
H8 achievable hole tolerance
P material grade
860.1..A1 (8xD) tool style

DIN1835-A|DIN6535-HA

SDS
