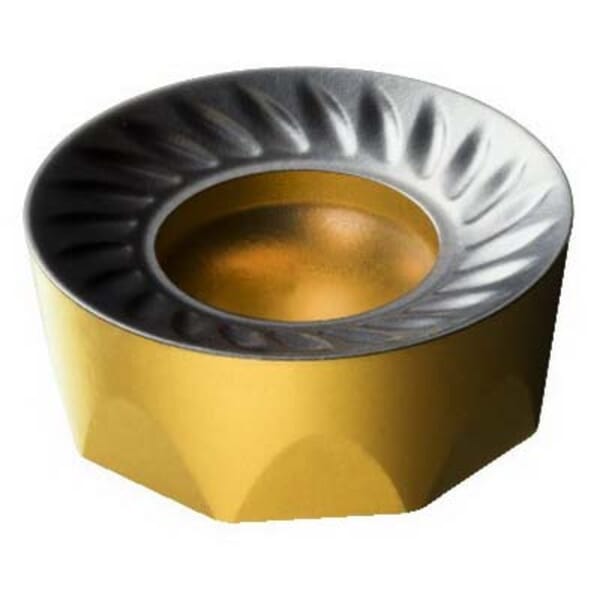

Sandvik Coromant 5740430 CoroMill 200 Milling Insert, ANSI Code: RCKT 10 T3 M0-PM 4220, RCKT Insert, 10T3M0 Insert, Carbide, Manufacturers Grade: 4220, Round Shape, Material Grade: H, K, P

Product Line: Sandvik Coromant

MFG #: 5740430

Sandvik Coromant 5740430 CoroMill 200 Milling Insert, ANSI Code: RCKT 10 T3 M0-PM 4220, RCKT Insert, 10T3M0 Insert, Carbide, Manufacturers Grade: 4220, Round Shape, Material Grade: H, K, P
Sandvik Coromant 5740430 CoroMill 200 Milling Insert, ANSI Code: RCKT 10 T3 M0-PM 4220, RCKT Insert, 10T3M0 Insert, Carbide, Manufacturers Grade: 4220, Round Shape, Material Grade: H, K, P
Sandvik Coromant 5740430 CoroMill 200 Milling Insert, ANSI Code: RCKT 10 T3 M0-PM 4220, RCKT Insert, 10T3M0 Insert, Carbide, Manufacturers Grade: 4220, Round Shape, Material Grade: H, K, P
Sandvik Coromant 5740430 CoroMill 200 Milling Insert, ANSI Code: RCKT 10 T3 M0-PM 4220, RCKT Insert, 10T3M0 Insert, Carbide, Manufacturers Grade: 4220, Round Shape, Material Grade: H, K, P

Your Price

$14.06 / EA
Pack10/PK

Details

Part#826240430

Manufacturer:Sandvik Coromant

MFG #5740430

Sandvik Coromant Milling Insert, Series: CoroMill 200, RCKT Insert, 10T3M0 Insert, Round, 0.394 in Inscribed Circle, 0.156 in Thickness, PM Chipbreaker, 0.197 in Corner Radius, Positive Rake, 7 deg Lead Angle, 0.1732 in Hole Dia, Manufacturers Grade: 4220, ANSI Code: RCKT 10 T3 M0-PM 4220, ISO Code: RCKT 10 T3 M0-PM 4220, Neutral Hand, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: H, K, P, Hardened Steel, Cast Iron and Steel Material Application

Specifications

ANSI Code
RCKT 10 T3 M0-PM 4220
Chipbreaker
PM
Corner Radius
0.197 in
Country of Origin
FR
Finish
CVD-TiCN+Al2O3+TiN Coated
Hand of Insert
Neutral
Hole Diameter
0.1732 in
Inscribed Circle
0.394 in
Insert Size
10T3M0
Insert Style
RCKT
ISO Code
RCKT 10 T3 M0-PM 4220
Lead Angle
7 deg
Manufacturer Name
Sandvik Coromant
Manufacturers Grade
4220
Material
Carbide
Material Application
Hardened Steel, Cast Iron and Steel
Material Grade
H, K, P
Rake
Positive
Series
CoroMill 200
Shape
Round
Thickness
0.156 in

Application

Medium

Documents

826240430

Sandvik Coromant 5740430 CoroMill 200 Milling Insert, ANSI Code: RCKT 10 T3 M0-PM 4220, RCKT Insert, 10T3M0 Insert, Carbide, Manufacturers Grade: 4220, Round Shape, Material Grade: H, K, P

Description


Sandvik Coromant Milling Insert, Series: CoroMill 200, RCKT Insert, 10T3M0 Insert, Round, 0.394 in Inscribed Circle, 0.156 in Thickness, PM Chipbreaker, 0.197 in Corner Radius, Positive Rake, 7 deg Lead Angle, 0.1732 in Hole Dia, Manufacturers Grade: 4220, ANSI Code: RCKT 10 T3 M0-PM 4220, ISO Code: RCKT 10 T3 M0-PM 4220, Neutral Hand, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: H, K, P, Hardened Steel, Cast Iron and Steel Material Application

Product Number: 826240430

Manufacturer: Sandvik Coromant

Prasdsadice:

$14.06 / EA
Pack10/PK

MFG #: 5740430

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: RCKT 10 T3 M0-PM 4220

Chipbreaker: PM

Corner Radius: 0.197 in

Country of Origin: FR

Finish: CVD-TiCN+Al2O3+TiN Coated

Hand of Insert: Neutral

Hole Diameter: 0.1732 in

Inscribed Circle: 0.394 in

Insert Size: 10T3M0

Insert Style: RCKT

ISO Code: RCKT 10 T3 M0-PM 4220

Lead Angle: 7 deg

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 4220

Material: Carbide

Material Application: Hardened Steel, Cast Iron and Steel

Material Grade: H, K, P

Rake: Positive

Series: CoroMill 200

Shape: Round

Thickness: 0.156 in

Application

Medium
