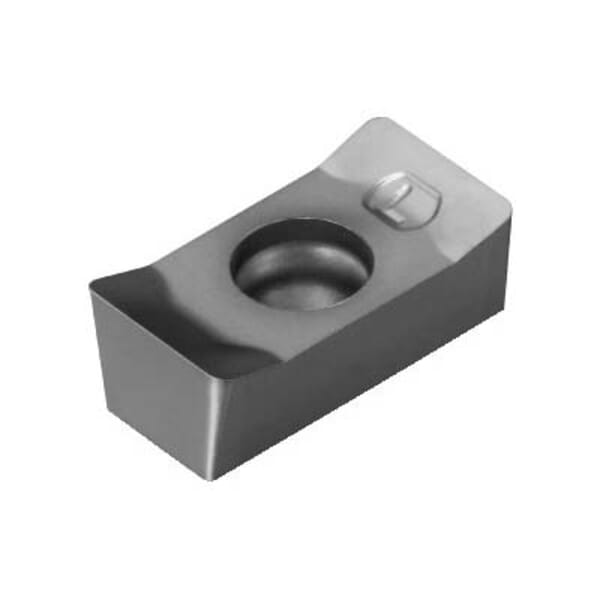

Sandvik Coromant 5738447 CoroMill 331 Milling Insert, ANSI Code: N331.1A-04 35 05H-WLH13A, N331.1A..H-WL Insert, 43505 Insert, Carbide, Manufacturers Grade: H13A, Rectangle Shape, Material Grade: K, N, S

Product Line: Sandvik Coromant

MFG #: 5738447

Sandvik Coromant 5738447 CoroMill 331 Milling Insert, ANSI Code: N331.1A-04 35 05H-WLH13A, N331.1A..H-WL Insert, 43505 Insert, Carbide, Manufacturers Grade: H13A, Rectangle Shape, Material Grade: K, N, S
Sandvik Coromant 5738447 CoroMill 331 Milling Insert, ANSI Code: N331.1A-04 35 05H-WLH13A, N331.1A..H-WL Insert, 43505 Insert, Carbide, Manufacturers Grade: H13A, Rectangle Shape, Material Grade: K, N, S
Sandvik Coromant 5738447 CoroMill 331 Milling Insert, ANSI Code: N331.1A-04 35 05H-WLH13A, N331.1A..H-WL Insert, 43505 Insert, Carbide, Manufacturers Grade: H13A, Rectangle Shape, Material Grade: K, N, S
Sandvik Coromant 5738447 CoroMill 331 Milling Insert, ANSI Code: N331.1A-04 35 05H-WLH13A, N331.1A..H-WL Insert, 43505 Insert, Carbide, Manufacturers Grade: H13A, Rectangle Shape, Material Grade: K, N, S

Your Price

$16.91 / EA
Pack10/PK

Details

Part#826238447

Manufacturer:Sandvik Coromant

MFG #5738447

Sandvik Coromant Milling Insert, Series: CoroMill 331, N331.1A..H-WL Insert, 43505 Insert, Rectangle Shape, 0.2 in Inscribed Circle, 0.138 in Thickness, 0.374 in Width, 0.2 in Length, WL Chipbreaker, 0.019 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1023 in Diameter Hole, Manufacturers Grade: H13A, ANSI Code: N331.1A-04 35 05H-WLH13A, ISO Code: N331.1A-04 35 05H-WLH13A, Neutral Hand of Insert, Carbide, Uncoated, Material Grade: K, N, S, Cast Iron, Non-Ferrous Metals and Heat Resistant Super Alloys Material Application

Specifications

ANSI Code
N331.1A-04 35 05H-WLH13A
Chipbreaker
WL
Corner Radius
0.019 in
Country of Origin
RU
Finish
Uncoated
Hand of Insert
Neutral
Hole Diameter
0.1023 in
Inscribed Circle
0.2 in
Insert Size
43505
Insert Style
N331.1A..H-WL
ISO Code
N331.1A-04 35 05H-WLH13A
Lead Angle
90 deg
Length
0.2 in
Manufacturer Name
Sandvik Coromant
Manufacturers Grade
H13A
Material
Carbide
Material Application
Cast Iron, Non-Ferrous Metals and Heat Resistant Super Alloys
Material Grade
K, N, S
Rake
Positive
Series
CoroMill 331
Shape
Rectangle
Thickness
0.138 in
Width
0.374 in

Application

Light, Side and Face Milling

Documents

826238447

Sandvik Coromant 5738447 CoroMill 331 Milling Insert, ANSI Code: N331.1A-04 35 05H-WLH13A, N331.1A..H-WL Insert, 43505 Insert, Carbide, Manufacturers Grade: H13A, Rectangle Shape, Material Grade: K, N, S

Description


Sandvik Coromant Milling Insert, Series: CoroMill 331, N331.1A..H-WL Insert, 43505 Insert, Rectangle Shape, 0.2 in Inscribed Circle, 0.138 in Thickness, 0.374 in Width, 0.2 in Length, WL Chipbreaker, 0.019 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1023 in Diameter Hole, Manufacturers Grade: H13A, ANSI Code: N331.1A-04 35 05H-WLH13A, ISO Code: N331.1A-04 35 05H-WLH13A, Neutral Hand of Insert, Carbide, Uncoated, Material Grade: K, N, S, Cast Iron, Non-Ferrous Metals and Heat Resistant Super Alloys Material Application

Product Number: 826238447

Manufacturer: Sandvik Coromant

Prasdsadice:

$16.91 / EA
Pack10/PK

MFG #: 5738447

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: N331.1A-04 35 05H-WLH13A

Chipbreaker: WL

Corner Radius: 0.019 in

Country of Origin: RU

Finish: Uncoated

Hand of Insert: Neutral

Hole Diameter: 0.1023 in

Inscribed Circle: 0.2 in

Insert Size: 43505

Insert Style: N331.1A..H-WL

ISO Code: N331.1A-04 35 05H-WLH13A

Lead Angle: 90 deg

Length: 0.2 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: H13A

Material: Carbide

Material Application: Cast Iron, Non-Ferrous Metals and Heat Resistant Super Alloys

Material Grade: K, N, S

Rake: Positive

Series: CoroMill 331

Shape: Rectangle

Thickness: 0.138 in

Width: 0.374 in

Application

Light, Side and Face Milling
