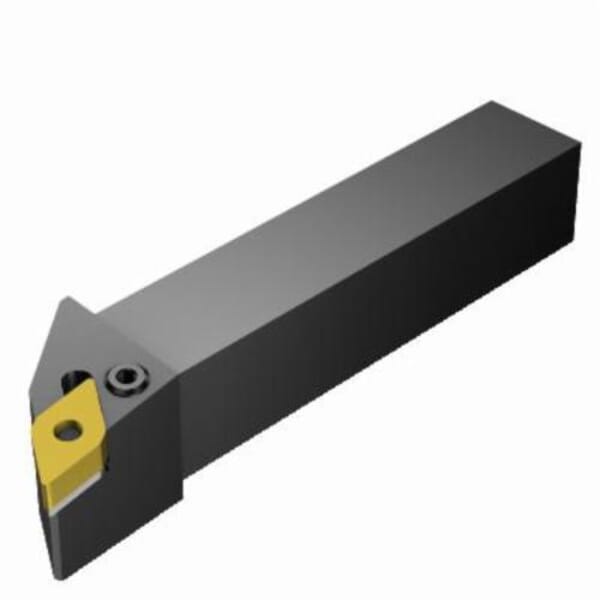

Sandvik Coromant 5738410 T-Max P Shank Tool, ANSI Code: PDJNL 2020K 11, PDJNR/L Tool Holder, DNMG 110408 (MIIDM) and DNMG 332 (MIIDN) Insert, Left Hand Cutting, 0.7874 in H x 0.7874 in W Rectangle Shank, -3 deg Lead Angle, -6 deg Rake, 4.9212 in OAL

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5738410 T-Max P Shank Tool, ANSI Code: PDJNL 2020K 11, PDJNR/L Tool Holder, DNMG 110408 (MIIDM) and DNMG 332 (MIIDN) Insert, Left Hand Cutting, 0.7874 in H x 0.7874 in W Rectangle Shank, -3 deg Lead Angle, -6 deg Rake, 4.9212 in OAL

ManufacturerSandvik Coromant

Part #826238410

MFG #5738410

Sandvik Coromant Shank Tool, Series: T-Max P, PDJNR/L Tool Holder, 4.9212 in Overall Length, Rectangle Shank, 0.7874 in H x 0.7874 in W Shank, Insert Compatibility: DNMG 110408 (MIIDM) and DNMG 332 (MIIDN), 43167 Insert Seat, Left Hand Cutting Direction, -3 deg Lead Angle, ANSI Code: PDJNL 2020K 11, ISO Code: PDJNL 2020K 11, -6 deg Rake, Steel

$170.33

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: PDJNL 2020K 11

Country of Origin: SE

Cutting Direction: Left Hand

Insert Compatibility: DNMG 110408 (MIIDM) and DNMG 332 (MIIDN)

Insert Seat Size: 43167

ISO Code: PDJNL 2020K 11

Lead Angle: -3 deg

Manufacturer Name: Sandvik Coromant

Material: Steel

Overall Length: 4.9212 in

Rake: -6 deg

Series: T-Max P

Shank Size: 0.7874 in H x 0.7874 in W

Shank Type: Rectangle

Tool Holder Style: PDJNR/L

0 deg body machine side
0 deg body workpiece side
Without coolant entry
No coolant exit
-7 deg inclination
93 deg cutting edge
27 deg maximum ramping
20 life cycle state
29.7 mm maximum overhang
2 Nm torque
25 mm W functional
Lever hole clamping
D - 55 deg diamond insert

Turning

Manufacturer Name: Sandvik Coromant

ANSI Code: PDJNL 2020K 11

Country of Origin: SE

Cutting Direction: Left Hand

Insert Compatibility: DNMG 110408 (MIIDM) and DNMG 332 (MIIDN)

Insert Seat Size: 43167

ISO Code: PDJNL 2020K 11

Lead Angle: -3 deg

Manufacturer Name: Sandvik Coromant

Material: Steel

Overall Length: 4.9212 in

Rake: -6 deg

Series: T-Max P

Shank Size: 0.7874 in H x 0.7874 in W

Shank Type: Rectangle

Tool Holder Style: PDJNR/L

0 deg body machine side
0 deg body workpiece side
Without coolant entry
No coolant exit
-7 deg inclination
93 deg cutting edge
27 deg maximum ramping
20 life cycle state
29.7 mm maximum overhang
2 Nm torque
25 mm W functional
Lever hole clamping
D - 55 deg diamond insert

Turning
