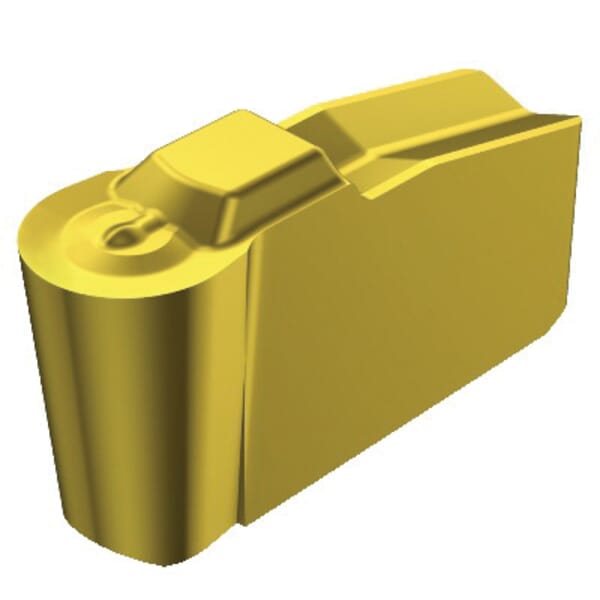

Sandvik Coromant 5738345 T-Max Q-Cut Profiling Insert, ANSI Code: N151.2-450-40-4P 235, N151.2-4P Insert, 40 Insert, Material Grade: M, P, 0.0787 in Max Depth of Cut, Manufacturers Grade: 235

Product Line: Sandvik Coromant

MFG #: 5738345

Sandvik Coromant 5738345 T-Max Q-Cut Profiling Insert, ANSI Code: N151.2-450-40-4P 235, N151.2-4P Insert, 40 Insert, Material Grade: M, P, 0.0787 in Max Depth of Cut, Manufacturers Grade: 235
Sandvik Coromant 5738345 T-Max Q-Cut Profiling Insert, ANSI Code: N151.2-450-40-4P 235, N151.2-4P Insert, 40 Insert, Material Grade: M, P, 0.0787 in Max Depth of Cut, Manufacturers Grade: 235
Sandvik Coromant 5738345 T-Max Q-Cut Profiling Insert, ANSI Code: N151.2-450-40-4P 235, N151.2-4P Insert, 40 Insert, Material Grade: M, P, 0.0787 in Max Depth of Cut, Manufacturers Grade: 235
Sandvik Coromant 5738345 T-Max Q-Cut Profiling Insert, ANSI Code: N151.2-450-40-4P 235, N151.2-4P Insert, 40 Insert, Material Grade: M, P, 0.0787 in Max Depth of Cut, Manufacturers Grade: 235
Sandvik Coromant 5738345 T-Max Q-Cut Profiling Insert, ANSI Code: N151.2-450-40-4P 235, N151.2-4P Insert, 40 Insert, Material Grade: M, P, 0.0787 in Max Depth of Cut, Manufacturers Grade: 235

Your Price

$26.32 / EA
Pack10/PK

Details

Part#826238345

Manufacturer:Sandvik Coromant

MFG #5738345

Sandvik Coromant Profiling Insert, Series: T-Max Q-Cut, N151.2-4P Insert, 40 Insert, 0.0787 in Maximum Depth of Cut, 0.3191 in Thickness, 0.2677 in Length, 4P Chipbreaker, ANSI Code: N151.2-450-40-4P 235, 0.0885 in Corner Radius, Manufacturers Grade: 235, Positive Rake, 7 deg Relief Angle, Neutral Hand, Carbide, CVD-TiCN+TiN Coated, Material Grade: M, P

Specifications

ANSI Code
N151.2-450-40-4P 235
Chipbreaker
4P
Corner Radius
0.0885 in
Country of Origin
US
Finish
CVD-TiCN+TiN Coated
Hand of Insert
Neutral
Insert Size
40
Insert Style
N151.2-4P
Length
0.2677 in
Manufacturer Name
Sandvik Coromant
Manufacturers Grade
235
Material
Carbide
Material Grade
M, P
Maximum Depth of Cut
0.0787 in
Rake
Positive
Relief Angle
7 deg
Series
T-Max Q-Cut
Thickness
0.3191 in

Application

Finishing Operation

Item Features

  • Excellent surface finish due to wiper technology
  • Proven, versatile system
  • Large variety of widths
  • Dedicated geometries and grades for all materials
  • V-clamped 1-edged insert for good stability

Documents

826238345

Sandvik Coromant 5738345 T-Max Q-Cut Profiling Insert, ANSI Code: N151.2-450-40-4P 235, N151.2-4P Insert, 40 Insert, Material Grade: M, P, 0.0787 in Max Depth of Cut, Manufacturers Grade: 235

Description


Sandvik Coromant Profiling Insert, Series: T-Max Q-Cut, N151.2-4P Insert, 40 Insert, 0.0787 in Maximum Depth of Cut, 0.3191 in Thickness, 0.2677 in Length, 4P Chipbreaker, ANSI Code: N151.2-450-40-4P 235, 0.0885 in Corner Radius, Manufacturers Grade: 235, Positive Rake, 7 deg Relief Angle, Neutral Hand, Carbide, CVD-TiCN+TiN Coated, Material Grade: M, P

Product Number: 826238345

Manufacturer: Sandvik Coromant

Prasdsadice:

$26.32 / EA
Pack10/PK

MFG #: 5738345

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: N151.2-450-40-4P 235

Chipbreaker: 4P

Corner Radius: 0.0885 in

Country of Origin: US

Finish: CVD-TiCN+TiN Coated

Hand of Insert: Neutral

Insert Size: 40

Insert Style: N151.2-4P

Length: 0.2677 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 235

Material: Carbide

Material Grade: M, P

Maximum Depth of Cut: 0.0787 in

Rake: Positive

Relief Angle: 7 deg

Series: T-Max Q-Cut

Thickness: 0.3191 in

Item Features

  • Excellent surface finish due to wiper technology
  • Proven, versatile system
  • Large variety of widths
  • Dedicated geometries and grades for all materials
  • V-clamped 1-edged insert for good stability
