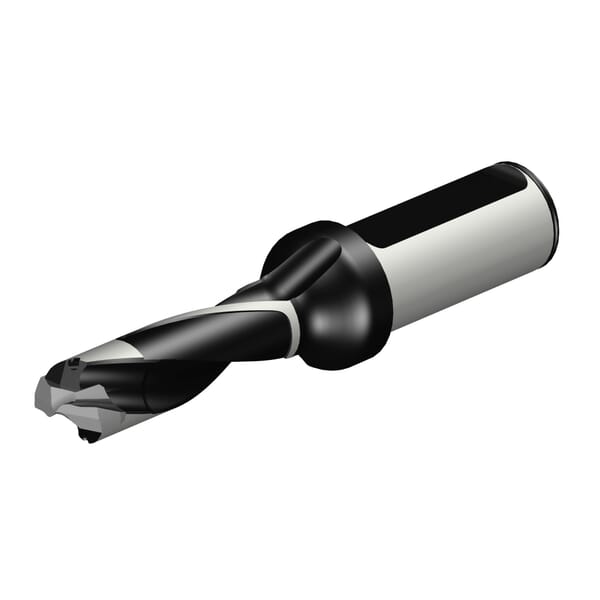

Sandvik Coromant 6035743 CoroDrill 870 Exchangeable Tip Drill, 19 to 19.99 mm Drill, 142 mm OAL, 3.166XD Drill Depth by Dia Ratio, 25 mm Dia Shank

ManufacturerSandvik Coromant

Part #826235743

MFG #6035743

Sandvik Coromant Exchangeable Tip Drill, Series: CoroDrill 870, 19 to 19.99 mm Drill, Cylindrical with Flat Shank, 25 mm Shank Diameter, 59.02 mm Shank Length, 66 mm Flute Length, 142 mm Overall Length, 63.01 mm Maximum Drill Depth, 3.166XD Drill Depth by Diameter Ratio, Yes Through Coolant

Price Not Available

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: SE

Drill Depth by Diameter Ratio: 3.166XD

Drill Size: 19 to 19.99 mm

Flute Length: 66 mm

Manufacturer Name: Sandvik Coromant

Maximum Drill Depth: 63.01 mm

Overall Length: 142 mm

Series: CoroDrill 870

Shank Diameter: 25 mm

Shank Length: 59.02 mm

Shank Type: Cylindrical with Flat

Through Coolant (Yes/No): Yes

870..L-3 tool style
0 deg body half taper
20 life cycle state
Cylindrical/clamping shank
Axial concentric entry
10 bar coolant
Integrated screw clamping
Axial inclined exit
19.9 mm Dia cutting
25 mm Dia connection
20 deg right hand flute
66 mm L body
82.98 mm maximum overhang
3.02 mm L point
30000 r/min
H9 achievable hole tolerance
23 mm H shank
EFW feed direction
19 - 19.99 mm drill
25 mm Dia shank

Manufacturer Name: Sandvik Coromant

Country of Origin: SE

Drill Depth by Diameter Ratio: 3.166XD

Drill Size: 19 to 19.99 mm

Flute Length: 66 mm

Manufacturer Name: Sandvik Coromant

Maximum Drill Depth: 63.01 mm

Overall Length: 142 mm

Series: CoroDrill 870

Shank Diameter: 25 mm

Shank Length: 59.02 mm

Shank Type: Cylindrical with Flat

Through Coolant (Yes/No): Yes

870..L-3 tool style
0 deg body half taper
20 life cycle state
Cylindrical/clamping shank
Axial concentric entry
10 bar coolant
Integrated screw clamping
Axial inclined exit
19.9 mm Dia cutting
25 mm Dia connection
20 deg right hand flute
66 mm L body
82.98 mm maximum overhang
3.02 mm L point
30000 r/min
H9 achievable hole tolerance
23 mm H shank
EFW feed direction
19 - 19.99 mm drill
25 mm Dia shank
