Sandvik Coromant 6035661 CoroDrill 870 Exchangeable Tip Drill, 13.5 to 13.99 mm Drill, 135 mm OAL, 5.188XD Drill Depth by Dia Ratio, 16 mm Dia Shank

ManufacturerSandvik Coromant

Part #826235661

MFG #6035661

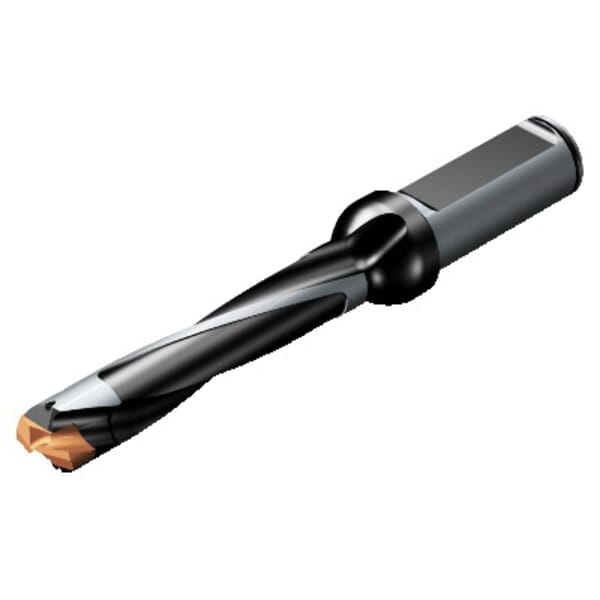

Sandvik Coromant Exchangeable Tip Drill, Series: CoroDrill 870, 13.5 to 13.99 mm Drill, Cylindrical with Flat Shank, 16 mm Shank Diameter, 50.14 mm Shank Length, 74 mm Flute Length, 135 mm Overall Length, 72.11 mm Maximum Drill Depth, 5.188XD Drill Depth by Diameter Ratio, Yes Through Coolant

$513.43

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: SE

Drill Depth by Diameter Ratio: 5.188XD

Drill Size: 13.5 to 13.99 mm

Flute Length: 74 mm

Manufacturer Name: Sandvik Coromant

Maximum Drill Depth: 72.11 mm

Overall Length: 135 mm

Series: CoroDrill 870

Shank Diameter: 16 mm

Shank Length: 50.14 mm

Shank Type: Cylindrical with Flat

Through Coolant (Yes/No): Yes

870..L-5 tool style
0 deg body half taper
20 life cycle state
Cylindrical/clamping shank
Axial concentric entry
10 bar coolant
Integrated screw clamping
Axial inclined exit
13.9 mm Dia cutting
16 mm Dia connection
20 deg right hand flute
74 mm L body
84.86 mm maximum overhang
2.14 mm L point
15000 r/min
H9 achievable hole tolerance
14.2 mm H shank
EFW feed direction
13.5 - 13.99 mm drill
16 mm Dia shank

Manufacturer Name: Sandvik Coromant

Country of Origin: SE

Drill Depth by Diameter Ratio: 5.188XD

Drill Size: 13.5 to 13.99 mm

Flute Length: 74 mm

Manufacturer Name: Sandvik Coromant

Maximum Drill Depth: 72.11 mm

Overall Length: 135 mm

Series: CoroDrill 870

Shank Diameter: 16 mm

Shank Length: 50.14 mm

Shank Type: Cylindrical with Flat

Through Coolant (Yes/No): Yes

870..L-5 tool style
0 deg body half taper
20 life cycle state
Cylindrical/clamping shank
Axial concentric entry
10 bar coolant
Integrated screw clamping
Axial inclined exit
13.9 mm Dia cutting
16 mm Dia connection
20 deg right hand flute
74 mm L body
84.86 mm maximum overhang
2.14 mm L point
15000 r/min
H9 achievable hole tolerance
14.2 mm H shank
EFW feed direction
13.5 - 13.99 mm drill
16 mm Dia shank
