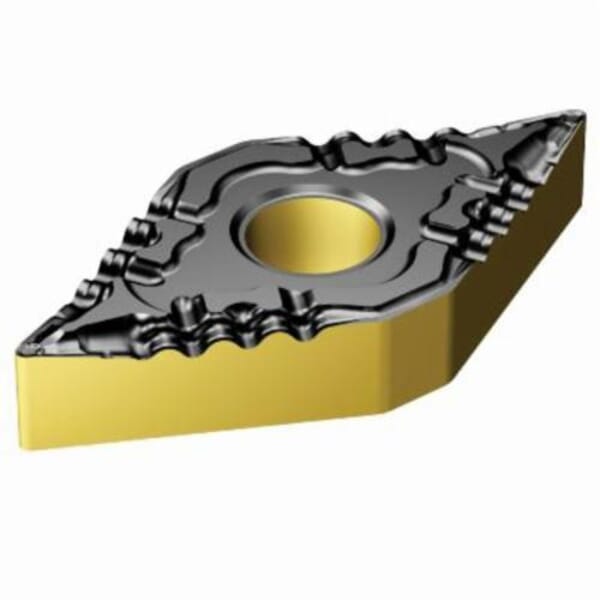

Name: Sandvik Coromant 6533112 T-Max P Turning Insert, ANSI Code: DNMG 433-PF 4315, DNMG Insert, Material Grade: K, P, 433 Insert, Rhombic Shape, 15 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4315
Brand: Sandvik Coromant
SKU: UNISDK003312
Availability: OutOfStock

Sandvik Coromant

Sandvik Coromant 6533112 T-Max P Turning Insert, ANSI Code: DNMG 433-PF 4315, DNMG Insert, Material Grade: K, P, 433 Insert, Rhombic Shape, 15 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4315

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6533112 T-Max P Turning Insert, ANSI Code: DNMG 433-PF 4315, DNMG Insert, Material Grade: K, P, 433 Insert, Rhombic Shape, 15 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4315

ManufacturerSandvik Coromant

Part #826233112

MFG #6533112

Sandvik Coromant Turning Insert, Series: T-Max P, DNMG Insert, 433 Insert, Rhombic, 0.059 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 15 Seat, Negative Rake, PF Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: DNMG 433-PF 4315, ISO Code: DNMG 15 04 12-PF 4315, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, TiCN/Al2O3/TiN, Material Grade: K, P, For Use On: Cast Iron and Steel

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: DNMG 433-PF 4315
Chipbreaker: PF
Corner Radius: 0.0468 in
Country of Origin: SE
Cutting Direction: Neutral
Finish: CVD-TiCN+Al2O3+TiN Coated, TiCN/Al2O3/TiN
For Use On: Cast Iron and Steel
Hole Diameter: 0.2029 in
Included Angle: 55 deg
Inscribed Circle: 1/2 in
Insert Size: 433
Insert Style: DNMG
ISO Code: DNMG 15 04 12-PF 4315
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 4315
Material: Carbide
Material Grade: K, P
Maximum Depth of Cut: 0.059 in
Rake: Negative
Relief Angle: 0 deg
Seat Size: 15
Series: T-Max P
Shape: Rhombic
Thickness: 0.1874 in
: Sandvik Coromant Turning Insert, Series: T-Max P, DNMG Insert, 433 Insert, Rhombic, 0.059 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 15 Seat, Negative Rake, PF Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: DNMG 433-PF 4315, ISO Code: DNMG 15 04 12-PF 4315, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, TiCN/Al2O3/TiN, Material Grade: K, P, For Use On: Cast Iron and Steel
: SDS

: Manufacturer Name: Sandvik Coromant
ANSI Code: DNMG 433-PF 4315
Chipbreaker: PF
Corner Radius: 0.0468 in
Country of Origin: SE
Cutting Direction: Neutral
Finish: CVD-TiCN+Al2O3+TiN Coated, TiCN/Al2O3/TiN
For Use On: Cast Iron and Steel
Hole Diameter: 0.2029 in
Included Angle: 55 deg
Inscribed Circle: 1/2 in
Insert Size: 433
Insert Style: DNMG
ISO Code: DNMG 15 04 12-PF 4315
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 4315
Material: Carbide
Material Grade: K, P
Maximum Depth of Cut: 0.059 in
Rake: Negative
Relief Angle: 0 deg
Seat Size: 15
Series: T-Max P
Shape: Rhombic
Thickness: 0.1874 in
: Sandvik Coromant Turning Insert, Series: T-Max P, DNMG Insert, 433 Insert, Rhombic, 0.059 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 15 Seat, Negative Rake, PF Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: DNMG 433-PF 4315, ISO Code: DNMG 15 04 12-PF 4315, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, TiCN/Al2O3/TiN, Material Grade: K, P, For Use On: Cast Iron and Steel
: SDS
