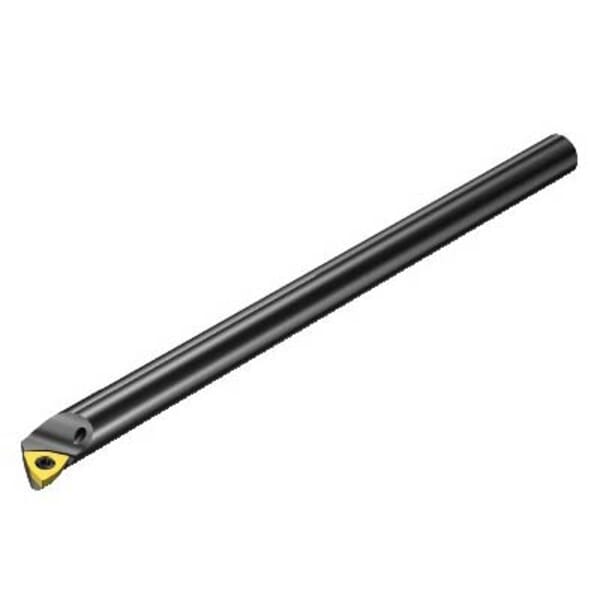

Name: Sandvik Coromant 5731623 CoroTurn 111 Indexable Boring Bar, E..SWLPL -R Toolholder, 0.323 in Dia Min Bore, Left Hand of Holder, 4 in OAL
Brand: Sandvik Coromant
SKU: UNISDK027470
Availability: OutOfStock

Sandvik Coromant

Sandvik Coromant 5731623 CoroTurn 111 Indexable Boring Bar, E..SWLPL -R Toolholder, 0.323 in Dia Min Bore, Left Hand of Holder, 4 in OAL

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5731623 CoroTurn 111 Indexable Boring Bar, E..SWLPL -R Toolholder, 0.323 in Dia Min Bore, Left Hand of Holder, 4 in OAL

ManufacturerSandvik Coromant

Part #826231623

MFG #5731623

Sandvik Coromant Indexable Boring Bar, Series: CoroTurn 111, 0.323 in Minimum Bore, 1-1/2 in Maximum Bore Depth, 4 in Overall Length, 1/4 in Shank Diameter, Cylindrical Shank, Left Hand of Holder, E..SWLPL -R Toolholder, Insert Compatibility: WPMT 02 01 02, Trigon Insert, 0.156 in Inscribed Circle, 5763172 Insert Screw, 0.062 in Insert Thickness, Carbide, Yes Through Coolant

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: US

Hand of Holder: Left

Inscribed Circle: 0.156 in

Insert Compatibility: WPMT 02 01 02

Insert Screw: 5763172

Insert Shape: Triangle, Trigon

Insert Thickness: 0.062 in

Manufacturer Name: Sandvik Coromant

Material: Carbide

Maximum Bore Depth: 1-1/2 in

Minimum Bore Diameter: 0.323 in

Overall Length: 4 in

Series: CoroTurn 111

Shank Diameter: 1/4 in

Shank Type: Cylindrical

Through Coolant (Yes/No): Yes

Toolholder Type: E..SWLPL -R

5763172 Insert Screw and 5764138 Key

Secure insert clamping
Excellent repeatability
Free chip flow
Low cutting forces
Excellent edge strength
11 deg clearance angle
Positive insert shape
Screw clamping ensures stability and unobstructed chip flow
Tools with high pressure coolant
Insert geometries and grades for all materials
Internal turning with long overhangs or unstable conditions

CoroTurn 111 is a versatile system with inserts geometries and grades for all materials. It is a real problem solver when you want to avoid vibrations at long overhangs and unstable conditions.

5763172 Insert Screw and 5764138 Key

Catalog

SDS

Manufacturer Name: Sandvik Coromant

Country of Origin: US

Hand of Holder: Left

Inscribed Circle: 0.156 in

Insert Compatibility: WPMT 02 01 02

Insert Screw: 5763172

Insert Shape: Triangle, Trigon

Insert Thickness: 0.062 in

Manufacturer Name: Sandvik Coromant

Material: Carbide

Maximum Bore Depth: 1-1/2 in

Minimum Bore Diameter: 0.323 in

Overall Length: 4 in

Series: CoroTurn 111

Shank Diameter: 1/4 in

Shank Type: Cylindrical

Through Coolant (Yes/No): Yes

Toolholder Type: E..SWLPL -R

5763172 Insert Screw and 5764138 Key

Secure insert clamping
Excellent repeatability
Free chip flow
Low cutting forces
Excellent edge strength
11 deg clearance angle
Positive insert shape
Screw clamping ensures stability and unobstructed chip flow
Tools with high pressure coolant
Insert geometries and grades for all materials
Internal turning with long overhangs or unstable conditions

CoroTurn 111 is a versatile system with inserts geometries and grades for all materials. It is a real problem solver when you want to avoid vibrations at long overhangs and unstable conditions.

5763172 Insert Screw and 5764138 Key

Catalog

SDS
