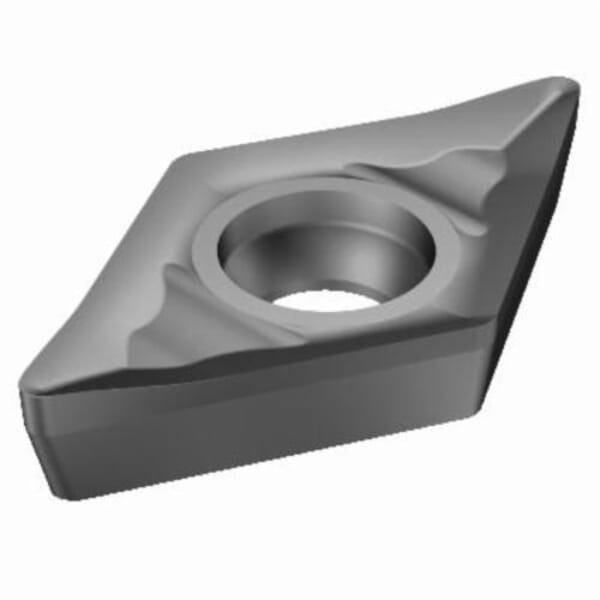

Name: Sandvik Coromant 5730469 CoroTurn 107 Turning Insert, ANSI Code: DCGX 3(2.5)1-AL H10, DCGX Insert, Material Grade: N, 3(2.5)1 Insert, Diamond Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Non-Ferrous Metals, Carbide, Manufacturers Grade: H10
Brand: Sandvik Coromant
SKU: UNISDK005952
Availability: OutOfStock

Sandvik Coromant

Sandvik Coromant 5730469 CoroTurn 107 Turning Insert, ANSI Code: DCGX 3(2.5)1-AL H10, DCGX Insert, Material Grade: N, 3(2.5)1 Insert, Diamond Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Non-Ferrous Metals, Carbide, Manufacturers Grade: H10

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Sandvik Coromant

Sandvik Coromant 5730469 CoroTurn 107 Turning Insert, ANSI Code: DCGX 3(2.5)1-AL H10, DCGX Insert, Material Grade: N, 3(2.5)1 Insert, Diamond Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Non-Ferrous Metals, Carbide, Manufacturers Grade: H10

ManufacturerSandvik Coromant

Part #826230469

MFG #5730469

Sandvik Coromant Turning Insert, Series: CoroTurn 107, DCGX Insert, 3(2.5)1 Insert, Diamond, 5.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 11 Seat, Positive Rake, AL Chipbreaker, 0.016 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: H10, ANSI Code: DCGX 3(2.5)1-AL H10, ISO Code: DCGX 11 T3 04-AL H10, 55 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: N, For Use On: Non-Ferrous Metals

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: DCGX 3(2.5)1-AL H10

Chipbreaker: AL

Corner Radius: 0.016 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: Uncoated

For Use On: Non-Ferrous Metals

Hole Diameter: 0.1732 in

Included Angle: 55 deg

Inscribed Circle: 3/8 in

Insert Size: 3(2.5)1

Insert Style: DCGX

ISO Code: DCGX 11 T3 04-AL H10

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: H10

Material: Carbide

Material Grade: N

Maximum Depth of Cut: 5.5 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 11

Series: CoroTurn 107

Shape: Diamond

Thickness: 0.1562 in

When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Wiper geometries available for high feeds and high quality surface finish
Ground, super sharp insert offer for exceptional surface finish

Sandvik Coromant Turning Insert, Series: CoroTurn 107, DCGX Insert, 3(2.5)1 Insert, Diamond, 5.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 11 Seat, Positive Rake, AL Chipbreaker, 0.016 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: H10, ANSI Code: DCGX 3(2.5)1-AL H10, ISO Code: DCGX 11 T3 04-AL H10, 55 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: N, For Use On: Non-Ferrous Metals

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: DCGX 3(2.5)1-AL H10

Chipbreaker: AL

Corner Radius: 0.016 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: Uncoated

For Use On: Non-Ferrous Metals

Hole Diameter: 0.1732 in

Included Angle: 55 deg

Inscribed Circle: 3/8 in

Insert Size: 3(2.5)1

Insert Style: DCGX

ISO Code: DCGX 11 T3 04-AL H10

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: H10

Material: Carbide

Material Grade: N

Maximum Depth of Cut: 5.5 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 11

Series: CoroTurn 107

Shape: Diamond

Thickness: 0.1562 in

When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Wiper geometries available for high feeds and high quality surface finish
Ground, super sharp insert offer for exceptional surface finish

Sandvik Coromant Turning Insert, Series: CoroTurn 107, DCGX Insert, 3(2.5)1 Insert, Diamond, 5.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 11 Seat, Positive Rake, AL Chipbreaker, 0.016 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: H10, ANSI Code: DCGX 3(2.5)1-AL H10, ISO Code: DCGX 11 T3 04-AL H10, 55 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: N, For Use On: Non-Ferrous Metals

SDS

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Sandvik CoromantSandvik Coromant 5730469 CoroTurn 107 Turning Insert, ANSI Code: DCGX 3(2.5)1-AL H10, DCGX Insert, Material Grade: N, 3(2.5)1 Insert, Diamond Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Non-Ferrous Metals, Carbide, Manufacturers Grade: H10

Part #:826230469

MFG #:5730469

$ / EA

QTY
