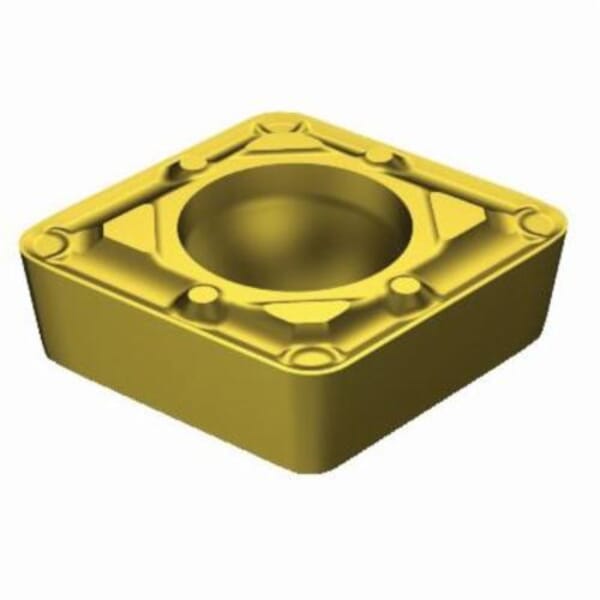

Name: Sandvik Coromant 5724280 CoroTurn 107 Turning Insert, ANSI Code: CCMT 2(1.5)2-WF 3005, CCMT Insert, Material Grade: K, 2(1.5)2 Insert, Diamond Shape, 06 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron, Carbide, Manufacturers Grade: 3005
Brand: Sandvik Coromant
SKU: UNISDK004106
Availability: OutOfStock

Sandvik Coromant

Sandvik Coromant 5724280 CoroTurn 107 Turning Insert, ANSI Code: CCMT 2(1.5)2-WF 3005, CCMT Insert, Material Grade: K, 2(1.5)2 Insert, Diamond Shape, 06 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron, Carbide, Manufacturers Grade: 3005

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Sandvik Coromant

Sandvik Coromant 5724280 CoroTurn 107 Turning Insert, ANSI Code: CCMT 2(1.5)2-WF 3005, CCMT Insert, Material Grade: K, 2(1.5)2 Insert, Diamond Shape, 06 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron, Carbide, Manufacturers Grade: 3005

ManufacturerSandvik Coromant

Part #826224280

MFG #5724280

Sandvik Coromant Turning Insert, Series: CoroTurn 107, CCMT Insert, 2(1.5)2 Insert, Diamond, 2 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.0937 in Thickness, 06 Seat, Positive Rake, WF Chipbreaker, 0.0312 in Corner Radius, 0.1102 in Hole Dia, Manufacturers Grade: 3005, ANSI Code: CCMT 2(1.5)2-WF 3005, ISO Code: CCMT 06 02 08-WF 3005, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, TiCN/Al2O3/TiN, Material Grade: K, For Use On: Cast Iron

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: CCMT 2(1.5)2-WF 3005

Chipbreaker: WF

Corner Radius: 0.0312 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated, TiCN/Al2O3/TiN

For Use On: Cast Iron

Hole Diameter: 0.1102 in

Included Angle: 80 deg

Inscribed Circle: 1/4 in

Insert Size: 2(1.5)2

Insert Style: CCMT

ISO Code: CCMT 06 02 08-WF 3005

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 3005

Material: Carbide

Material Grade: K

Maximum Depth of Cut: 2 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 06

Series: CoroTurn 107

Shape: Diamond

Thickness: 0.0937 in

When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
Wiper geometries available for high feeds and high quality surface finish

Sandvik Coromant Turning Insert, Series: CoroTurn 107, CCMT Insert, 2(1.5)2 Insert, Diamond, 2 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.0937 in Thickness, 06 Seat, Positive Rake, WF Chipbreaker, 0.0312 in Corner Radius, 0.1102 in Hole Dia, Manufacturers Grade: 3005, ANSI Code: CCMT 2(1.5)2-WF 3005, ISO Code: CCMT 06 02 08-WF 3005, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, TiCN/Al2O3/TiN, Material Grade: K, For Use On: Cast Iron

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: CCMT 2(1.5)2-WF 3005

Chipbreaker: WF

Corner Radius: 0.0312 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated, TiCN/Al2O3/TiN

For Use On: Cast Iron

Hole Diameter: 0.1102 in

Included Angle: 80 deg

Inscribed Circle: 1/4 in

Insert Size: 2(1.5)2

Insert Style: CCMT

ISO Code: CCMT 06 02 08-WF 3005

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 3005

Material: Carbide

Material Grade: K

Maximum Depth of Cut: 2 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 06

Series: CoroTurn 107

Shape: Diamond

Thickness: 0.0937 in

When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
Wiper geometries available for high feeds and high quality surface finish

Sandvik Coromant Turning Insert, Series: CoroTurn 107, CCMT Insert, 2(1.5)2 Insert, Diamond, 2 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.0937 in Thickness, 06 Seat, Positive Rake, WF Chipbreaker, 0.0312 in Corner Radius, 0.1102 in Hole Dia, Manufacturers Grade: 3005, ANSI Code: CCMT 2(1.5)2-WF 3005, ISO Code: CCMT 06 02 08-WF 3005, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, TiCN/Al2O3/TiN, Material Grade: K, For Use On: Cast Iron

SDS
