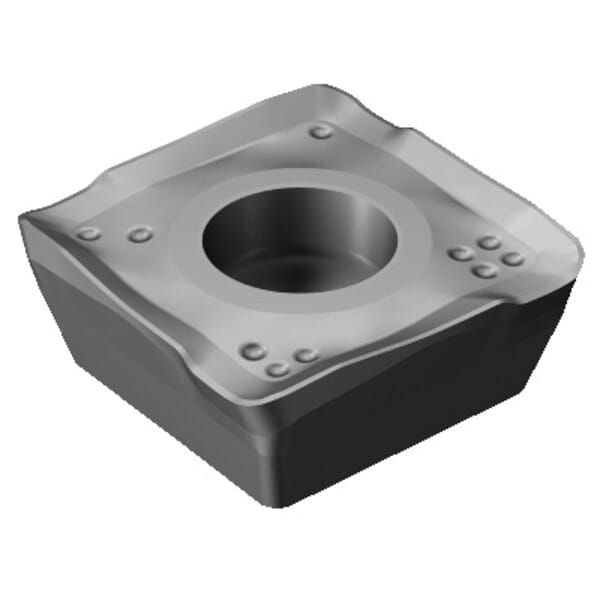

Sandvik Coromant 5922172 CoroMill 490 Milling Insert, ANSI Code: 490R-08T308E-ML H13A, 490R/L..E-ML Insert, 08T308 Insert, Carbide, Manufacturers Grade: H13A, Squared Shape, Material Grade: N

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5922172 CoroMill 490 Milling Insert, ANSI Code: 490R-08T308E-ML H13A, 490R/L..E-ML Insert, 08T308 Insert, Carbide, Manufacturers Grade: H13A, Squared Shape, Material Grade: N

ManufacturerSandvik Coromant

Part #826222172

MFG #5922172

Sandvik Coromant Milling Insert, Series: CoroMill 490, 490R/L..E-ML Insert, 08T308 Insert, Squared, 0.335 in Inscribed Circle, 0.13 in Thickness, 0.335 in Width, 0.335 in Length, ML Chipbreaker, 0.031 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1102 in Hole Dia, Manufacturers Grade: H13A, ANSI Code: 490R-08T308E-ML H13A, ISO Code: 490R-08T308E-ML H13A, Right Hand, Carbide, Uncoated, Material Grade: N, Non-Ferrous Metals Material Application

$24.13

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: 490R-08T308E-ML H13A
Chipbreaker: ML
Corner Radius: 0.031 in
Country of Origin: SE
Finish: Uncoated
Hand of Insert: Right
Hole Diameter: 0.1102 in
Inscribed Circle: 0.335 in
Insert Size: 08T308
Insert Style: 490R/L..E-ML
ISO Code: 490R-08T308E-ML H13A
Lead Angle: 90 deg
Length: 0.335 in
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: H13A
Material: Carbide
Material Application: Non-Ferrous Metals
Material Grade: N
Rake: Positive
Series: CoroMill 490
Shape: Squared
Thickness: 0.13 in
Width: 0.335 in
: Light Applications
