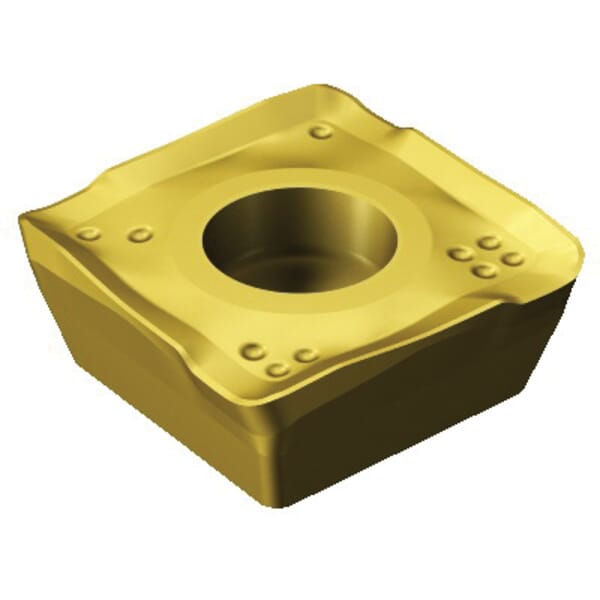

Sandvik Coromant 5922154 CoroMill 490 Milling Insert, ANSI Code: 490R-140416M-PM 1020, 490R/L..M-PM Insert, 140416 Insert, Carbide, Manufacturers Grade: 1020, Squared Shape, Material Grade: K

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5922154 CoroMill 490 Milling Insert, ANSI Code: 490R-140416M-PM 1020, 490R/L..M-PM Insert, 140416 Insert, Carbide, Manufacturers Grade: 1020, Squared Shape, Material Grade: K

ManufacturerSandvik Coromant

Part #826222154

MFG #5922154

Sandvik Coromant Milling Insert, Series: CoroMill 490, 490R/L..M-PM Insert, 140416 Insert, Squared, 0.543 in Inscribed Circle, 0.154 in Thickness, 0.543 in Width, 0.543 in Length, PM Chipbreaker, 0.063 in Corner Radius, Positive Rake, 90 deg Lead Angle, 0.1614 in Hole Dia, Manufacturers Grade: 1020, ANSI Code: 490R-140416M-PM 1020, ISO Code: 490R-140416M-PM 1020, Right Hand, Carbide, PVD-TiAlN Coated, Material Grade: K, Cast Iron Material Application

$27.37

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: 490R-140416M-PM 1020
Chipbreaker: PM
Corner Radius: 0.063 in
Country of Origin: SE
Finish: PVD-TiAlN Coated
Hand of Insert: Right
Hole Diameter: 0.1614 in
Inscribed Circle: 0.543 in
Insert Size: 140416
Insert Style: 490R/L..M-PM
ISO Code: 490R-140416M-PM 1020
Lead Angle: 90 deg
Length: 0.543 in
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 1020
Material: Carbide
Material Application: Cast Iron
Material Grade: K
Rake: Positive
Series: CoroMill 490
Shape: Squared
Thickness: 0.154 in
Width: 0.543 in
: Medium Applications
: SDS

: Manufacturer Name: Sandvik Coromant
ANSI Code: 490R-140416M-PM 1020
Chipbreaker: PM
Corner Radius: 0.063 in
Country of Origin: SE
Finish: PVD-TiAlN Coated
Hand of Insert: Right
Hole Diameter: 0.1614 in
Inscribed Circle: 0.543 in
Insert Size: 140416
Insert Style: 490R/L..M-PM
ISO Code: 490R-140416M-PM 1020
Lead Angle: 90 deg
Length: 0.543 in
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 1020
Material: Carbide
Material Application: Cast Iron
Material Grade: K
Rake: Positive
Series: CoroMill 490
Shape: Squared
Thickness: 0.154 in
Width: 0.543 in
: Medium Applications
: SDS
