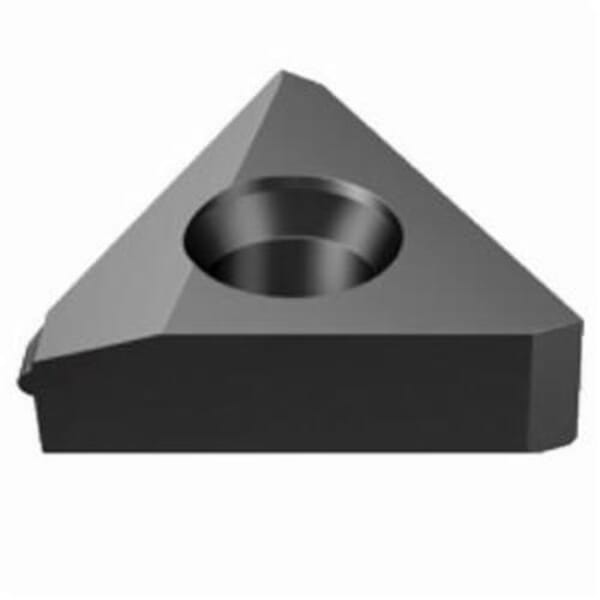

Sandvik Coromant 5919024 CoroMill 325 Thread Whirling Insert, ANSI Code: 325R16-275HBF01 1105, 325 Insert, Triangular Shape, External Thread, HB Thread, 2.75 mm Pitch, Right Hand Cutting, Manufacturer's Grade: 1105, Material Grade: H, K, M, N, P, S
Manufacturer: Sandvik Coromant
MFG #: 5919024
Sandvik Coromant 5919024 CoroMill 325 Thread Whirling Insert, ANSI Code: 325R16-275HBF01 1105, 325 Insert, Triangular Shape, External Thread, HB Thread, 2.75 mm Pitch, Right Hand Cutting, Manufacturer's Grade: 1105, Material Grade: H, K, M, N, P, S
Sandvik Coromant 5919024 CoroMill 325 Thread Whirling Insert, ANSI Code: 325R16-275HBF01 1105, 325 Insert, Triangular Shape, External Thread, HB Thread, 2.75 mm Pitch, Right Hand Cutting, Manufacturer's Grade: 1105, Material Grade: H, K, M, N, P, S
Sandvik Coromant 5919024 CoroMill 325 Thread Whirling Insert, ANSI Code: 325R16-275HBF01 1105, 325 Insert, Triangular Shape, External Thread, HB Thread, 2.75 mm Pitch, Right Hand Cutting, Manufacturer's Grade: 1105, Material Grade: H, K, M, N, P, S
Sandvik Coromant 5919024 CoroMill 325 Thread Whirling Insert, ANSI Code: 325R16-275HBF01 1105, 325 Insert, Triangular Shape, External Thread, HB Thread, 2.75 mm Pitch, Right Hand Cutting, Manufacturer's Grade: 1105, Material Grade: H, K, M, N, P, S

Your Price

$94.50 / EA
Pack10/PK
Available for Purchase
Available for Purchase
Sandvik Coromant 5919024 CoroMill 325 Thread Whirling Insert, ANSI Code: 325R16-275HBF01 1105, 325 Insert, Triangular Shape, External Thread, HB Thread, 2.75 mm Pitch, Right Hand Cutting, Manufacturer's Grade: 1105, Material Grade: H, K, M, N, P, S
Manufacturer: Sandvik Coromant
MFG #: 5919024

Your Price

$94.50 / EA
Pack10/PK

Details

Part#826219024

Manufacturer:Sandvik Coromant

MFG #5919024

Sandvik Coromant Thread Whirling Insert, Series: CoroMill 325, 325 Insert, 16 Insert, Triangular, External, HB, 2.75 mm Pitch, 3/8 in Inscribed Circle, ANSI Code: 325R16-275HBF01 1105, ISO Code: 325R16-275HBF01 1105, HB Chipbreaker, Positive Rake, Manufacturer's Grade: 1105, Right Hand Cutting, Carbide, PVD-AlTiN Coated, Material Grade: H, K, M, N, P, S

Specifications

ANSI Code
325R16-275HBF01 1105
Chipbreaker
HB
Cutting Direction
Right Hand
Finish
PVD-AlTiN Coated
ISO Code
325R16-275HBF01 1105
Inscribed Circle
3/8 in
Insert Size
16
Insert Style
325
Manufacturer's Grade
1105
Material
Carbide
Material Grade
H, K, M, N, P, S
Pitch
2.75 mm
Rake
Positive
Series
CoroMill 325, CoroMill® 325
Shape
Triangular
Thread Standard
HB
Thread Type
External

Item Features

  • Increased productivity - single pass machining from stock diameter reduces cycle time by minutes
  • No additional finishing operation is needed
  • Optimized for titanium and stainless steel
  • Blanks and engineered designs available for own unique profiles
  • Chip control is superior to single point threading, enabling more continuous and productive machining
  • Increased tool life - thread whirling inserts have stronger cutting edges than single point tools
  • Cost saving - finishing treatment is not required after thread whirling, unlike single point threading
  • Multi-inserts apply even cutting pressure on long, slender components - creating high precision thread forms without bending
  • Reduce downtime by eliminating the need to match rough and finish insert forms and special support devices
  • Deeper thread forms (such as Acme) can be achieved more easily
  • High quality threads
  • Compatible with many sliding head machines and spindles

Documents

826219024

Sandvik Coromant 5919024 CoroMill 325 Thread Whirling Insert, ANSI Code: 325R16-275HBF01 1105, 325 Insert, Triangular Shape, External Thread, HB Thread, 2.75 mm Pitch, Right Hand Cutting, Manufacturer's Grade: 1105, Material Grade: H, K, M, N, P, S

Description


Sandvik Coromant Thread Whirling Insert, Series: CoroMill 325, 325 Insert, 16 Insert, Triangular, External, HB, 2.75 mm Pitch, 3/8 in Inscribed Circle, ANSI Code: 325R16-275HBF01 1105, ISO Code: 325R16-275HBF01 1105, HB Chipbreaker, Positive Rake, Manufacturer's Grade: 1105, Right Hand Cutting, Carbide, PVD-AlTiN Coated, Material Grade: H, K, M, N, P, S

Product Number: 826219024

Manufacturer: Sandvik Coromant

Price:

$94.50 / EA
Pack10/PK

MFG #: 5919024

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: 325R16-275HBF01 1105

Chipbreaker: HB

Cutting Direction: Right Hand

Finish: PVD-AlTiN Coated

ISO Code: 325R16-275HBF01 1105

Inscribed Circle: 3/8 in

Insert Size: 16

Insert Style: 325

Manufacturer's Grade: 1105

Material: Carbide

Material Grade: H, K, M, N, P, S

Pitch: 2.75 mm

Rake: Positive

Series: CoroMill 325, CoroMill® 325

Shape: Triangular

Thread Standard: HB

Thread Type: External

Item Features

  • Increased productivity - single pass machining from stock diameter reduces cycle time by minutes
  • No additional finishing operation is needed
  • Optimized for titanium and stainless steel
  • Blanks and engineered designs available for own unique profiles
  • Chip control is superior to single point threading, enabling more continuous and productive machining
  • Increased tool life - thread whirling inserts have stronger cutting edges than single point tools
  • Cost saving - finishing treatment is not required after thread whirling, unlike single point threading
  • Multi-inserts apply even cutting pressure on long, slender components - creating high precision thread forms without bending
  • Reduce downtime by eliminating the need to match rough and finish insert forms and special support devices
  • Deeper thread forms (such as Acme) can be achieved more easily
  • High quality threads
  • Compatible with many sliding head machines and spindles
