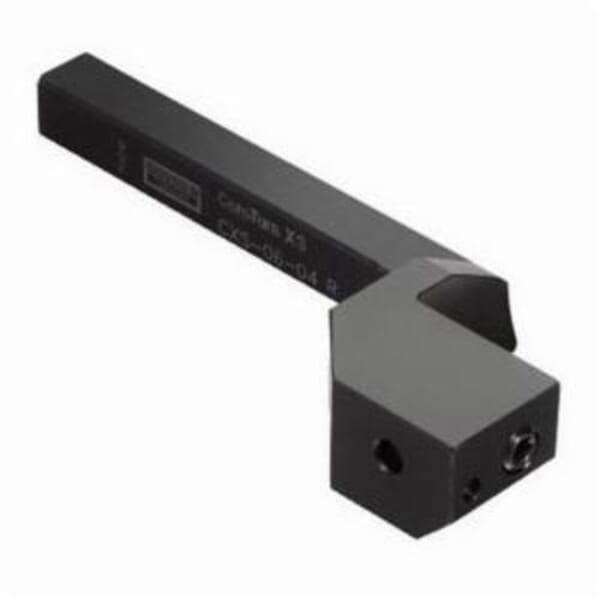

Name: Sandvik Coromant 5726851 CoroTurn XS Rectangular Shank Boring Bar Adapter, CXS..R Tool Holder, Right Hand Cutting
Brand: Sandvik Coromant
SKU: UNISDK022121
Availability: OutOfStock

Sandvik Coromant

Sandvik Coromant 5726851 CoroTurn XS Rectangular Shank Boring Bar Adapter, CXS..R Tool Holder, Right Hand Cutting

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5726851 CoroTurn XS Rectangular Shank Boring Bar Adapter, CXS..R Tool Holder, Right Hand Cutting

ManufacturerSandvik Coromant

Part #826216030

MFG #5726851

Sandvik Coromant Boring Bar Adapter, Rectangular Shank, Series: Y6, 1/2 in Shank Width, Right Hand Cutting, 3.897 in Overall Length, CXS..R Tool Holder, ANSI Code: CXS-08-04R, ISO Code: CXS-08-04R, 5763221 Insert Screw, 1/2 in Shank Height, 0.748 in Head Height

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: CXS-08-04R

Country of Origin: TR

Cutting Direction: Right Hand

Head Height: 0.748 in

Insert Screw: 5763221

ISO Code: CXS-08-04R

Manufacturer Name: Sandvik Coromant

Overall Length: 3.897 in

Series: CoroTurn XS

Shank Height: 1/2 in

Shank Width: 1/2 in

Tool Holder Style: CXS..R

Type: Rectangular Shank

Optimized for machining of small high-quality features
High precision and repeatability
Reliable and easy-to-use clamping system
Solid carbide boring bar fits precisely into the adapter with a locating pin
Rigid clamping with increased stability with collet clamped adapters
Precision ground tools for high repeatability
Longer tool life by minimized micro vibrations
Clamping nut ensures easy change of cutting tool
Adapters are designed with internal coolant supply
Collet clamped adapters have selectable coolant direction for better chip evacuation and safe machining

5764130 Key

For internal turning, grooving, profiling and threading in all materials, face grooving and finishing applications

Manufacturer Name: Sandvik Coromant

ANSI Code: CXS-08-04R

Country of Origin: TR

Cutting Direction: Right Hand

Head Height: 0.748 in

Insert Screw: 5763221

ISO Code: CXS-08-04R

Manufacturer Name: Sandvik Coromant

Overall Length: 3.897 in

Series: CoroTurn XS

Shank Height: 1/2 in

Shank Width: 1/2 in

Tool Holder Style: CXS..R

Type: Rectangular Shank

Optimized for machining of small high-quality features
High precision and repeatability
Reliable and easy-to-use clamping system
Solid carbide boring bar fits precisely into the adapter with a locating pin
Rigid clamping with increased stability with collet clamped adapters
Precision ground tools for high repeatability
Longer tool life by minimized micro vibrations
Clamping nut ensures easy change of cutting tool
Adapters are designed with internal coolant supply
Collet clamped adapters have selectable coolant direction for better chip evacuation and safe machining

5764130 Key

For internal turning, grooving, profiling and threading in all materials, face grooving and finishing applications
