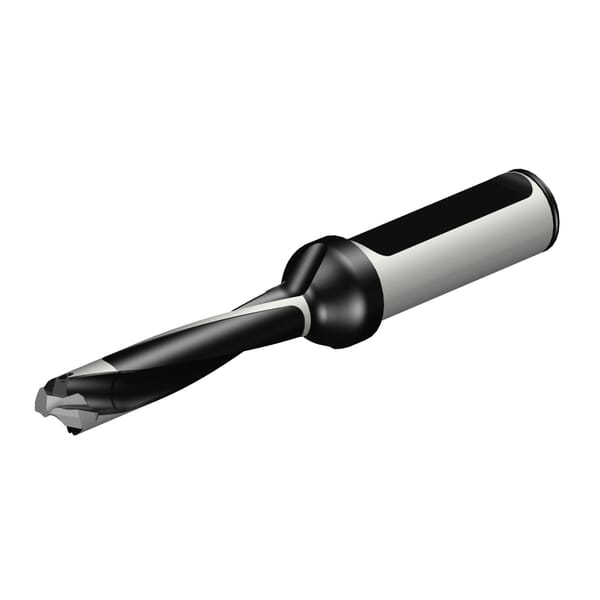

Sandvik Coromant 6035615 CoroDrill 870 Exchangeable Tip Drill, 11 to 11.49 mm Drill, 122 mm OAL, 5.194XD Drill Depth by Dia Ratio, 16 mm Dia Shank
Manufacturer: Sandvik Coromant
MFG #: 6035615
Your Price
$356.18 / EA
Pack: 1/PK
Sandvik Coromant 6035615 CoroDrill 870 Exchangeable Tip Drill, 11 to 11.49 mm Drill, 122 mm OAL, 5.194XD Drill Depth by Dia Ratio, 16 mm Dia Shank
Manufacturer: Sandvik Coromant
MFG #: 6035615
Your Price
$356.18 / EA
Pack: 1/PK
Sandvik Coromant 6035615 CoroDrill 870 Exchangeable Tip Drill, 11 to 11.49 mm Drill, 122 mm OAL, 5.194XD Drill Depth by Dia Ratio, 16 mm Dia Shank
Description
Sandvik Coromant Exchangeable Tip Drill, Series: CoroDrill 870, 11 to 11.49 mm Drill, Cylindrical with Flat Shank, 16 mm Shank Diameter, 49.75 mm Shank Length, 61 mm Flute Length, 122 mm Overall Length, 59.21 mm Maximum Drill Depth, 5.194XD Drill Depth by Diameter Ratio, Yes Through Coolant
Product Number: 826215187
Manufacturer: Sandvik Coromant
Price:
$356.18 / EA
Pack: 1/PK
MFG #: 6035615
Manufacturer: Sandvik Coromant
Specifications
Drill Depth by Diameter Ratio: 5.194XD
Drill Size: 11 to 11.49 mm
Flute Length: 61 mm
Maximum Drill Depth: 59.21 mm
Overall Length: 122 mm
Series: CoroDrill 870, CoroDrill® 870
Shank Diameter: 16 mm
Shank Length: 49.75 mm
Shank Type: Cylindrical with Flat
Through Coolant (Yes/No): Yes
Item Features
- 870..L-5 tool style
- 16 mm Dia connection
- 20 deg right hand flute
- 61 mm L body
- 72.25 mm maximum overhang
- 1.75 mm L point
- 15000 r/min
- H9 achievable hole tolerance
- 14.2 mm H shank
- EFW feed direction
- 11 - 11.49 mm drill
- 0 deg body half taper
- 16 mm Dia shank
- 20 life cycle state
- Cylindrical/clamping shank
- Axial concentric entry
- 10 bar coolant
- Integrated screw clamping
- Axial inclined exit
- 11.4 mm Dia cutting
