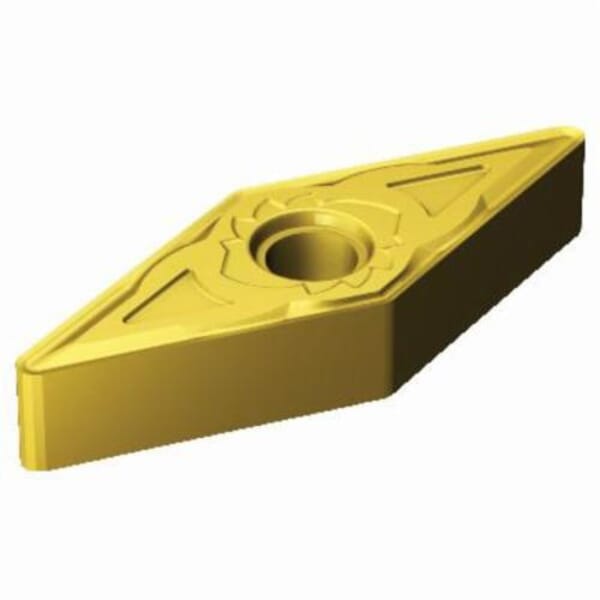

Sandvik Coromant 5915144 T-Max P 2-Sided Basic Shape Turning Insert, ANSI Code: VNMG 332-SM S05F, VNMG Insert, Material Grade: S, 332 Insert, Diamond Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Heat Resistant Super Alloys, Carbide
Manufacturer: Sandvik Coromant
MFG #: 5915144
Sandvik Coromant 5915144 T-Max P 2-Sided Basic Shape Turning Insert, ANSI Code: VNMG 332-SM S05F, VNMG Insert, Material Grade: S, 332 Insert, Diamond Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Heat Resistant Super Alloys, Carbide
Sandvik Coromant 5915144 T-Max P 2-Sided Basic Shape Turning Insert, ANSI Code: VNMG 332-SM S05F, VNMG Insert, Material Grade: S, 332 Insert, Diamond Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Heat Resistant Super Alloys, Carbide
Sandvik Coromant 5915144 T-Max P 2-Sided Basic Shape Turning Insert, ANSI Code: VNMG 332-SM S05F, VNMG Insert, Material Grade: S, 332 Insert, Diamond Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Heat Resistant Super Alloys, Carbide
Sandvik Coromant 5915144 T-Max P 2-Sided Basic Shape Turning Insert, ANSI Code: VNMG 332-SM S05F, VNMG Insert, Material Grade: S, 332 Insert, Diamond Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Heat Resistant Super Alloys, Carbide

Your Price

$26.13 / EA
Pack10/PK
Available for Purchase
Available for Purchase
Sandvik Coromant 5915144 T-Max P 2-Sided Basic Shape Turning Insert, ANSI Code: VNMG 332-SM S05F, VNMG Insert, Material Grade: S, 332 Insert, Diamond Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Heat Resistant Super Alloys, Carbide
Manufacturer: Sandvik Coromant
MFG #: 5915144

Your Price

$26.13 / EA
Pack10/PK

Details

Part#826215144

Manufacturer:Sandvik Coromant

MFG #5915144

Sandvik Coromant Turning Insert, 2-Sided Basic Shape, Series: T-Max P, VNMG Insert, 332 Insert, Diamond, 2.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.187 in Thickness, 0.6537 in Length, 16 Seat, Negative Rake, SM Chipbreaker, 0.031 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: S05F, ANSI Code: VNMG 332-SM S05F, ISO Code: VNMG 16 04 08-SM S05F, 35 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: S, For Use On: Heat Resistant Super Alloys

Specifications

ANSI Code
VNMG 332-SM S05F
Chipbreaker
SM
Corner Radius
0.031 in
Cutting Direction
Neutral
Finish
CVD-TiCN+Al2O3+TiN Coated
For Use On
Heat Resistant Super Alloys
Hole Diameter
0.15 in
ISO Code
VNMG 16 04 08-SM S05F
Included Angle
35 deg
Inscribed Circle
3/8 in
Insert Size
332
Insert Style
VNMG
Length
0.6537 in
Manufacturer's Grade
S05F
Material
Carbide
Material Grade
S
Maximum Depth of Cut
2.5 mm
Rake
Negative
Relief Angle
0 deg
Seat Size
16
Series
T-Max P, T-Max® P
Shape
Diamond
Thickness
0.187 in
Type
2-Sided Basic Shape

Item Features

  • Reliable and secure machining, even in roughing applications
  • Possibility to optimize by using damped Silent Tools
  • Excellent surface finish

Documents

826215144

Sandvik Coromant 5915144 T-Max P 2-Sided Basic Shape Turning Insert, ANSI Code: VNMG 332-SM S05F, VNMG Insert, Material Grade: S, 332 Insert, Diamond Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Heat Resistant Super Alloys, Carbide

Description


Sandvik Coromant Turning Insert, 2-Sided Basic Shape, Series: T-Max P, VNMG Insert, 332 Insert, Diamond, 2.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.187 in Thickness, 0.6537 in Length, 16 Seat, Negative Rake, SM Chipbreaker, 0.031 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: S05F, ANSI Code: VNMG 332-SM S05F, ISO Code: VNMG 16 04 08-SM S05F, 35 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: S, For Use On: Heat Resistant Super Alloys

Product Number: 826215144

Manufacturer: Sandvik Coromant

Price:

$26.13 / EA
Pack10/PK

MFG #: 5915144

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: VNMG 332-SM S05F

Chipbreaker: SM

Corner Radius: 0.031 in

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Heat Resistant Super Alloys

Hole Diameter: 0.15 in

ISO Code: VNMG 16 04 08-SM S05F

Included Angle: 35 deg

Inscribed Circle: 3/8 in

Insert Size: 332

Insert Style: VNMG

Length: 0.6537 in

Manufacturer's Grade: S05F

Material: Carbide

Material Grade: S

Maximum Depth of Cut: 2.5 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 16

Series: T-Max P, T-Max® P

Shape: Diamond

Thickness: 0.187 in

Type: 2-Sided Basic Shape

Item Features

  • Reliable and secure machining, even in roughing applications
  • Possibility to optimize by using damped Silent Tools
  • Excellent surface finish
