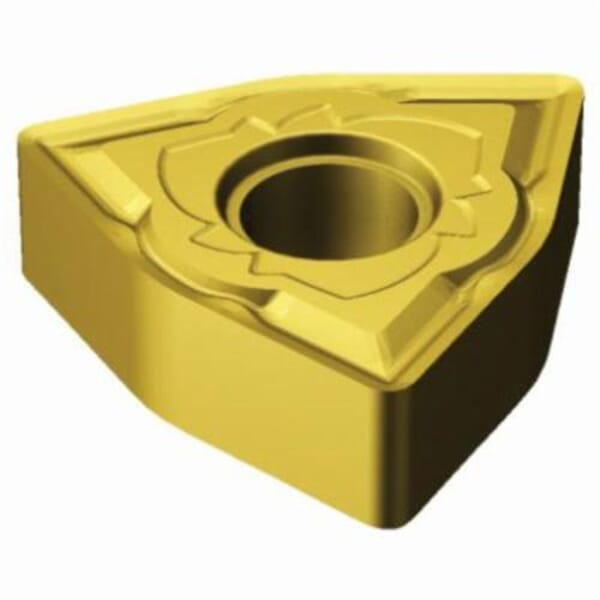

Sandvik Coromant 5915134 T-Max P Turning Insert, ANSI Code: WNMG 433-SM S05F, WNMG Insert, Material Grade: S, 433 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Heat Resistant Super Alloys and Titanium, Carbide

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5915134 T-Max P Turning Insert, ANSI Code: WNMG 433-SM S05F, WNMG Insert, Material Grade: S, 433 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Heat Resistant Super Alloys and Titanium, Carbide

ManufacturerSandvik Coromant

Part #826215134

MFG #5915134

Sandvik Coromant Turning Insert, Series: T-Max P, WNMG Insert, 433 Insert, Trigon, 3.5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 08 Seat, Negative Rake, SM Chipbreaker, 0.047 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: S05F, ANSI Code: WNMG 433-SM S05F, ISO Code: WNMG 08 04 12-SM S05F, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: S, For Use On: Heat Resistant Super Alloys and Titanium

$20.82

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: WNMG 433-SM S05F

Chipbreaker: SM

Corner Radius: 0.047 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Heat Resistant Super Alloys and Titanium

Hole Diameter: 0.2029 in

Included Angle: 80 deg

Inscribed Circle: 1/2 in

Insert Size: 433

Insert Style: WNMG

ISO Code: WNMG 08 04 12-SM S05F

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: S05F

Material: Carbide

Material Grade: S

Maximum Depth of Cut: 3.5 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 08

Series: T-Max P

Shape: Trigon

Thickness: 0.187 in

Excellent surface finish
Reliable and secure machining, even in roughing applications
Possibility to optimize by using damped Silent Tools

Medium Applications

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: WNMG 433-SM S05F

Chipbreaker: SM

Corner Radius: 0.047 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Heat Resistant Super Alloys and Titanium

Hole Diameter: 0.2029 in

Included Angle: 80 deg

Inscribed Circle: 1/2 in

Insert Size: 433

Insert Style: WNMG

ISO Code: WNMG 08 04 12-SM S05F

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: S05F

Material: Carbide

Material Grade: S

Maximum Depth of Cut: 3.5 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 08

Series: T-Max P

Shape: Trigon

Thickness: 0.187 in

Excellent surface finish
Reliable and secure machining, even in roughing applications
Possibility to optimize by using damped Silent Tools

Medium Applications

SDS
