Sandvik Coromant 5915096 T-Max P Turning Insert, ANSI Code: SNMG 434-SM 1105, SNMG Insert, Material Grade: M, S, 434 Insert, Squared Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Heat-Resistant Super Alloys and Titanium
Your Price
Sandvik Coromant 5915096 T-Max P Turning Insert, ANSI Code: SNMG 434-SM 1105, SNMG Insert, Material Grade: M, S, 434 Insert, Squared Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Heat-Resistant Super Alloys and Titanium
Your Price
Sandvik Coromant 5915096 T-Max P Turning Insert, ANSI Code: SNMG 434-SM 1105, SNMG Insert, Material Grade: M, S, 434 Insert, Squared Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Heat-Resistant Super Alloys and Titanium
Description

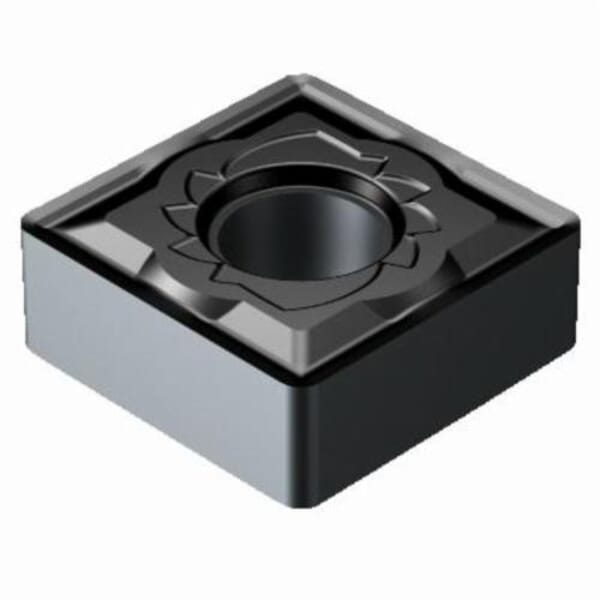

Sandvik Coromant Turning Insert, Series: T-Max P, SNMG Insert, 434 Insert, Squared, 5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 1/2 in Width, 1/2 in Length, 12 Seat, Negative Rake, SM Chipbreaker, 0.0624 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 1105, ANSI Code: SNMG 434-SM 1105, ISO Code: SNMG 12 04 16-SM 1105, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN2 Coated, Material Grade: M, S, For Use On: Stainless Steel, Heat-Resistant Super Alloys and Titanium
Product Number: 826215096
Manufacturer: Sandvik Coromant
Price:
MFG #: 5915096
Manufacturer: Sandvik Coromant
Specifications
ANSI Code: SNMG 434-SM 1105
Chipbreaker: SM
Corner Radius: 0.0624 in
Cutting Direction: Neutral
Finish: PVD-TiAlN2 Coated
For Use On: Stainless Steel, Heat-Resistant Super Alloys and Titanium
Hole Diameter: 0.2029 in
ISO Code: SNMG 12 04 16-SM 1105
Included Angle: 90 deg
Inscribed Circle: 1/2 in
Insert Size: 434
Insert Style: SNMG
Length: 1/2, 1/2 in
Manufacturer's Grade: 1105
Material: Carbide
Material Grade: M, S
Maximum Depth of Cut: 5 mm
Rake: Negative
Relief Angle: 0 deg
Seat Size: 12
Series: T-Max P, T-Max® P
Shape: Squared
Thickness: 0.187 in
Width: 1/2, 1/2 in
Item Features
- Excellent surface finish
- Reliable and secure machining, even in roughing applications
- Possibility to optimize by using damped Silent Tools
