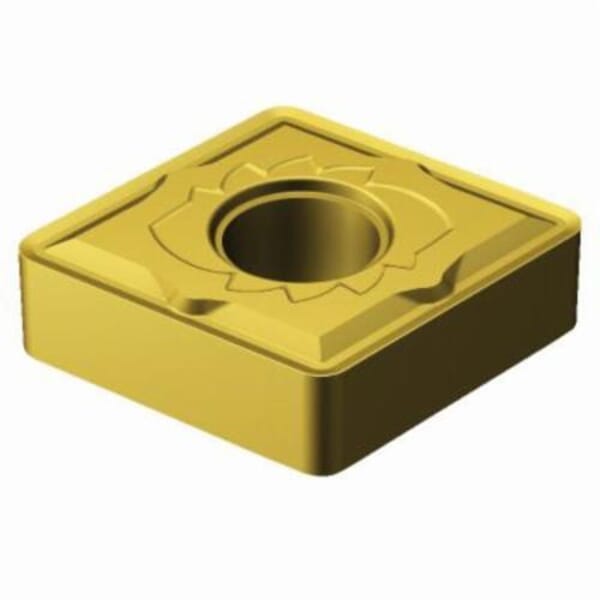

Sandvik Coromant 5915054 T-Max P Turning Insert, ANSI Code: CNMG 433-SM S05F, CNMG Insert, Material Grade: S, 433 Insert, Rhombic Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Heat Resistant Super Alloys, Carbide, Manufacturer's Grade: S05F
Manufacturer: Sandvik Coromant
MFG #: 5915054
Sandvik Coromant 5915054 T-Max P Turning Insert, ANSI Code: CNMG 433-SM S05F, CNMG Insert, Material Grade: S, 433 Insert, Rhombic Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Heat Resistant Super Alloys, Carbide, Manufacturer's Grade: S05F
Sandvik Coromant 5915054 T-Max P Turning Insert, ANSI Code: CNMG 433-SM S05F, CNMG Insert, Material Grade: S, 433 Insert, Rhombic Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Heat Resistant Super Alloys, Carbide, Manufacturer's Grade: S05F
Sandvik Coromant 5915054 T-Max P Turning Insert, ANSI Code: CNMG 433-SM S05F, CNMG Insert, Material Grade: S, 433 Insert, Rhombic Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Heat Resistant Super Alloys, Carbide, Manufacturer's Grade: S05F
Sandvik Coromant 5915054 T-Max P Turning Insert, ANSI Code: CNMG 433-SM S05F, CNMG Insert, Material Grade: S, 433 Insert, Rhombic Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Heat Resistant Super Alloys, Carbide, Manufacturer's Grade: S05F
Sandvik Coromant 5915054 T-Max P Turning Insert, ANSI Code: CNMG 433-SM S05F, CNMG Insert, Material Grade: S, 433 Insert, Rhombic Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Heat Resistant Super Alloys, Carbide, Manufacturer's Grade: S05F

Your Price

$14.30 / EA
Pack10/PK
Available for Purchase
Available for Purchase
Sandvik Coromant 5915054 T-Max P Turning Insert, ANSI Code: CNMG 433-SM S05F, CNMG Insert, Material Grade: S, 433 Insert, Rhombic Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Heat Resistant Super Alloys, Carbide, Manufacturer's Grade: S05F
Manufacturer: Sandvik Coromant
MFG #: 5915054

Your Price

$14.30 / EA
Pack10/PK

Details

Part#826215054

Manufacturer:Sandvik Coromant

MFG #5915054

Sandvik Coromant Turning Insert, Series: T-Max P, CNMG Insert, 433 Insert, Rhombic, 0.138 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 12 Seat, Negative Rake, SM Chipbreaker, 0.047 in Corner Radius, 0.203 in Hole Dia, Manufacturer's Grade: S05F, ANSI Code: CNMG 433-SM S05F, ISO Code: CNMG 12 04 12-SM S05F, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: S, For Use On: Heat Resistant Super Alloys

Specifications

ANSI Code
CNMG 433-SM S05F
Chipbreaker
SM
Corner Radius
0.047 in
Cutting Direction
Neutral
Finish
CVD-TiCN+Al2O3+TiN Coated
For Use On
Heat Resistant Super Alloys
Hole Diameter
0.203 in
ISO Code
CNMG 12 04 12-SM S05F
Included Angle
80 deg
Inscribed Circle
1/2 in
Insert Size
433
Insert Style
CNMG
Manufacturer's Grade
S05F
Material
Carbide
Material Grade
S
Maximum Depth of Cut
0.138 in
Rake
Negative
Relief Angle
0 deg
Seat Size
12
Series
T-Max P, T-Max® P
Shape
Rhombic
Thickness
0.187 in

Documents

826215054

Sandvik Coromant 5915054 T-Max P Turning Insert, ANSI Code: CNMG 433-SM S05F, CNMG Insert, Material Grade: S, 433 Insert, Rhombic Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Heat Resistant Super Alloys, Carbide, Manufacturer's Grade: S05F

Description


Sandvik Coromant Turning Insert, Series: T-Max P, CNMG Insert, 433 Insert, Rhombic, 0.138 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 12 Seat, Negative Rake, SM Chipbreaker, 0.047 in Corner Radius, 0.203 in Hole Dia, Manufacturer's Grade: S05F, ANSI Code: CNMG 433-SM S05F, ISO Code: CNMG 12 04 12-SM S05F, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: S, For Use On: Heat Resistant Super Alloys

Product Number: 826215054

Manufacturer: Sandvik Coromant

Price:

$14.30 / EA
Pack10/PK

MFG #: 5915054

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: CNMG 433-SM S05F

Chipbreaker: SM

Corner Radius: 0.047 in

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Heat Resistant Super Alloys

Hole Diameter: 0.203 in

ISO Code: CNMG 12 04 12-SM S05F

Included Angle: 80 deg

Inscribed Circle: 1/2 in

Insert Size: 433

Insert Style: CNMG

Manufacturer's Grade: S05F

Material: Carbide

Material Grade: S

Maximum Depth of Cut: 0.138 in

Rake: Negative

Relief Angle: 0 deg

Seat Size: 12

Series: T-Max P, T-Max® P

Shape: Rhombic

Thickness: 0.187 in
