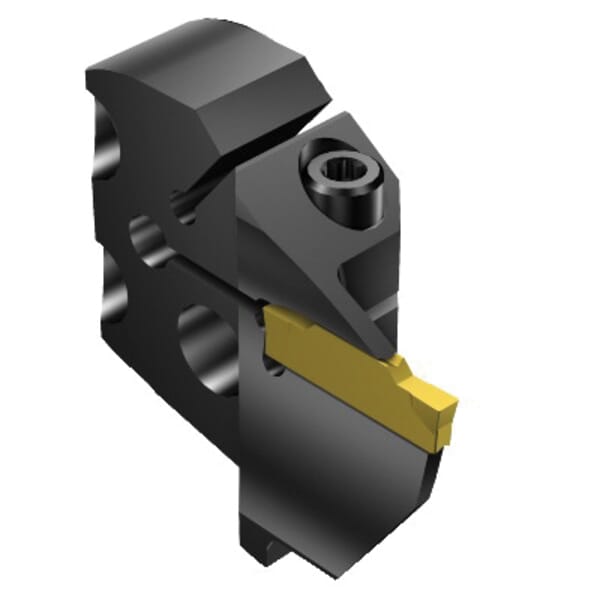

Name: Sandvik Coromant 6038484 CoroCut 1-2 Face Grooving Head, Left Hand Cutting, 168 mm Dia Min Workpiece, 400 mm Dia Max Workpiece, 18 mm Max Depth of Cut
Brand: Sandvik Coromant
SKU: UNISDK021837
Availability: OutOfStock

Sandvik Coromant

Sandvik Coromant 6038484 CoroCut 1-2 Face Grooving Head, Left Hand Cutting, 168 mm Dia Min Workpiece, 400 mm Dia Max Workpiece, 18 mm Max Depth of Cut

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6038484 CoroCut 1-2 Face Grooving Head, Left Hand Cutting, 168 mm Dia Min Workpiece, 400 mm Dia Max Workpiece, 18 mm Max Depth of Cut

ManufacturerSandvik Coromant

Part #826214727

MFG #6038484

Sandvik Coromant Face Grooving Head, Series: CoroCut 1-2, 168 mm Diameter Minimum Workpiece, 400 mm Diameter Maximum Workpiece, 18 mm Maximum Depth of Cut, Left Hand Cutting Direction, Steel

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: SE

Cutting Direction: Left Hand

Manufacturer Name: Sandvik Coromant

Material: Steel

Maximum Depth of Cut: 18 mm

Maximum Workpiece Diameter: 400 mm

Minimum Workpiece Diameter: 168 mm

Series: CoroCut 1-2

5758637 Screw, 5764104 Key and 5764308 Coolant Tube

18 mm D maximum cutting
20 life cycle state
90 deg body workpiece side
Axial concentric coolant entry
10 bar coolant
180 - 400 mm OD minimum axial groove
Radial coolant exit
168 mm Dia minimum inside axial groove
90 deg cutting edge
0 deg rake orthogonal
18 mm L functional
45.1 mm W functional
0.1 mm H functional
15 mm length to cutting item reference point
19.3 mm L protruding
K insert seat size
4 Nm torque
0 deg inclination
18 mm maximum overhang
570-xxR/L123..B..B tool style

5758637 Screw, 5764104 Key and 5764308 Coolant Tube

Sandvik Coromant Face Grooving Head, Series: CoroCut 1-2, 168 mm Diameter Minimum Workpiece, 400 mm Diameter Maximum Workpiece, 18 mm Maximum Depth of Cut, Left Hand Cutting Direction, Steel

Catalog

Manufacturer Name: Sandvik Coromant

Country of Origin: SE

Cutting Direction: Left Hand

Manufacturer Name: Sandvik Coromant

Material: Steel

Maximum Depth of Cut: 18 mm

Maximum Workpiece Diameter: 400 mm

Minimum Workpiece Diameter: 168 mm

Series: CoroCut 1-2

5758637 Screw, 5764104 Key and 5764308 Coolant Tube

18 mm D maximum cutting
20 life cycle state
90 deg body workpiece side
Axial concentric coolant entry
10 bar coolant
180 - 400 mm OD minimum axial groove
Radial coolant exit
168 mm Dia minimum inside axial groove
90 deg cutting edge
0 deg rake orthogonal
18 mm L functional
45.1 mm W functional
0.1 mm H functional
15 mm length to cutting item reference point
19.3 mm L protruding
K insert seat size
4 Nm torque
0 deg inclination
18 mm maximum overhang
570-xxR/L123..B..B tool style

5758637 Screw, 5764104 Key and 5764308 Coolant Tube

Sandvik Coromant Face Grooving Head, Series: CoroCut 1-2, 168 mm Diameter Minimum Workpiece, 400 mm Diameter Maximum Workpiece, 18 mm Maximum Depth of Cut, Left Hand Cutting Direction, Steel
