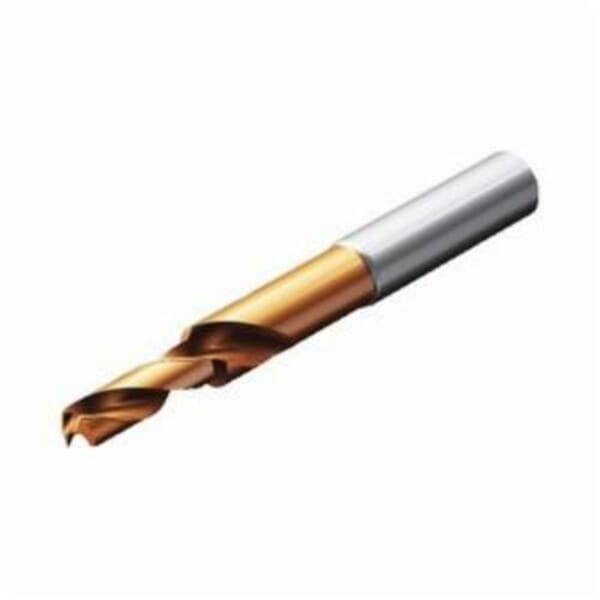

Sandvik Coromant 6040725 CoroDrill 860 Step and Chamfer Drill, 0.3425 in Dia Min Hole, 0.4606 in Dia Max Hole, 2 Steps, Solid Carbide, 2 Hole Sizes, 0.4724 x 1.7716 in Shank

ManufacturerSandvik Coromant

Part #826214225

MFG #6040725

Sandvik Coromant Step and Chamfer Drill, Series: CoroDrill 860, Imperial, 0.3425 in Diameter Minimum Hole, 0.4606 in Diameter Maximum Hole, 4.016 in Overall Length, 2 Steps, 1.024 in Step Depth, 2 Hole, 2 Flutes, SSK Flute, 1.969 in Flute Length, 0.4724 x 1.7716 in Shank, Cylindrical Shank, 147 deg Point, Split Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, Solid Carbide, PVD TiAlN Coated, Applicable Materials: Steel, Stainless Steel and Aluminum

$376.27

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Applicable Materials: Steel, Stainless Steel and Aluminum

Country of Origin: US

Cutting Direction: Right Hand

Cutting Edge Material: Solid Carbide

Drill Diameter Measurement System: Imperial

Finish: PVD TiAlN Coated

Flute Length: 1.969 in

Flute Type: SSK

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Maximum Hole Diameter: 0.4606 in

Minimum Hole Diameter: 0.3425 in

Number of Flutes: 2

Number of Hole Sizes: 2

Number of Steps: 2

Overall Length: 4.016 in

Point Angle: 147 deg

Point Type: Split

Series: CoroDrill 860

Shank Size: 0.4724 x 1.7716 in

Shank Type: Cylindrical

Step Depth: 1.024 in

High penetration rates
Long tool life, controlled wear formation
Low cost per hole
Improved performance reliability
Optimized chip evacuation
Excellent and consistent hole tolerance
Dedicated geometries

DIN 1835-A/DIN 6535-HA|ISO 860.2-0335-011A1-PM 4234|ANSI 860.2-0870-026A1-PM 4234

CoroDrill 860 is a solid carbide drill designed for fast and problem-free drilling, maximizing productivity through high metal cutting efficiency. With excellent chip evacuation in long and short chipping materials, CoroDrill 860 provides green light machining at high penetration rates.

Catalog

SDS

Manufacturer Name: Sandvik Coromant

Applicable Materials: Steel, Stainless Steel and Aluminum

Country of Origin: US

Cutting Direction: Right Hand

Cutting Edge Material: Solid Carbide

Drill Diameter Measurement System: Imperial

Finish: PVD TiAlN Coated

Flute Length: 1.969 in

Flute Type: SSK

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Maximum Hole Diameter: 0.4606 in

Minimum Hole Diameter: 0.3425 in

Number of Flutes: 2

Number of Hole Sizes: 2

Number of Steps: 2

Overall Length: 4.016 in

Point Angle: 147 deg

Point Type: Split

Series: CoroDrill 860

Shank Size: 0.4724 x 1.7716 in

Shank Type: Cylindrical

Step Depth: 1.024 in

High penetration rates
Long tool life, controlled wear formation
Low cost per hole
Improved performance reliability
Optimized chip evacuation
Excellent and consistent hole tolerance
Dedicated geometries

DIN 1835-A/DIN 6535-HA|ISO 860.2-0335-011A1-PM 4234|ANSI 860.2-0870-026A1-PM 4234
