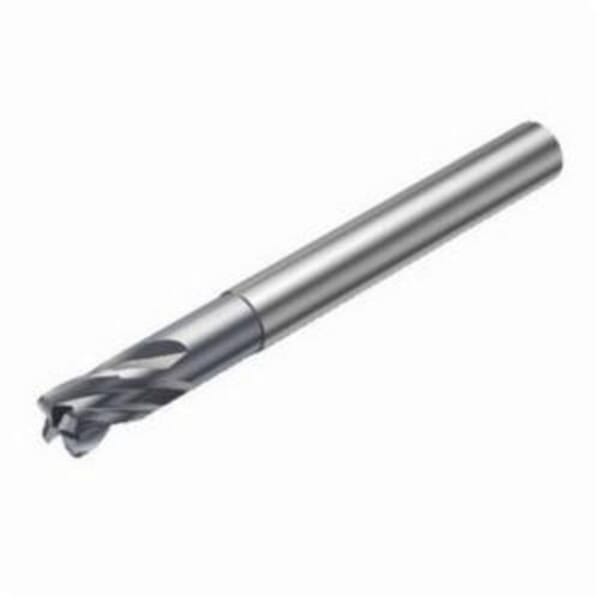

Sandvik Coromant 5742883 CoroMill Plura Square Shoulder End Mill, 0.236 in Dia Cutter, 0.236 in Length of Cut, 4 Flutes, 0.236 in Dia Shank, 2.834 in OAL, PVD Coated

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5742883 CoroMill Plura Square Shoulder End Mill, 0.236 in Dia Cutter, 0.236 in Length of Cut, 4 Flutes, 0.236 in Dia Shank, 2.834 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826213710

MFG #5742883

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.236 in Cutter Dia, 2.834 in Overall Length, 0.236 in Length of Cut, 4 Flutes, 0.236 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: R216.24-06030BAJ06G 1610, ISO Code: R216.24-06030BAJ06G 1610, Solid Carbide, PVD Coated

$146.20

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: R216.24-06030BAJ06G 1610

Country of Origin: DE

Cutter Diameter: 0.236 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 30 deg

ISO Code: R216.24-06030BAJ06G 1610

Length of Cut: 0.236 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 2.834 in

Series: CoroMill Plura

Shank Diameter: 0.236 in

Shank Type: Cylindrical

Type: Square

1610 manufacturer grade
0.5 mm maximum working engagement
1 maximum working engagement ratio
Center cutting capability
4.2 mm Dia core at face
Without coolant entry
No coolant exit
5 mm Dia cutting face contact
5.7 mm Dia neck
SFW (EFW) feed direction
Right helix flute hand
1.5 deg radial rake
1.5 deg axial rake
24 mm L usable
2 maximum regrinds
36 mm overhang
0.5 mm corner radius
90 deg y-axis rot
2 deg ramping
80000 r/min

DIN1835-A|DIN6535-HA

Catalog

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: R216.24-06030BAJ06G 1610

Country of Origin: DE

Cutter Diameter: 0.236 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 30 deg

ISO Code: R216.24-06030BAJ06G 1610

Length of Cut: 0.236 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 2.834 in

Series: CoroMill Plura

Shank Diameter: 0.236 in

Shank Type: Cylindrical

Type: Square

1610 manufacturer grade
0.5 mm maximum working engagement
1 maximum working engagement ratio
Center cutting capability
4.2 mm Dia core at face
Without coolant entry
No coolant exit
5 mm Dia cutting face contact
5.7 mm Dia neck
SFW (EFW) feed direction
Right helix flute hand
1.5 deg radial rake
1.5 deg axial rake
24 mm L usable
2 maximum regrinds
36 mm overhang
0.5 mm corner radius
90 deg y-axis rot
2 deg ramping
80000 r/min

DIN1835-A|DIN6535-HA

Catalog

SDS
