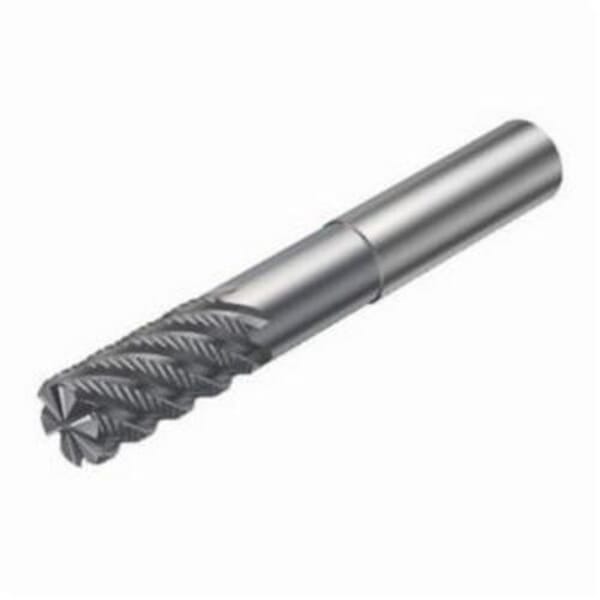

Sandvik Coromant 5847799 CoroMill Plura Square Shoulder End Mill, 0.984 in Dia Cutter, 1.771 in Length of Cut, 8 Flutes, 0.984 in Dia Shank, 4.763 in OAL, PVD Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5847799 CoroMill Plura Square Shoulder End Mill, 0.984 in Dia Cutter, 1.771 in Length of Cut, 8 Flutes, 0.984 in Dia Shank, 4.763 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826213522

MFG #5847799

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.984 in Diameter Cutter, 4.763 in Overall Length, 1.771 in Length of Cut, 8 Flutes, 0.984 in Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, Cylindrical Shank, ANSI Code: R216.38-25045ICC45K 1640, ISO Code: R216.38-25045ICC45K 1640, Solid Carbide, PVD Coated

$1,565.13

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: R216.38-25045ICC45K 1640

Country of Origin: DE

Cutter Diameter: 0.984 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 45 deg

ISO Code: R216.38-25045ICC45K 1640

Length of Cut: 1.771 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 8

Overall Length: 4.763 in

Series: CoroMill Plura

Shank Diameter: 0.984 in

Shank Type: Cylindrical

Type: Square

1640 manufacturer grade
1 mm maximum working engagement
1 maximum working engagement ratio
Interrupted edge property
Center cutting capability
18 mm Dia core at face
Without coolant entry
No coolant exit
17 mm Dia cutting face contact
23.75 mm Dia neck
SFW (EFW) feed direction
Right helix flute hand
-9 deg radial rake
1.5 deg axial rake
65 mm L usable
6 maximum regrinds
65 mm overhang
4 mm corner radius
90 deg y-axis rot
3 deg ramping

DIN1835-A|DIN6535-HA
