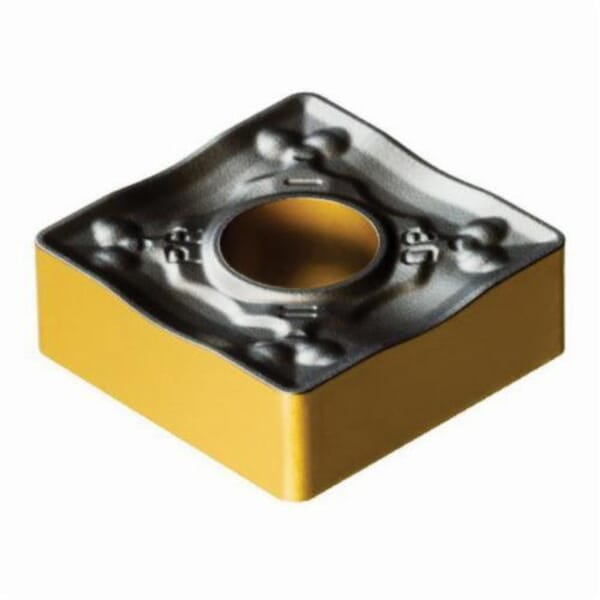

Name: Sandvik Coromant 6612884 T-Max P Turning Insert, ANSI Code: SNMM 543-PR 4315, SNMM Insert, Material Grade: K, P, 543 Insert, Squared Shape, 15 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4315
Brand: Sandvik Coromant
SKU: UNISDK003652
Availability: OutOfStock

Sandvik Coromant

Sandvik Coromant 6612884 T-Max P Turning Insert, ANSI Code: SNMM 543-PR 4315, SNMM Insert, Material Grade: K, P, 543 Insert, Squared Shape, 15 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4315

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6612884 T-Max P Turning Insert, ANSI Code: SNMM 543-PR 4315, SNMM Insert, Material Grade: K, P, 543 Insert, Squared Shape, 15 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4315

ManufacturerSandvik Coromant

Part #826212884

MFG #6612884

Sandvik Coromant Turning Insert, Series: T-Max P, SNMM Insert, 543 Insert, Squared, 0.374 in Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 5/8 in Width, 5/8 in Length, 15 Seat, Negative Rake, PR Chipbreaker, 0.047 in Corner Radius, 1/4 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: SNMM 543-PR 4315, ISO Code: SNMM 15 06 12-PR 4315, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, TiCN/Al2O3/TiN, Material Grade: K, P, For Use On: Cast Iron and Steel

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: SNMM 543-PR 4315
Chipbreaker: PR
Corner Radius: 0.047 in
Country of Origin: SE
Cutting Direction: Neutral
Finish: CVD-TiCN+Al2O3+TiN Coated, TiCN/Al2O3/TiN
For Use On: Cast Iron and Steel
Hole Diameter: 1/4 in
Included Angle: 90 deg
Inscribed Circle: 5/8 in
Insert Size: 543
Insert Style: SNMM
ISO Code: SNMM 15 06 12-PR 4315
Length: 5/8 in
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 4315
Material: Carbide
Material Grade: K, P
Maximum Depth of Cut: 0.374 in
Rake: Negative
Relief Angle: 0 deg
Seat Size: 15
Series: T-Max P
Shape: Squared
Thickness: 1/4 in
Width: 5/8 in
: Sandvik Coromant Turning Insert, Series: T-Max P, SNMM Insert, 543 Insert, Squared, 0.374 in Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 5/8 in Width, 5/8 in Length, 15 Seat, Negative Rake, PR Chipbreaker, 0.047 in Corner Radius, 1/4 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: SNMM 543-PR 4315, ISO Code: SNMM 15 06 12-PR 4315, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, TiCN/Al2O3/TiN, Material Grade: K, P, For Use On: Cast Iron and Steel
: SDS

: Manufacturer Name: Sandvik Coromant
ANSI Code: SNMM 543-PR 4315
Chipbreaker: PR
Corner Radius: 0.047 in
Country of Origin: SE
Cutting Direction: Neutral
Finish: CVD-TiCN+Al2O3+TiN Coated, TiCN/Al2O3/TiN
For Use On: Cast Iron and Steel
Hole Diameter: 1/4 in
Included Angle: 90 deg
Inscribed Circle: 5/8 in
Insert Size: 543
Insert Style: SNMM
ISO Code: SNMM 15 06 12-PR 4315
Length: 5/8 in
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 4315
Material: Carbide
Material Grade: K, P
Maximum Depth of Cut: 0.374 in
Rake: Negative
Relief Angle: 0 deg
Seat Size: 15
Series: T-Max P
Shape: Squared
Thickness: 1/4 in
Width: 5/8 in
: Sandvik Coromant Turning Insert, Series: T-Max P, SNMM Insert, 543 Insert, Squared, 0.374 in Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 5/8 in Width, 5/8 in Length, 15 Seat, Negative Rake, PR Chipbreaker, 0.047 in Corner Radius, 1/4 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: SNMM 543-PR 4315, ISO Code: SNMM 15 06 12-PR 4315, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, TiCN/Al2O3/TiN, Material Grade: K, P, For Use On: Cast Iron and Steel
: SDS
