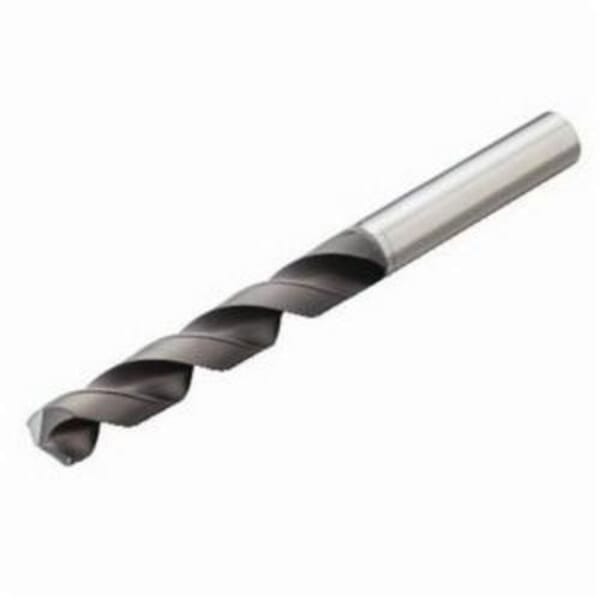

Name: Sandvik Coromant 5859633 CoroDrill Delta-C 854 Jobber Length Drill Bit, 0.236 in Drill - Decimal Inch, 130 deg Point, Solid Carbide, Diamond
Brand: Sandvik Coromant
SKU: UNISDK035124
Availability: OutOfStock

Sandvik Coromant

Sandvik Coromant 5859633 CoroDrill Delta-C 854 Jobber Length Drill Bit, 0.236 in Drill - Decimal Inch, 130 deg Point, Solid Carbide, Diamond

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Sandvik Coromant

Sandvik Coromant 5859633 CoroDrill Delta-C 854 Jobber Length Drill Bit, 0.236 in Drill - Decimal Inch, 130 deg Point, Solid Carbide, Diamond

ManufacturerSandvik Coromant

Part #826211858

MFG #5859633

Sandvik Coromant Jobber Length Drill Bit, Series: CoroDrill Delta-C 854, Imperial, 0.236 in Drill - Decimal Inch, 3.228 in Overall Length, 5XD Cutting Depth, 2 Flutes, Spiral Flute, 1.732 in Flute Length, 0.236 in Shank, Cylindrical Shank, 130 deg Point, Split Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, No Through Coolant, Solid Carbide, Diamond, Applicable Materials: CFRP Fiber Rich Material, Composite Material and Aluminum Stacked Material

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Applicable Materials: CFRP Fiber Rich Material, Composite Material and Aluminum Stacked Material

Country of Origin: FR

Cutting Depth: 5XD

Cutting Direction: Right Hand

Cutting Edge Material: Solid Carbide

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.236 in

Finish: CVD Diamond, Diamond

Flute Length: 1.732 in

Flute Type: Spiral

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 3.228 in

Point Angle: 130 deg

Point Type: Split

Series: CoroDrill Delta-C 854

Shank Size: 0.236 in

Shank Type: Cylindrical

Through Coolant (Yes/No): No

Excellent hole quality and surface finish
Reduced risk for delamination and splintering
Small point angles and high rake angles help to improve hole quality as well as reduce axial forces, which is critical on thin-walled surfaces
Point geometry designed to prevent splintering and fraying

Producing holes in high resin materials, with increasing demands on delamination and splintering, can be optimized with the drill geometry design. The CoroDrill geometries is designed to improve hole entrance and exit quality on carbon fiber materials with high fiber content.

DIN 6535 HA/6537 L

Catalog

SDS

Manufacturer Name: Sandvik Coromant

Applicable Materials: CFRP Fiber Rich Material, Composite Material and Aluminum Stacked Material

Country of Origin: FR

Cutting Depth: 5XD

Cutting Direction: Right Hand

Cutting Edge Material: Solid Carbide

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.236 in

Finish: CVD Diamond, Diamond

Flute Length: 1.732 in

Flute Type: Spiral

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 3.228 in

Point Angle: 130 deg

Point Type: Split

Series: CoroDrill Delta-C 854

Shank Size: 0.236 in

Shank Type: Cylindrical

Through Coolant (Yes/No): No

Excellent hole quality and surface finish
Reduced risk for delamination and splintering
Small point angles and high rake angles help to improve hole quality as well as reduce axial forces, which is critical on thin-walled surfaces
Point geometry designed to prevent splintering and fraying

Producing holes in high resin materials, with increasing demands on delamination and splintering, can be optimized with the drill geometry design. The CoroDrill geometries is designed to improve hole entrance and exit quality on carbon fiber materials with high fiber content.

DIN 6535 HA/6537 L

Catalog

SDS
