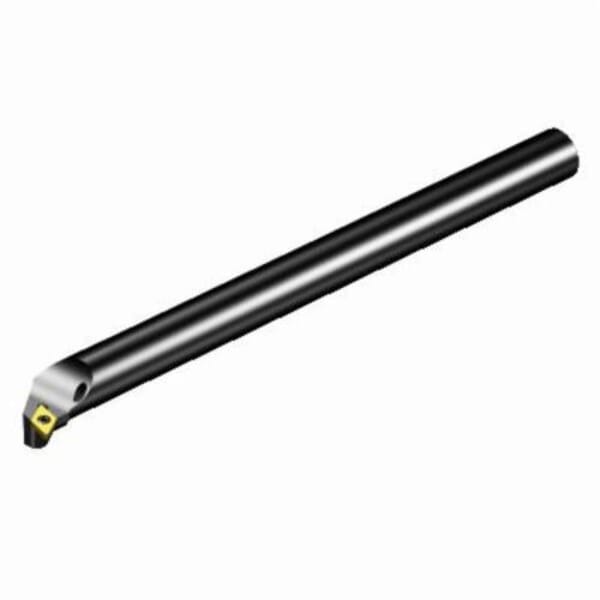

Sandvik Coromant 6011733 CoroTurn 107 Indexable Boring Bar, E..SDUCR-R Toolholder, 1.26 in Dia Min Bore, Right Hand of Holder, 10.63 in OAL
Manufacturer: Sandvik Coromant
MFG #: 6011733
Sandvik Coromant 6011733 CoroTurn 107 Indexable Boring Bar, E..SDUCR-R Toolholder, 1.26 in Dia Min Bore, Right Hand of Holder, 10.63 in OAL
Sandvik Coromant 6011733 CoroTurn 107 Indexable Boring Bar, E..SDUCR-R Toolholder, 1.26 in Dia Min Bore, Right Hand of Holder, 10.63 in OAL
Sandvik Coromant 6011733 CoroTurn 107 Indexable Boring Bar, E..SDUCR-R Toolholder, 1.26 in Dia Min Bore, Right Hand of Holder, 10.63 in OAL
Sandvik Coromant 6011733 CoroTurn 107 Indexable Boring Bar, E..SDUCR-R Toolholder, 1.26 in Dia Min Bore, Right Hand of Holder, 10.63 in OAL
Sandvik Coromant 6011733 CoroTurn 107 Indexable Boring Bar, E..SDUCR-R Toolholder, 1.26 in Dia Min Bore, Right Hand of Holder, 10.63 in OAL

Your Price

$1,173.87 / EA
Pack1/PK
Available for Purchase
Available for Purchase
Sandvik Coromant 6011733 CoroTurn 107 Indexable Boring Bar, E..SDUCR-R Toolholder, 1.26 in Dia Min Bore, Right Hand of Holder, 10.63 in OAL
Manufacturer: Sandvik Coromant
MFG #: 6011733

Your Price

$1,173.87 / EA
Pack1/PK

Details

Part#826211733

Manufacturer:Sandvik Coromant

MFG #6011733

Sandvik Coromant Indexable Boring Bar, Series: CoroTurn 107, 1.26 in Minimum Bore, 5.906 in Maximum Bore Depth, 10.63 in Overall Length, 0.984 in Shank Diameter, Cylindrical Shank, Right, E..SDUCR-R Toolholder, Insert Compatibility: DCMT 11 T3 08, 55 deg Diamond Insert, 3/8 in Inscribed Circle, 5763169 Insert Screw, 0.156 in Insert Thickness, Carbide, Yes Through Coolant

Specifications

Hand of Holder
Right
Inscribed Circle
3/8 in
Insert Compatibility
DCMT 11 T3 08
Insert Screw
5763169
Insert Shape
55 deg Diamond
Insert Thickness
0.156 in
Material
Carbide
Maximum Bore Depth
5.906 in
Minimum Bore Diameter
1.26 in
Overall Length
10.63 in
Series
CoroTurn 107, CoroTurn® 107
Shank Diameter
0.984 in
Shank Type
Cylindrical
Through Coolant (Yes/No)
Yes
Toolholder Type
E..SDUCR-R

Item Features

  • Screw clamp design of CoroTurn 107 ensures stability and unobstructed chip flow while turning, it is easy to handle, clean and maintain
  • Tool holders are equipped with nozzles that direct precision coolant right at the insert edge to boost process security and provide excellent chip control
  • When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
  • The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
  • Wiper geometries available for high feeds and high quality surface finish
  • Ground, super sharp insert offer for exceptional surface finish
  • Holders with conventional and precision coolant design

Item Includes

5763169 Insert Screw and 5764130 Key

Documents

826211733

Sandvik Coromant 6011733 CoroTurn 107 Indexable Boring Bar, E..SDUCR-R Toolholder, 1.26 in Dia Min Bore, Right Hand of Holder, 10.63 in OAL

Description


Sandvik Coromant Indexable Boring Bar, Series: CoroTurn 107, 1.26 in Minimum Bore, 5.906 in Maximum Bore Depth, 10.63 in Overall Length, 0.984 in Shank Diameter, Cylindrical Shank, Right, E..SDUCR-R Toolholder, Insert Compatibility: DCMT 11 T3 08, 55 deg Diamond Insert, 3/8 in Inscribed Circle, 5763169 Insert Screw, 0.156 in Insert Thickness, Carbide, Yes Through Coolant

Product Number: 826211733

Manufacturer: Sandvik Coromant

Price:

$1,173.87 / EA
Pack1/PK

MFG #: 6011733

Manufacturer: Sandvik Coromant

Specifications

Hand of Holder: Right

Inscribed Circle: 3/8 in

Insert Compatibility: DCMT 11 T3 08

Insert Screw: 5763169

Insert Shape: 55 deg Diamond

Insert Thickness: 0.156 in

Material: Carbide

Maximum Bore Depth: 5.906 in

Minimum Bore Diameter: 1.26 in

Overall Length: 10.63 in

Series: CoroTurn 107, CoroTurn® 107

Shank Diameter: 0.984 in

Shank Type: Cylindrical

Through Coolant (Yes/No): Yes

Toolholder Type: E..SDUCR-R

Item Includes

5763169 Insert Screw and 5764130 Key
