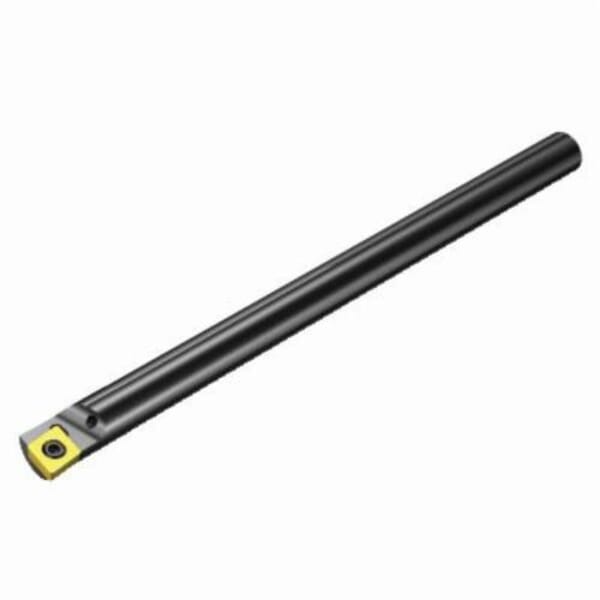

Sandvik Coromant 6011716 CoroTurn 107 Indexable Boring Bar, E..SCLCL -R Toolholder, 0.984 in Dia Min Bore, Left Hand of Holder, 8.661 in OAL

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6011716 CoroTurn 107 Indexable Boring Bar, E..SCLCL -R Toolholder, 0.984 in Dia Min Bore, Left Hand of Holder, 8.661 in OAL

ManufacturerSandvik Coromant

Part #826211716

MFG #6011716

Sandvik Coromant Indexable Boring Bar, Series: CoroTurn 107, 0.984 in Minimum Bore Dia, 4.724 in Maximum Bore Depth, 8.661 in Overall Length, 0.787 in Shank Dia, Cylindrical Shank, Left Hand of Holder, E..SCLCL -R Toolholder, Insert Compatibility: CCMT 09 T3 08, 80 deg Diamond Insert, 3/8 in Inscribed Circle, 5763167 Insert Screw, 0.156 in Insert Thickness, Carbide, Through Coolant: Yes

$1,180.17

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: US

Hand of Holder: Left

Inscribed Circle: 3/8 in

Insert Compatibility: CCMT 09 T3 08

Insert Screw: 5763167

Insert Shape: 80 deg Diamond, 80 deg Diamond/Rhombic

Insert Thickness: 0.156 in

Manufacturer Name: Sandvik Coromant

Material: Carbide

Maximum Bore Depth: 4.724 in

Minimum Bore Diameter: 0.984 in

Overall Length: 8.661 in

Series: CoroTurn 107

Shank Diameter: 0.787 in

Shank Type: Cylindrical

Through Coolant (Yes/No): Yes

Toolholder Type: E..SCLCL -R

Screw clamp design of CoroTurn 107 ensures stability and unobstructed chip flow while turning, it is easy to handle, clean and maintain
Tool holders are equipped with nozzles that direct precision coolant right at the insert edge to boost process security and provide excellent chip control
When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Wiper geometries available for high feeds and high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
Holders with conventional and precision coolant design

5763167 Insert Screw and 5764130 Key

Sandvik Coromant Indexable Boring Bar, Series: CoroTurn 107, 0.984 in Minimum Bore Dia, 4.724 in Maximum Bore Depth, 8.661 in Overall Length, 0.787 in Shank Dia, Cylindrical Shank, Left Hand of Holder, E..SCLCL -R Toolholder, Insert Compatibility: CCMT 09 T3 08, 80 deg Diamond/Rhombic Insert, 3/8 in Inscribed Circle, 5763167 Insert Screw, 0.156 in Insert Thickness, Carbide, Through Coolant: Yes

SDS

Manufacturer Name: Sandvik Coromant

Country of Origin: US

Hand of Holder: Left

Inscribed Circle: 3/8 in

Insert Compatibility: CCMT 09 T3 08

Insert Screw: 5763167

Insert Shape: 80 deg Diamond, 80 deg Diamond/Rhombic

Insert Thickness: 0.156 in

Manufacturer Name: Sandvik Coromant

Material: Carbide

Maximum Bore Depth: 4.724 in

Minimum Bore Diameter: 0.984 in

Overall Length: 8.661 in

Series: CoroTurn 107

Shank Diameter: 0.787 in

Shank Type: Cylindrical

Through Coolant (Yes/No): Yes

Toolholder Type: E..SCLCL -R

Screw clamp design of CoroTurn 107 ensures stability and unobstructed chip flow while turning, it is easy to handle, clean and maintain
Tool holders are equipped with nozzles that direct precision coolant right at the insert edge to boost process security and provide excellent chip control
When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Wiper geometries available for high feeds and high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
Holders with conventional and precision coolant design

5763167 Insert Screw and 5764130 Key

Sandvik Coromant Indexable Boring Bar, Series: CoroTurn 107, 0.984 in Minimum Bore Dia, 4.724 in Maximum Bore Depth, 8.661 in Overall Length, 0.787 in Shank Dia, Cylindrical Shank, Left Hand of Holder, E..SCLCL -R Toolholder, Insert Compatibility: CCMT 09 T3 08, 80 deg Diamond/Rhombic Insert, 3/8 in Inscribed Circle, 5763167 Insert Screw, 0.156 in Insert Thickness, Carbide, Through Coolant: Yes
