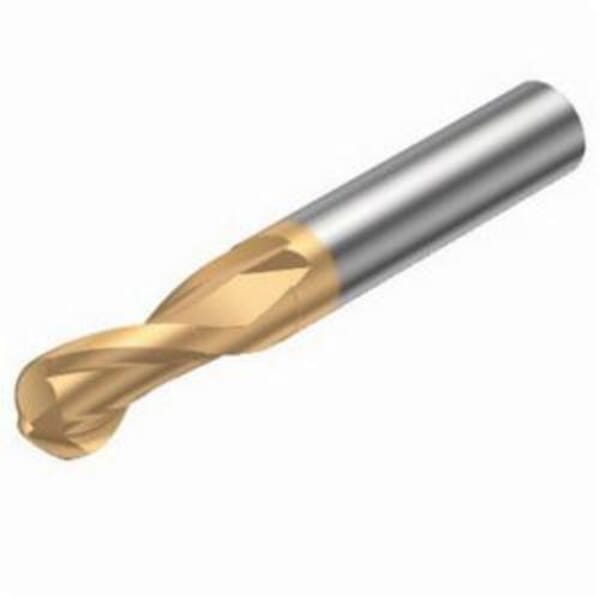

Sandvik Coromant 5963313 CoroMill Plura Ball Nose End Mill, 0.236 in Dia Cutter, 0.354 in Length of Cut, 2 Flutes, 0.236 in Dia Shank, 3.543 in OAL, PVD Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5963313 CoroMill Plura Ball Nose End Mill, 0.236 in Dia Cutter, 0.354 in Length of Cut, 2 Flutes, 0.236 in Dia Shank, 3.543 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826211335

MFG #5963313

Sandvik Coromant End Mill, Ball Nose, 0.236 in Cutter Dia, 3.543 in Overall Length, 0.354 in Length of Cut, 2 Flutes, 0.236 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: R216.42-06030-AC09G 1700, ISO Code: R216.42-06030-AC09G 1700, Solid Carbide, PVD Coated

$248.20

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: R216.42-06030-AC09G 1700

Country of Origin: JP

Cutter Diameter: 0.236 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 30 deg

ISO Code: R216.42-06030-AC09G 1700

Length of Cut: 0.354 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 3.543 in

Series: CoroMill Plura

Shank Diameter: 0.236 in

Shank Type: Cylindrical

Type: Ball Nose

1700 manufacturer grade
Straight chip breaker
2 cutting length
Without coolant entry
No coolant exit
SFW (EFW) feed direction
Right helix flute hand
-6 deg radial rake
1.5 deg axial rake
9 mm L usable
1 maximum regrinds
54 mm overhang
0 deg lead
3 mm corner radius
15 deg ramping
80000 r/min
20 life cycle state
Optimized grades for all materials and conditions
Straight, conical, with and without chip-dividing cutting edge tool shapes
PCD tipped end mills with internal coolant

DIN1835-A|DIN6535-HA

Pre-Machining and Finishing

Catalog

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: R216.42-06030-AC09G 1700

Country of Origin: JP

Cutter Diameter: 0.236 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 30 deg

ISO Code: R216.42-06030-AC09G 1700

Length of Cut: 0.354 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 3.543 in

Series: CoroMill Plura

Shank Diameter: 0.236 in

Shank Type: Cylindrical

Type: Ball Nose

1700 manufacturer grade
Straight chip breaker
2 cutting length
Without coolant entry
No coolant exit
SFW (EFW) feed direction
Right helix flute hand
-6 deg radial rake
1.5 deg axial rake
9 mm L usable
1 maximum regrinds
54 mm overhang
0 deg lead
3 mm corner radius
15 deg ramping
80000 r/min
20 life cycle state
Optimized grades for all materials and conditions
Straight, conical, with and without chip-dividing cutting edge tool shapes
PCD tipped end mills with internal coolant

DIN1835-A|DIN6535-HA

Pre-Machining and Finishing

Catalog

SDS
