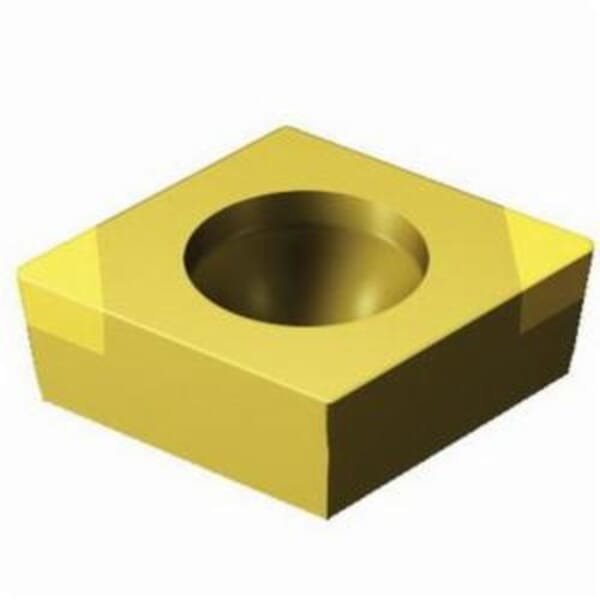

Name: Sandvik Coromant 5965417 CoroTurn 107 Turning Insert, ANSI Code: CCGW3(2.5)1T0320F 7525, CCGW Insert, Material Grade: H, K, 3(2.5)1 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Hardened Steel and Cast Iron, Carbide
Brand: Sandvik Coromant
SKU: UNISDK034309
Availability: OutOfStock

Sandvik Coromant

Sandvik Coromant 5965417 CoroTurn 107 Turning Insert, ANSI Code: CCGW3(2.5)1T0320F 7525, CCGW Insert, Material Grade: H, K, 3(2.5)1 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Hardened Steel and Cast Iron, Carbide

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Sandvik Coromant

Sandvik Coromant 5965417 CoroTurn 107 Turning Insert, ANSI Code: CCGW3(2.5)1T0320F 7525, CCGW Insert, Material Grade: H, K, 3(2.5)1 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Hardened Steel and Cast Iron, Carbide

ManufacturerSandvik Coromant

Part #826211209

MFG #5965417

Sandvik Coromant Turning Insert, Series: CoroTurn 107, CCGW Insert, 3(2.5)1 Insert, Diamond, 0.2 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 09 Seat, Positive Rake, F Chipbreaker, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: 7525, ANSI Code: CCGW3(2.5)1T0320F 7525, ISO Code: CCGW09T304T01020F 7525, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiN Coated, Material Grade: H, K, For Use On: Hardened Steel and Cast Iron

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: CCGW3(2.5)1T0320F 7525

Chipbreaker: F

Corner Radius: 0.0156 in

Country of Origin: PL

Cutting Direction: Neutral

Finish: PVD-TiN Coated

For Use On: Hardened Steel and Cast Iron

Hole Diameter: 0.1732 in

Included Angle: 80 deg

Inscribed Circle: 3/8 in

Insert Size: 3(2.5)1

Insert Style: CCGW

ISO Code: CCGW09T304T01020F 7525

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 7525

Material: Carbide

Material Grade: H, K

Maximum Depth of Cut: 0.2 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 09

Series: CoroTurn 107

Shape: Diamond

Thickness: 0.1562 in

When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
Wiper geometries available for high feeds and high quality surface finish
Positive rake

Sandvik Coromant Turning Insert, Series: CoroTurn 107, CCGW Insert, 3(2.5)1 Insert, Diamond, 0.2 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 09 Seat, Positive Rake, F Chipbreaker, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: 7525, ANSI Code: CCGW3(2.5)1T0320F 7525, ISO Code: CCGW09T304T01020F 7525, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiN Coated, Material Grade: H, K, For Use On: Hardened Steel and Cast Iron

Catalog

Manufacturer Name: Sandvik Coromant

ANSI Code: CCGW3(2.5)1T0320F 7525

Chipbreaker: F

Corner Radius: 0.0156 in

Country of Origin: PL

Cutting Direction: Neutral

Finish: PVD-TiN Coated

For Use On: Hardened Steel and Cast Iron

Hole Diameter: 0.1732 in

Included Angle: 80 deg

Inscribed Circle: 3/8 in

Insert Size: 3(2.5)1

Insert Style: CCGW

ISO Code: CCGW09T304T01020F 7525

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 7525

Material: Carbide

Material Grade: H, K

Maximum Depth of Cut: 0.2 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 09

Series: CoroTurn 107

Shape: Diamond

Thickness: 0.1562 in

When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
Wiper geometries available for high feeds and high quality surface finish
Positive rake

Sandvik Coromant Turning Insert, Series: CoroTurn 107, CCGW Insert, 3(2.5)1 Insert, Diamond, 0.2 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 09 Seat, Positive Rake, F Chipbreaker, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: 7525, ANSI Code: CCGW3(2.5)1T0320F 7525, ISO Code: CCGW09T304T01020F 7525, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiN Coated, Material Grade: H, K, For Use On: Hardened Steel and Cast Iron
