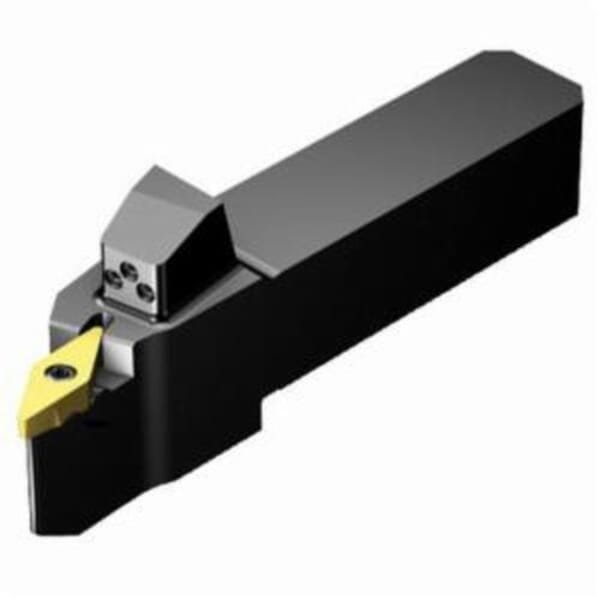

Name: Sandvik Coromant 6766780 CoroTurn TR QS Turning Shank Tool, ANSI Code: QS-TR-V13JBR 2525HP, TR-VB1308 Insert, Right Hand Cutting, 0.9842 in H x 0.9842 in W Rectangle Shank, -3 deg Lead Angle, 0 deg Rake, 5.0393 in OAL
Brand: Sandvik Coromant
SKU: UNISDK028793
Availability: OutOfStock

Sandvik Coromant

Sandvik Coromant 6766780 CoroTurn TR QS Turning Shank Tool, ANSI Code: QS-TR-V13JBR 2525HP, TR-VB1308 Insert, Right Hand Cutting, 0.9842 in H x 0.9842 in W Rectangle Shank, -3 deg Lead Angle, 0 deg Rake, 5.0393 in OAL

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Sandvik Coromant

Sandvik Coromant 6766780 CoroTurn TR QS Turning Shank Tool, ANSI Code: QS-TR-V13JBR 2525HP, TR-VB1308 Insert, Right Hand Cutting, 0.9842 in H x 0.9842 in W Rectangle Shank, -3 deg Lead Angle, 0 deg Rake, 5.0393 in OAL

ManufacturerSandvik Coromant

Part #826211147

MFG #6766780

Sandvik Coromant Turning Shank Tool, Series: CoroTurn TR QS, 5.0393 in Overall Length, Rectangle Shank, 0.9842 in H x 0.9842 in W Shank, Insert Compatibility: TR-VB1308, 13 Insert Seat, Right Hand Cutting Direction, -3 deg Lead Angle, ANSI Code: QS-TR-V13JBR 2525HP, ISO Code: QS-TR-V13JBR 2525HP, 0 deg Rake, Steel

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: QS-TR-V13JBR 2525HP

Country of Origin: SE

Cutting Direction: Right Hand

Insert Compatibility: TR-VB1308

Insert Seat Size: 13

ISO Code: QS-TR-V13JBR 2525HP

Lead Angle: -3 deg

Manufacturer Name: Sandvik Coromant

Material: Steel

Overall Length: 5.0393 in

Rake: 0 deg

Series: CoroTurn TR QS

Shank Size: 0.9842 in H x 0.9842 in W

Shank Type: Rectangle

20 life cycle state
0 deg body machine side
0 deg body workpiece side
Axial concentric and radial entry
150 bar coolant
40 - 60 deg insert screw, rail bottom
Decentral focused exit with nozzles
44 mm L head bottom offset
93 deg cutting edge
0 deg inclination
128 mm L functional
69 mm overhang
50 deg ramping
V-35 deg diamond insert shape
13 mm insert seat
2 Nm torque
QS-TR-V..R/L..HP tool style
25.5 mm W functional
25 mm H functional

5758199 Key, 5758334 Key, 5763186 Insert Screw, 5764143 Key, 5764280 Nozzle, 6462139 Coolant Tube, 6465927 Stop Screw, 6465928 Stop Screw, 6727548 Coolant Screw and 6727621 Washer

Sandvik Coromant Turning Shank Tool, Series: CoroTurn TR QS, 5.0393 in Overall Length, Rectangle Shank, 0.9842 in H x 0.9842 in W Shank, Insert Compatibility: TR-VB1308, 13 Insert Seat, Right Hand Cutting Direction, -3 deg Lead Angle, ANSI Code: QS-TR-V13JBR 2525HP, ISO Code: QS-TR-V13JBR 2525HP, 0 deg Rake, Steel

Manufacturer Name: Sandvik Coromant

ANSI Code: QS-TR-V13JBR 2525HP

Country of Origin: SE

Cutting Direction: Right Hand

Insert Compatibility: TR-VB1308

Insert Seat Size: 13

ISO Code: QS-TR-V13JBR 2525HP

Lead Angle: -3 deg

Manufacturer Name: Sandvik Coromant

Material: Steel

Overall Length: 5.0393 in

Rake: 0 deg

Series: CoroTurn TR QS

Shank Size: 0.9842 in H x 0.9842 in W

Shank Type: Rectangle

20 life cycle state
0 deg body machine side
0 deg body workpiece side
Axial concentric and radial entry
150 bar coolant
40 - 60 deg insert screw, rail bottom
Decentral focused exit with nozzles
44 mm L head bottom offset
93 deg cutting edge
0 deg inclination
128 mm L functional
69 mm overhang
50 deg ramping
V-35 deg diamond insert shape
13 mm insert seat
2 Nm torque
QS-TR-V..R/L..HP tool style
25.5 mm W functional
25 mm H functional

5758199 Key, 5758334 Key, 5763186 Insert Screw, 5764143 Key, 5764280 Nozzle, 6462139 Coolant Tube, 6465927 Stop Screw, 6465928 Stop Screw, 6727548 Coolant Screw and 6727621 Washer

Sandvik Coromant Turning Shank Tool, Series: CoroTurn TR QS, 5.0393 in Overall Length, Rectangle Shank, 0.9842 in H x 0.9842 in W Shank, Insert Compatibility: TR-VB1308, 13 Insert Seat, Right Hand Cutting Direction, -3 deg Lead Angle, ANSI Code: QS-TR-V13JBR 2525HP, ISO Code: QS-TR-V13JBR 2525HP, 0 deg Rake, Steel
