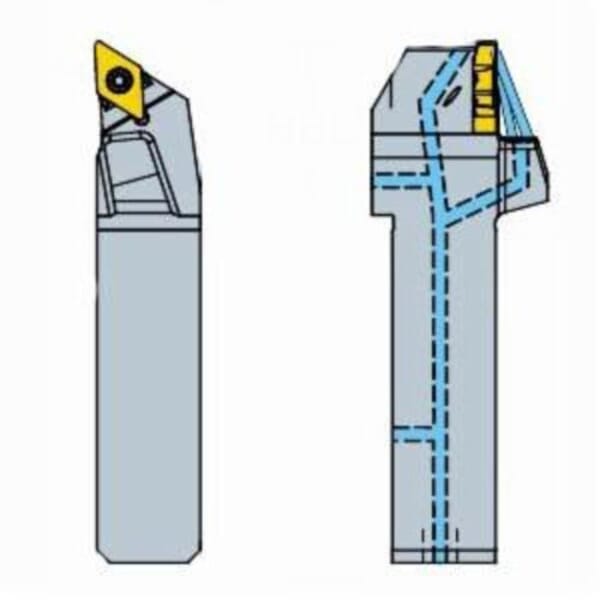

Name: Sandvik Coromant 6766785 CoroTurn TR QS Turning Shank Tool, ANSI Code: QS-TR-D13JCL 12HP, TR-DC1308 Insert, Left Hand Cutting, 3/4 in H x 3/4 in W Rectangle Shank, -3 deg Lead Angle, 0 deg Rake, 4.37 in OAL
Brand: Sandvik Coromant
SKU: UNISDK028774
Availability: OutOfStock

Sandvik Coromant

Sandvik Coromant 6766785 CoroTurn TR QS Turning Shank Tool, ANSI Code: QS-TR-D13JCL 12HP, TR-DC1308 Insert, Left Hand Cutting, 3/4 in H x 3/4 in W Rectangle Shank, -3 deg Lead Angle, 0 deg Rake, 4.37 in OAL

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Sandvik Coromant

Sandvik Coromant 6766785 CoroTurn TR QS Turning Shank Tool, ANSI Code: QS-TR-D13JCL 12HP, TR-DC1308 Insert, Left Hand Cutting, 3/4 in H x 3/4 in W Rectangle Shank, -3 deg Lead Angle, 0 deg Rake, 4.37 in OAL

ManufacturerSandvik Coromant

Part #826211139

MFG #6766785

Sandvik Coromant Turning Shank Tool, Series: CoroTurn TR QS, 4.37 in Overall Length, Rectangle Shank, 3/4 in H x 3/4 in W Shank, Insert Compatibility: TR-DC1308, 13 Insert Seat, Left Hand Cutting Direction, -3 deg Lead Angle, ANSI Code: QS-TR-D13JCL 12HP, ISO Code: QS-TR-D13JCL 12HP, 0 deg Rake, Steel

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: QS-TR-D13JCL 12HP

Country of Origin: SE

Cutting Direction: Left Hand

Insert Compatibility: TR-DC1308

Insert Seat Size: 13

ISO Code: QS-TR-D13JCL 12HP

Lead Angle: -3 deg

Manufacturer Name: Sandvik Coromant

Material: Steel

Overall Length: 4.37 in

Rake: 0 deg

Series: CoroTurn TR QS

Shank Size: 3/4 in H x 3/4 in W

Shank Type: Rectangle

5758199 Key, 5758334 Key, 5763189 Insert Screw, 5764130 Key, 5764280 Nozzle, 6462139 Coolant Tube, 6465927 Stop Screw, 6465928 Stop Screw, 6727548 Coolant Screw and 6727621 Washer

20 life cycle state
0 deg body machine side
0 deg body workpiece side
Axial concentric and radial entry
150 bar coolant
40 - 60 deg insert screw, rail bottom
Decentral focused exit with nozzles
42 mm L head bottom offset
93 deg cutting edge
0 deg inclination
111 mm L functional
61 mm overhang
30 deg ramping
D-55 deg diamond insert shape
13 mm insert seat
3 Nm torque
QS-TR-D..JCR/L..HP tool style
19.558 mm W functional
3/4 in H functional

5758199 Key, 5758334 Key, 5763189 Insert Screw, 5764130 Key, 5764280 Nozzle, 6462139 Coolant Tube, 6465927 Stop Screw, 6465928 Stop Screw, 6727548 Coolant Screw and 6727621 Washer

Sandvik Coromant Turning Shank Tool, Series: CoroTurn TR QS, 4.37 in Overall Length, Rectangle Shank, 3/4 in H x 3/4 in W Shank, Insert Compatibility: TR-DC1308, 13 Insert Seat, Left Hand Cutting Direction, -3 deg Lead Angle, ANSI Code: QS-TR-D13JCL 12HP, ISO Code: QS-TR-D13JCL 12HP, 0 deg Rake, Steel

Manufacturer Name: Sandvik Coromant

ANSI Code: QS-TR-D13JCL 12HP

Country of Origin: SE

Cutting Direction: Left Hand

Insert Compatibility: TR-DC1308

Insert Seat Size: 13

ISO Code: QS-TR-D13JCL 12HP

Lead Angle: -3 deg

Manufacturer Name: Sandvik Coromant

Material: Steel

Overall Length: 4.37 in

Rake: 0 deg

Series: CoroTurn TR QS

Shank Size: 3/4 in H x 3/4 in W

Shank Type: Rectangle

5758199 Key, 5758334 Key, 5763189 Insert Screw, 5764130 Key, 5764280 Nozzle, 6462139 Coolant Tube, 6465927 Stop Screw, 6465928 Stop Screw, 6727548 Coolant Screw and 6727621 Washer

20 life cycle state
0 deg body machine side
0 deg body workpiece side
Axial concentric and radial entry
150 bar coolant
40 - 60 deg insert screw, rail bottom
Decentral focused exit with nozzles
42 mm L head bottom offset
93 deg cutting edge
0 deg inclination
111 mm L functional
61 mm overhang
30 deg ramping
D-55 deg diamond insert shape
13 mm insert seat
3 Nm torque
QS-TR-D..JCR/L..HP tool style
19.558 mm W functional
3/4 in H functional

5758199 Key, 5758334 Key, 5763189 Insert Screw, 5764130 Key, 5764280 Nozzle, 6462139 Coolant Tube, 6465927 Stop Screw, 6465928 Stop Screw, 6727548 Coolant Screw and 6727621 Washer

Sandvik Coromant Turning Shank Tool, Series: CoroTurn TR QS, 4.37 in Overall Length, Rectangle Shank, 3/4 in H x 3/4 in W Shank, Insert Compatibility: TR-DC1308, 13 Insert Seat, Left Hand Cutting Direction, -3 deg Lead Angle, ANSI Code: QS-TR-D13JCL 12HP, ISO Code: QS-TR-D13JCL 12HP, 0 deg Rake, Steel
