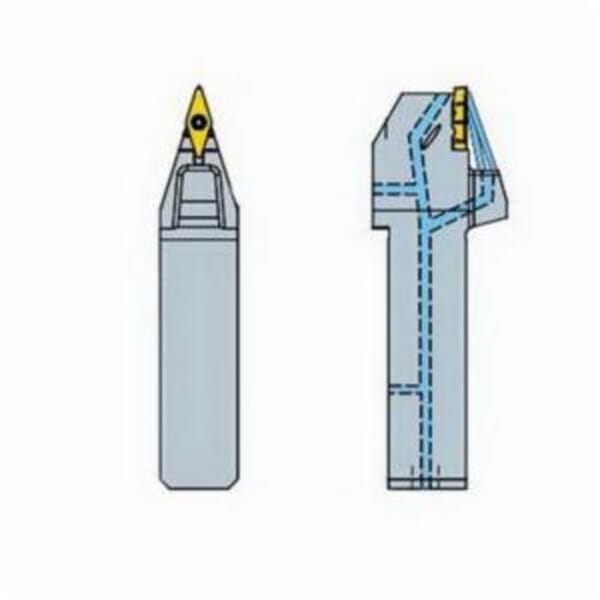

Sandvik Coromant 6766795 CoroTurn TR QS Turning Shank Tool, ANSI Code: QS-TR-V13VBN 12HP, TR-VB1308 Insert, Neutral Cutting, 3/4 in H x 3/4 in W Rectangle Shank, 17.5 deg Lead Angle, 0 deg Rake, 4.4881 in OAL

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6766795 CoroTurn TR QS Turning Shank Tool, ANSI Code: QS-TR-V13VBN 12HP, TR-VB1308 Insert, Neutral Cutting, 3/4 in H x 3/4 in W Rectangle Shank, 17.5 deg Lead Angle, 0 deg Rake, 4.4881 in OAL

ManufacturerSandvik Coromant

Part #826211123

MFG #6766795

Sandvik Coromant Turning Shank Tool, Series: CoroTurn TR QS, 4.4881 in Overall Length, Rectangle Shank, 3/4 in H x 3/4 in W Shank, Insert Compatibility: TR-VB1308, 13 Insert Seat, Neutral Cutting Direction, 17.5 deg Lead Angle, ANSI Code: QS-TR-V13VBN 12HP, ISO Code: QS-TR-V13VBN 12HP, 0 deg Rake, Steel

$602.25

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: QS-TR-V13VBN 12HP

Country of Origin: SE

Cutting Direction: Neutral

Insert Compatibility: TR-VB1308

Insert Seat Size: 13

ISO Code: QS-TR-V13VBN 12HP

Lead Angle: 17.5 deg

Manufacturer Name: Sandvik Coromant

Material: Steel

Overall Length: 4.4881 in

Rake: 0 deg

Series: CoroTurn TR QS

Shank Size: 3/4 in H x 3/4 in W

Shank Type: Rectangle

5758199 Key, 5758334 Key, 5763186 Insert Screw, 5764143 Key, 5764280 Nozzle, 6462139 Coolant Tube, 6465927 Stop Screw, 6465928 Stop Screw, 6727548 Coolant Screw and 6727621 Washer

20 life cycle state
0 deg body machine side
0 deg body workpiece side
Axial concentric and radial entry
150 bar coolant
40 - 60 deg insert screw, rail bottom
Decentral focused exit with nozzles
45 mm L head bottom offset
72.5 deg cutting edge
0 deg inclination
114 mm L functional
64 mm overhang
70 deg ramping
V-35 deg diamond insert shape
13 mm insert seat
2 Nm torque
QS-TR-V..N..HP tool style
10.107 mm W functional
3/4 in H functional

5758199 Key, 5758334 Key, 5763186 Insert Screw, 5764143 Key, 5764280 Nozzle, 6462139 Coolant Tube, 6465927 Stop Screw, 6465928 Stop Screw, 6727548 Coolant Screw and 6727621 Washer

Manufacturer Name: Sandvik Coromant

ANSI Code: QS-TR-V13VBN 12HP

Country of Origin: SE

Cutting Direction: Neutral

Insert Compatibility: TR-VB1308

Insert Seat Size: 13

ISO Code: QS-TR-V13VBN 12HP

Lead Angle: 17.5 deg

Manufacturer Name: Sandvik Coromant

Material: Steel

Overall Length: 4.4881 in

Rake: 0 deg

Series: CoroTurn TR QS

Shank Size: 3/4 in H x 3/4 in W

Shank Type: Rectangle

5758199 Key, 5758334 Key, 5763186 Insert Screw, 5764143 Key, 5764280 Nozzle, 6462139 Coolant Tube, 6465927 Stop Screw, 6465928 Stop Screw, 6727548 Coolant Screw and 6727621 Washer

20 life cycle state
0 deg body machine side
0 deg body workpiece side
Axial concentric and radial entry
150 bar coolant
40 - 60 deg insert screw, rail bottom
Decentral focused exit with nozzles
45 mm L head bottom offset
72.5 deg cutting edge
0 deg inclination
114 mm L functional
64 mm overhang
70 deg ramping
V-35 deg diamond insert shape
13 mm insert seat
2 Nm torque
QS-TR-V..N..HP tool style
10.107 mm W functional
3/4 in H functional

5758199 Key, 5758334 Key, 5763186 Insert Screw, 5764143 Key, 5764280 Nozzle, 6462139 Coolant Tube, 6465927 Stop Screw, 6465928 Stop Screw, 6727548 Coolant Screw and 6727621 Washer
