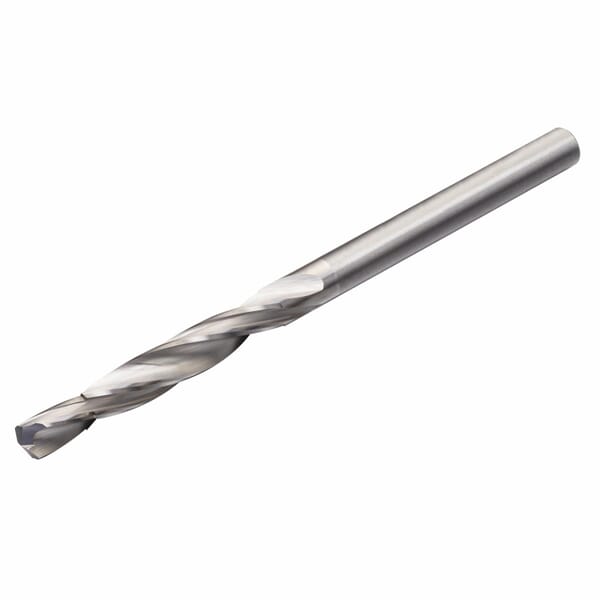

Sandvik Coromant 6010889 CoroDrill 452 Jobber Length Drill Bit, 0.188 to 0.219 in Drill - Decimal Inch, 135 deg Point, Solid Carbide, Uncoated

ManufacturerSandvik Coromant

Part #826210889

MFG #6010889

Sandvik Coromant Jobber Length Drill Bit, Series: CoroDrill 452, Imperial, 0.188 to 0.219 in Drill - Decimal Inch, 4 in Overall Length, 8XD Cutting Depth, 2 Flutes, Spiral Flute, 2 in Flute Length, 7/32 in Shank, Cylindrical Shank, 135 deg Point, Self-Centering Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, No Through Coolant, Solid Carbide, Uncoated, Applicable Materials: Aluminum, Composite, Titanium, Heat Resistant Super Alloy, Stainless Steel and Metallic Stack Materials

$108.12

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Applicable Materials: Aluminum, Composite, Titanium, Heat Resistant Super Alloy, Stainless Steel and Metallic Stack Materials

Country of Origin: US

Cutting Depth: 8XD

Cutting Direction: Right Hand

Cutting Edge Material: Solid Carbide

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.188 to 0.219 in

Finish: Uncoated

Flute Length: 2 in

Flute Type: Spiral

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 4 in

Point Angle: 135 deg

Point Type: Self-Centering

Series: CoroDrill 452

Shank Size: 7/32 in

Shank Type: Cylindrical

Through Coolant (Yes/No): No

Cylindrical shank machine side adaptive interface without clamping features
Without coolant entry
No coolant exit
40.29 mm overhang
EFW cutting feed
20 deg right hand helix flute
EXT thread form
13.458 deg orthogonal rake
H10F manufacturer grade
100.61 mm L functional
3 regrinds
0.99 mm L point
6 mm L regrind
6000 r/min
9.525 mm L step
155 deg included step
H6 connection diameter tolerance
H7 cutting diameter tolerance class
H9 achievable hole tolerance
452.4-CM tool style

For drilling with symetrical point
