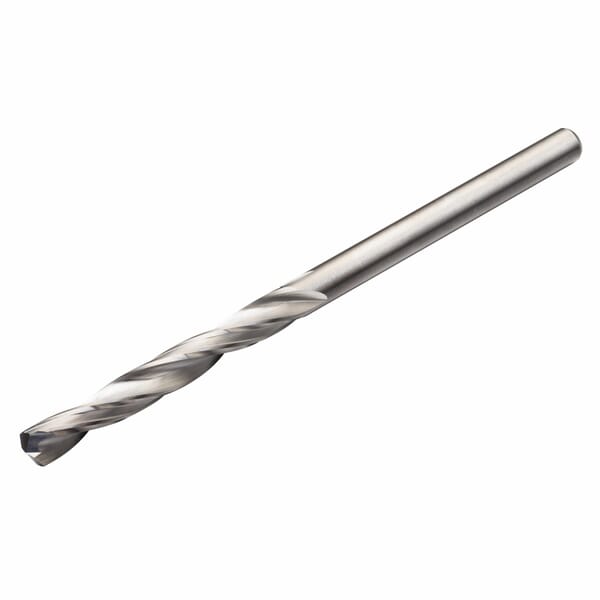

Sandvik Coromant 6010878 CoroDrill 452 Jobber Length Drill Bit, 1/4 in Drill - Fraction, 0.25 in Drill - Decimal Inch, 135 deg Point, Solid Carbide, Uncoated
Manufacturer: Sandvik Coromant
MFG #: 6010878
Sandvik Coromant 6010878 CoroDrill 452 Jobber Length Drill Bit, 1/4 in Drill - Fraction, 0.25 in Drill - Decimal Inch, 135 deg Point, Solid Carbide, Uncoated

Your Price

$77.77 / EA
Pack1/PK
Available for Purchase
Available for Purchase
Sandvik Coromant 6010878 CoroDrill 452 Jobber Length Drill Bit, 1/4 in Drill - Fraction, 0.25 in Drill - Decimal Inch, 135 deg Point, Solid Carbide, Uncoated
Manufacturer: Sandvik Coromant
MFG #: 6010878

Your Price

$77.77 / EA
Pack1/PK

Details

Part#826210878

Manufacturer:Sandvik Coromant

MFG #6010878

Sandvik Coromant Jobber Length Drill Bit, Series: CoroDrill 452, Imperial, 1/4 in Drill - Fraction, 0.25 in Drill - Decimal Inch, 4 in Overall Length, 7XD Cutting Depth, 2 Flutes, Spiral Flute, 2 in Flute Length, 1/4 in Shank, Cylindrical Shank, 135 deg Point, Self-Centering Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, No Through Coolant, Solid Carbide, Uncoated, Applicable Materials: Aluminum, Composite, Titanium, Heat Resistant Super Alloy, Stainless Steel and Metallic Stack Materials

Specifications

Cutting Depth
7XD
Cutting Direction
Right Hand
Cutting Edge Material
Solid Carbide
Drill Diameter Measurement System
Imperial
Drill Size - Decimal Inch
0.25 in
Drill Size - Fraction
1/4 in
Finish
Uncoated
Flute Length
2, 2 in
Flute Type
Spiral
Material
Solid Carbide
Number of Flutes
2
Overall Length
4, 4 in
Point Angle
135 deg
Point Type
Self-Centering
Series
CoroDrill® 452
Shank Size
1/4, 1/4 in
Shank Type
Cylindrical
Through Coolant (Yes/No)
No

Item Features

  • Cylindrical shank machine side adaptive interface without clamping features
  • 50.8 mm L clamping
  • 3 regrinds
  • 1.316 mm L point
  • 7 mm L regrind
  • 50000 r/min
  • H6 connection diameter tolerance
  • H9 achievable hole tolerance
  • 452.1-CM tool style
  • 6.997 usable length diameter ratio
  • M, N, O and S material grade
  • 0 deg body half taper
  • 20 life cycle state
  • Without coolant entry
  • No coolant exit
  • EFW cutting feed
  • 20 deg helix flute
  • 13.458 deg orthogonal rake
  • H10F manufacturer grade
  • 100.3 mm L functional

Documents

826210878

Sandvik Coromant 6010878 CoroDrill 452 Jobber Length Drill Bit, 1/4 in Drill - Fraction, 0.25 in Drill - Decimal Inch, 135 deg Point, Solid Carbide, Uncoated

Description


Sandvik Coromant Jobber Length Drill Bit, Series: CoroDrill 452, Imperial, 1/4 in Drill - Fraction, 0.25 in Drill - Decimal Inch, 4 in Overall Length, 7XD Cutting Depth, 2 Flutes, Spiral Flute, 2 in Flute Length, 1/4 in Shank, Cylindrical Shank, 135 deg Point, Self-Centering Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, No Through Coolant, Solid Carbide, Uncoated, Applicable Materials: Aluminum, Composite, Titanium, Heat Resistant Super Alloy, Stainless Steel and Metallic Stack Materials

Product Number: 826210878

Manufacturer: Sandvik Coromant

Price:

$77.77 / EA
Pack1/PK

MFG #: 6010878

Manufacturer: Sandvik Coromant

Specifications

Cutting Depth: 7XD

Cutting Direction: Right Hand

Cutting Edge Material: Solid Carbide

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.25 in

Drill Size - Fraction: 1/4 in

Finish: Uncoated

Flute Length: 2, 2 in

Flute Type: Spiral

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 4, 4 in

Point Angle: 135 deg

Point Type: Self-Centering

Series: CoroDrill® 452

Shank Size: 1/4, 1/4 in

Shank Type: Cylindrical

Through Coolant (Yes/No): No

Item Features

  • Cylindrical shank machine side adaptive interface without clamping features
  • 50.8 mm L clamping
  • 3 regrinds
  • 1.316 mm L point
  • 7 mm L regrind
  • 50000 r/min
  • H6 connection diameter tolerance
  • H9 achievable hole tolerance
  • 452.1-CM tool style
  • 6.997 usable length diameter ratio
  • M, N, O and S material grade
  • 0 deg body half taper
  • 20 life cycle state
  • Without coolant entry
  • No coolant exit
  • EFW cutting feed
  • 20 deg helix flute
  • 13.458 deg orthogonal rake
  • H10F manufacturer grade
  • 100.3 mm L functional
