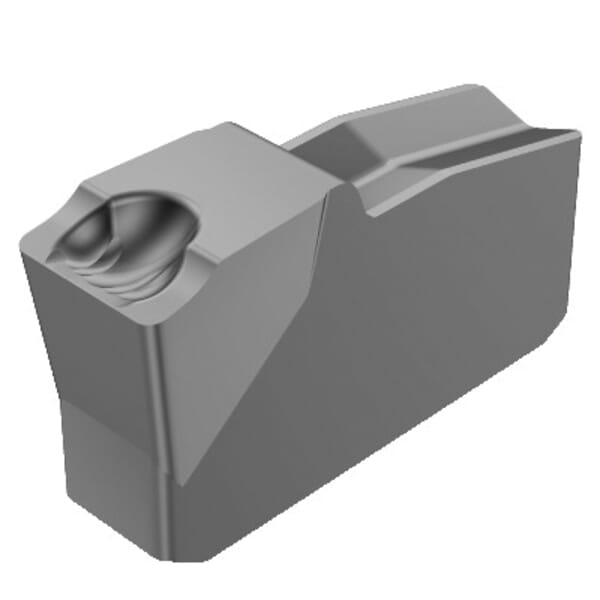

Sandvik Coromant 5738066 T-Max Q-Cut Single Edged Grooving Insert, ANSI Code: N151.2-400-40-5G H13A, N151.2 Insert, 40 Insert, Neutral Cutting, 0.157 in W Cutting, Manufacturers Grade: H13A, Uncoated, Material Grade: K, M, N

Product Line: Sandvik Coromant

MFG #: 5738066

Sandvik Coromant 5738066 T-Max Q-Cut Single Edged Grooving Insert, ANSI Code: N151.2-400-40-5G H13A, N151.2 Insert, 40 Insert, Neutral Cutting, 0.157 in W Cutting, Manufacturers Grade: H13A, Uncoated, Material Grade: K, M, N
Sandvik Coromant 5738066 T-Max Q-Cut Single Edged Grooving Insert, ANSI Code: N151.2-400-40-5G H13A, N151.2 Insert, 40 Insert, Neutral Cutting, 0.157 in W Cutting, Manufacturers Grade: H13A, Uncoated, Material Grade: K, M, N
Sandvik Coromant 5738066 T-Max Q-Cut Single Edged Grooving Insert, ANSI Code: N151.2-400-40-5G H13A, N151.2 Insert, 40 Insert, Neutral Cutting, 0.157 in W Cutting, Manufacturers Grade: H13A, Uncoated, Material Grade: K, M, N
Sandvik Coromant 5738066 T-Max Q-Cut Single Edged Grooving Insert, ANSI Code: N151.2-400-40-5G H13A, N151.2 Insert, 40 Insert, Neutral Cutting, 0.157 in W Cutting, Manufacturers Grade: H13A, Uncoated, Material Grade: K, M, N
Sandvik Coromant 5738066 T-Max Q-Cut Single Edged Grooving Insert, ANSI Code: N151.2-400-40-5G H13A, N151.2 Insert, 40 Insert, Neutral Cutting, 0.157 in W Cutting, Manufacturers Grade: H13A, Uncoated, Material Grade: K, M, N

Your Price

$18.34 / EA
Pack10/PK

Details

Part#826210276

Manufacturer:Sandvik Coromant

MFG #5738066

Sandvik Coromant Grooving Insert, Single Edged, Series: T-Max Q-Cut, N151.2 Insert, 40 Insert, 0.157 in Cutting Width, 0 deg Lead Angle, 5G Chipbreaker, 0.0118 in Corner Radius, Positive Rake, 0.3191 in Thickness, 0.157 in Width, 0.2677 in Length, Manufacturers Grade: H13A, ANSI Code: N151.2-400-40-5G H13A, ISO Code: N151.2-400-40-5G H13A, Neutral Cutting, Carbide, Uncoated, Material Grade: K, M, N

Specifications

ANSI Code
N151.2-400-40-5G H13A
Chipbreaker
5G
Corner Radius
0.0118 in
Country of Origin
JP
Cutting Direction
Neutral
Cutting Width
0.157 in
Finish
Uncoated
Insert Size
40
Insert Style
N151.2
ISO Code
N151.2-400-40-5G H13A
Lead Angle
0 deg
Length
0.2677 in
Manufacturer Name
Sandvik Coromant
Manufacturers Grade
H13A
Material
Carbide
Material Grade
K, M, N
Rake
Positive
Series
T-Max Q-Cut
Thickness
0.3191 in
Type
Single Edged
Width
0.157 in

Application

For finishing and medium duty applications

Item Features

  • Excellent surface finish due to wiper technology
  • Proven, versatile system
  • Dedicated geometries and grades for all materials
  • V-clamped 1-edged insert for good stability

Documents

826210276

Sandvik Coromant 5738066 T-Max Q-Cut Single Edged Grooving Insert, ANSI Code: N151.2-400-40-5G H13A, N151.2 Insert, 40 Insert, Neutral Cutting, 0.157 in W Cutting, Manufacturers Grade: H13A, Uncoated, Material Grade: K, M, N

Description


Sandvik Coromant Grooving Insert, Single Edged, Series: T-Max Q-Cut, N151.2 Insert, 40 Insert, 0.157 in Cutting Width, 0 deg Lead Angle, 5G Chipbreaker, 0.0118 in Corner Radius, Positive Rake, 0.3191 in Thickness, 0.157 in Width, 0.2677 in Length, Manufacturers Grade: H13A, ANSI Code: N151.2-400-40-5G H13A, ISO Code: N151.2-400-40-5G H13A, Neutral Cutting, Carbide, Uncoated, Material Grade: K, M, N

Product Number: 826210276

Manufacturer: Sandvik Coromant

Prasdsadice:

$18.34 / EA
Pack10/PK

MFG #: 5738066

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: N151.2-400-40-5G H13A

Chipbreaker: 5G

Corner Radius: 0.0118 in

Country of Origin: JP

Cutting Direction: Neutral

Cutting Width: 0.157 in

Finish: Uncoated

Insert Size: 40

Insert Style: N151.2

ISO Code: N151.2-400-40-5G H13A

Lead Angle: 0 deg

Length: 0.2677 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: H13A

Material: Carbide

Material Grade: K, M, N

Rake: Positive

Series: T-Max Q-Cut

Thickness: 0.3191 in

Type: Single Edged

Width: 0.157 in

Item Features

  • Excellent surface finish due to wiper technology
  • Proven, versatile system
  • Dedicated geometries and grades for all materials
  • V-clamped 1-edged insert for good stability
