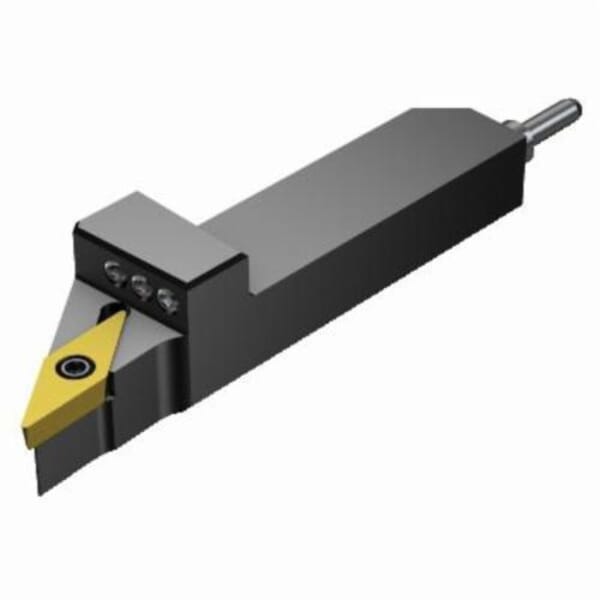

Sandvik Coromant 6010226 CoroTurn 107 Shank Tool, ANSI Code: QS-SVJCL1616E11HP, QS-SVJCR/L..HP Tool Holder, VCMT 110304 (MIIDM) and VCMT 221 (MIIDN) Insert, Left Hand Cutting, 0.6299 in H x 0.6299 in W Rectangle Shank, -3 deg Lead Angle, 0 deg Rake
Your Price
Sandvik Coromant 6010226 CoroTurn 107 Shank Tool, ANSI Code: QS-SVJCL1616E11HP, QS-SVJCR/L..HP Tool Holder, VCMT 110304 (MIIDM) and VCMT 221 (MIIDN) Insert, Left Hand Cutting, 0.6299 in H x 0.6299 in W Rectangle Shank, -3 deg Lead Angle, 0 deg Rake
Your Price
Sandvik Coromant 6010226 CoroTurn 107 Shank Tool, ANSI Code: QS-SVJCL1616E11HP, QS-SVJCR/L..HP Tool Holder, VCMT 110304 (MIIDM) and VCMT 221 (MIIDN) Insert, Left Hand Cutting, 0.6299 in H x 0.6299 in W Rectangle Shank, -3 deg Lead Angle, 0 deg Rake
Description
Sandvik Coromant Shank Tool, Series: CoroTurn 107, QS-SVJCR/L..HP Tool Holder, 2.7559 in Overall Length, Rectangle Shank, 0.6299 in H x 0.6299 in W Shank, Insert Compatibility: VCMT 110304 (MIIDM) and VCMT 221 (MIIDN), 43104 Insert Seat, Left Hand Cutting Direction, -3 deg Lead Angle, ANSI Code: QS-SVJCL1616E11HP, ISO Code: QS-SVJCL1616E11HP, 0 deg Rake, Steel
Product Number: 826210226
Manufacturer: Sandvik Coromant
Price:
MFG #: 6010226
Manufacturer: Sandvik Coromant
Specifications
ANSI Code: QS-SVJCL1616E11HP
Cutting Direction: Left Hand
ISO Code: QS-SVJCL1616E11HP
Insert Compatibility: VCMT 110304 (MIIDM) and VCMT 221 (MIIDN)
Insert Seat Size: 43104
Lead Angle: -3 deg
Material: Steel
Overall Length: 2.7559 in
Rake: 0 deg
Series: CoroTurn 107
Shank Size: 0.6299 in H x 0.6299 in W
Shank Type: Rectangle
Tool Holder Style: QS-SVJCR/L..HP
Item Features
- 0 deg body machine side
- 0.9 Nm torque
- 16 mm W functional
- 40 - 60 deg insert screw clamping
- V - 35 deg diamond insert
- 0 deg body workpiece side
- Axial concentric coolant entry
- Axial inclined focused coolant exit with nozzle
- 0 deg inclination
- 93 deg cutting edge
- 50 deg maximum ramping
- 20 life cycle state
- 28 mm maximum overhang
