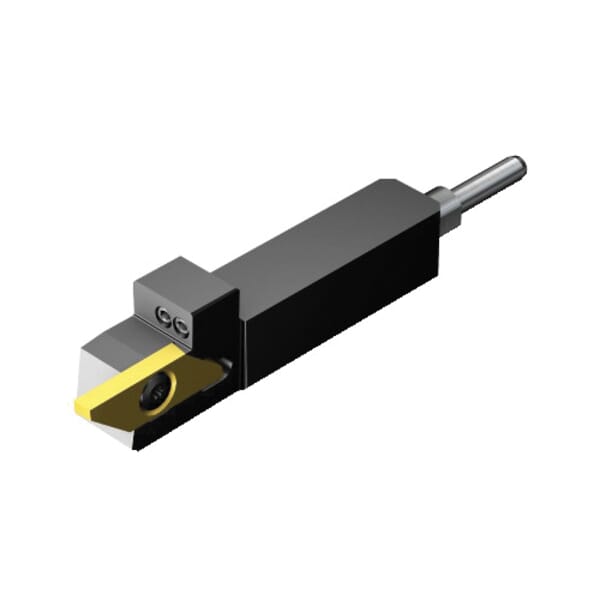

Name: Sandvik Coromant 6010214 CoroCut XS QS Shank Tool With High Precision Coolant, Insert Compatibility: MACL 3 200-N, #3 Insert Seat, Left Hand Cutting, External, 16 mm H x 16 mm W Shank, QS-SMALR/L..HP Toolholder
Brand: Sandvik Coromant
SKU: UNISDK022327
Availability: OutOfStock

Sandvik Coromant

Sandvik Coromant 6010214 CoroCut XS QS Shank Tool With High Precision Coolant, Insert Compatibility: MACL 3 200-N, #3 Insert Seat, Left Hand Cutting, External, 16 mm H x 16 mm W Shank, QS-SMALR/L..HP Toolholder

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6010214 CoroCut XS QS Shank Tool With High Precision Coolant, Insert Compatibility: MACL 3 200-N, #3 Insert Seat, Left Hand Cutting, External, 16 mm H x 16 mm W Shank, QS-SMALR/L..HP Toolholder

ManufacturerSandvik Coromant

Part #826210214

MFG #6010214

Sandvik Coromant Shank Tool, Series: CoroCut XS QS, Insert Compatibility: MACL 3 200-N, QS-SMALR/L..HP Toolholder, 28 mm Head Length, 70 mm Overall Length, Rectangle Shank, 16 mm H x 16 mm W Shank, #3 Insert Seat, Left Hand Cutting Direction, 8.5 mm Maximum Depth of Cut, Countersunk Head Screw, Steel, External

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: DE

Cutting Direction: Left Hand

Head Length: 28 mm

Insert Compatibility: MACL 3 200-N

Insert Seat Size: #3

Internal or External: External

Manufacturer Name: Sandvik Coromant

Material: Steel

Maximum Depth of Cut: 8.5 mm

Overall Length: 70 mm

Screw Type: Countersunk Head

Series: CoroCut XS QS

Shank Size: 16 mm H x 16 mm W

Shank Type: Rectangle

Toolholder Type: QS-SMALR/L..HP

0 deg body workpiece side
20 life cycle state
Axial concentric coolant entry
80 bar coolant
Axial inclined focused exit with nozzle coolant exit
90 deg cutting edge
28 mm minimum overhang
1.2 Nm torque
0 deg inclination
0 deg rake

5763243 Insert Screw, 5764128 Screwdriver, 5764280 Nozzle and 6031544 Coolant Tube

Parting and Grooving

5763243 Insert Screw, 5764128 Screwdriver, 5764280 Nozzle and 6031544 Coolant Tube

Manufacturer Name: Sandvik Coromant

Country of Origin: DE

Cutting Direction: Left Hand

Head Length: 28 mm

Insert Compatibility: MACL 3 200-N

Insert Seat Size: #3

Internal or External: External

Manufacturer Name: Sandvik Coromant

Material: Steel

Maximum Depth of Cut: 8.5 mm

Overall Length: 70 mm

Screw Type: Countersunk Head

Series: CoroCut XS QS

Shank Size: 16 mm H x 16 mm W

Shank Type: Rectangle

Toolholder Type: QS-SMALR/L..HP

0 deg body workpiece side
20 life cycle state
Axial concentric coolant entry
80 bar coolant
Axial inclined focused exit with nozzle coolant exit
90 deg cutting edge
28 mm minimum overhang
1.2 Nm torque
0 deg inclination
0 deg rake

5763243 Insert Screw, 5764128 Screwdriver, 5764280 Nozzle and 6031544 Coolant Tube

Parting and Grooving

5763243 Insert Screw, 5764128 Screwdriver, 5764280 Nozzle and 6031544 Coolant Tube
