Sandvik Coromant 6010147 CoroMill 328 Thread Milling Insert, ANSI Code: 328R13-600 MM-TH 1025, 328 Insert, Triangular Shape, Internal Thread, MM Thread, 6 mm Pitch, Right Hand Cutting, Manufacturers Grade: 1025, Material Grade: K, M, N, P, S

ManufacturerSandvik Coromant

Part #826210147

MFG #6010147

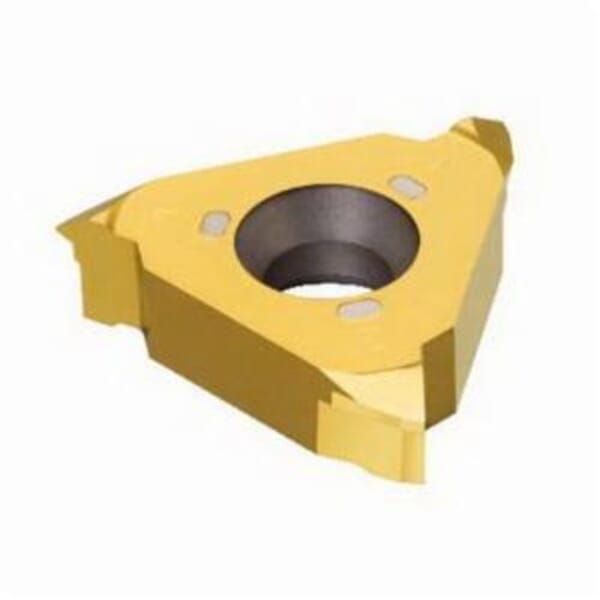

Sandvik Coromant Thread Milling Insert, Series: CoroMill 328, 328 Insert, 13 Insert, Triangular, Internal, MM, 6 mm Pitch, 14 mm Inscribed Circle, 0.299 in Thickness, ANSI Code: 328R13-600 MM-TH 1025, ISO Code: 328R13-600 MM-TH 1025, TH Chipbreaker, Positive Rake, 60 deg Included Angle, Manufacturers Grade: 1025, Right Hand Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: K, M, N, P, S

$118.75

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 328R13-600 MM-TH 1025

Chipbreaker: TH

Country of Origin: FR

Cutting Direction: Right Hand

Finish: PVD-TiAlN+TiN Coated

Included Angle: 60 deg

Inscribed Circle: 14 mm

Insert Size: 13

Insert Style: 328

ISO Code: 328R13-600 MM-TH 1025

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1025

Material: Carbide

Material Grade: K, M, N, P, S

Pitch: 6 mm

Rake: Positive

Series: CoroMill 328

Shape: Triangular

Thickness: 0.299 in

Thread Standard: MM

Thread Type: Internal

Inserts mounted in pockets for safe and stable mounting
Economical insert with three edges
Large programme of inserts covering circlips, slots, threads, etc
Low cutting forces
Sharp precision ground insert
Different thread pitches possible with one tool
Sharp cutting edges for high quality grooves without burr

For thread milling, grooving and circlip grooving holes over diameter 39 mm (1.535 in) applications
