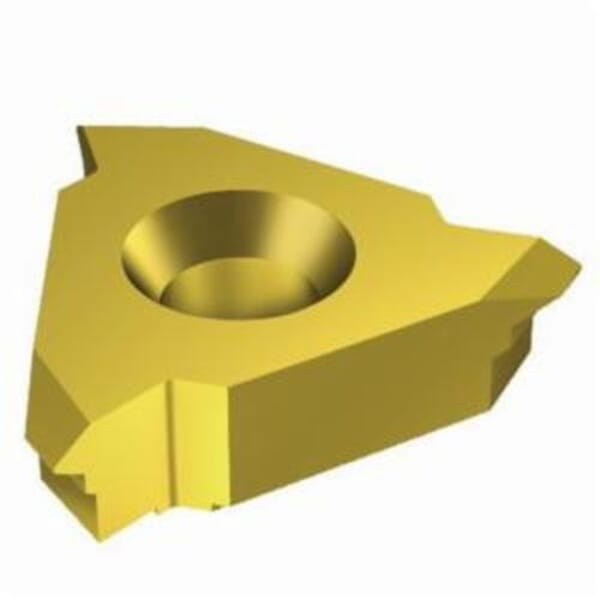

Sandvik Coromant 6010130 CoroMill 328 Thread Milling Insert, ANSI Code: 328R13-12 UN-TH 1025, 328 Insert, Triangular Shape, 12 TPI, Internal Thread, UN Thread, Right Hand Cutting, Manufacturers Grade: 1025, Material Grade: K, M, N, P, S

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6010130 CoroMill 328 Thread Milling Insert, ANSI Code: 328R13-12 UN-TH 1025, 328 Insert, Triangular Shape, 12 TPI, Internal Thread, UN Thread, Right Hand Cutting, Manufacturers Grade: 1025, Material Grade: K, M, N, P, S

ManufacturerSandvik Coromant

Part #826210130

MFG #6010130

Sandvik Coromant Thread Milling Insert, Series: CoroMill 328, 328 Insert, 13 Insert, Triangular, Internal, UN, 12, 12 mm Inscribed Circle, 0.207 in Thickness, ANSI Code: 328R13-12 UN-TH 1025, ISO Code: 328R13-12 UN-TH 1025, TH Chipbreaker, Positive Rake, 60 deg Included Angle, Manufacturers Grade: 1025, Right Hand Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: K, M, N, P, S

$102.60

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 328R13-12 UN-TH 1025

Chipbreaker: TH

Country of Origin: FR

Cutting Direction: Right Hand

Finish: PVD-TiAlN+TiN Coated

Included Angle: 60 deg

Inscribed Circle: 12 mm

Insert Size: 13

Insert Style: 328

ISO Code: 328R13-12 UN-TH 1025

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1025

Material: Carbide

Material Grade: K, M, N, P, S

Rake: Positive

Series: CoroMill 328

Shape: Triangular

Thickness: 0.207 in

Thread Standard: UN

Thread Type: Internal

Threads per Inch: 12

Inserts mounted in pockets for safe and stable mounting
Economical insert with three edges
Large programme of inserts covering circlips, slots, threads, etc
Low cutting forces
Sharp precision ground insert
Different thread pitches possible with one tool
Sharp cutting edges for high quality grooves without burr

For thread milling, grooving and circlip grooving holes over diameter 39 mm (1.535 in) applications

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: 328R13-12 UN-TH 1025

Chipbreaker: TH

Country of Origin: FR

Cutting Direction: Right Hand

Finish: PVD-TiAlN+TiN Coated

Included Angle: 60 deg

Inscribed Circle: 12 mm

Insert Size: 13

Insert Style: 328

ISO Code: 328R13-12 UN-TH 1025

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1025

Material: Carbide

Material Grade: K, M, N, P, S

Rake: Positive

Series: CoroMill 328

Shape: Triangular

Thickness: 0.207 in

Thread Standard: UN

Thread Type: Internal

Threads per Inch: 12

Inserts mounted in pockets for safe and stable mounting
Economical insert with three edges
Large programme of inserts covering circlips, slots, threads, etc
Low cutting forces
Sharp precision ground insert
Different thread pitches possible with one tool
Sharp cutting edges for high quality grooves without burr

For thread milling, grooving and circlip grooving holes over diameter 39 mm (1.535 in) applications

SDS
