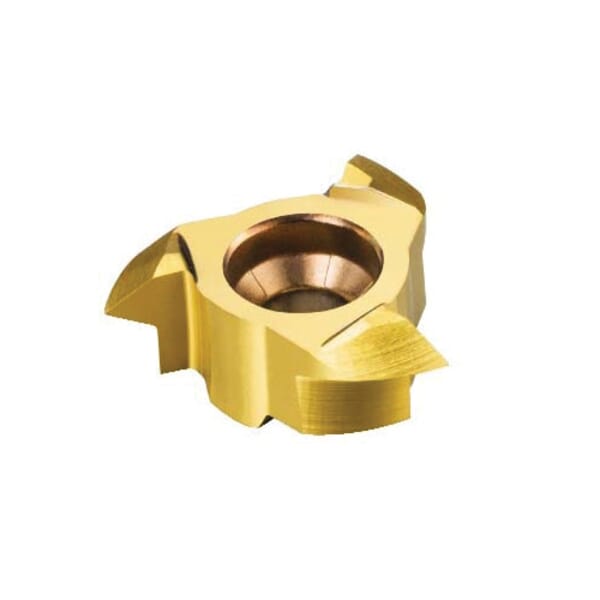

Sandvik Coromant 6010084 CoroMill 327 Thread Milling Insert, ANSI Code: 327R09-18 100VM-THM 1025, 327 Insert, Triangular Shape, 12 to 24 TPI, Internal Thread, VM Thread, 1 mm Pitch, Right Hand Cutting, Manufacturer's Grade: 1025
Manufacturer: Sandvik Coromant
MFG #: 6010084
Sandvik Coromant 6010084 CoroMill 327 Thread Milling Insert, ANSI Code: 327R09-18 100VM-THM 1025, 327 Insert, Triangular Shape, 12 to 24 TPI, Internal Thread, VM Thread, 1 mm Pitch, Right Hand Cutting, Manufacturer's Grade: 1025
Sandvik Coromant 6010084 CoroMill 327 Thread Milling Insert, ANSI Code: 327R09-18 100VM-THM 1025, 327 Insert, Triangular Shape, 12 to 24 TPI, Internal Thread, VM Thread, 1 mm Pitch, Right Hand Cutting, Manufacturer's Grade: 1025
Sandvik Coromant 6010084 CoroMill 327 Thread Milling Insert, ANSI Code: 327R09-18 100VM-THM 1025, 327 Insert, Triangular Shape, 12 to 24 TPI, Internal Thread, VM Thread, 1 mm Pitch, Right Hand Cutting, Manufacturer's Grade: 1025
Sandvik Coromant 6010084 CoroMill 327 Thread Milling Insert, ANSI Code: 327R09-18 100VM-THM 1025, 327 Insert, Triangular Shape, 12 to 24 TPI, Internal Thread, VM Thread, 1 mm Pitch, Right Hand Cutting, Manufacturer's Grade: 1025

Your Price

$116.10 / EA
Pack2/PK
Available for Purchase
Available for Purchase
Sandvik Coromant 6010084 CoroMill 327 Thread Milling Insert, ANSI Code: 327R09-18 100VM-THM 1025, 327 Insert, Triangular Shape, 12 to 24 TPI, Internal Thread, VM Thread, 1 mm Pitch, Right Hand Cutting, Manufacturer's Grade: 1025
Manufacturer: Sandvik Coromant
MFG #: 6010084

Your Price

$116.10 / EA
Pack2/PK

Details

Part#826210084

Manufacturer:Sandvik Coromant

MFG #6010084

Sandvik Coromant Thread Milling Insert, Series: CoroMill 327, 327 Insert, 9 Insert, Triangular, Internal, VM, 1 mm Pitch, 12 to 24, 9 mm Inscribed Circle, 0.219 in Thickness, 5.85 mm Length, ANSI Code: 327R09-18 100VM-THM 1025, ISO Code: 327R09-18 100VM-THM 1025, THM Chipbreaker, Positive Rake, 60 deg Included Angle, Manufacturer's Grade: 1025, Right Hand Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: K, M, N, P, S

Specifications

ANSI Code
327R09-18 100VM-THM 1025
Chipbreaker
THM
Cutting Direction
Right Hand
Finish
PVD-TiAlN+TiN Coated
ISO Code
327R09-18 100VM-THM 1025
Included Angle
60 deg
Inscribed Circle
9 mm
Insert Size
9
Insert Style
327
Length
5.85 mm
Manufacturer's Grade
1025
Material
Carbide
Material Grade
K, M, N, P, S
Pitch
1, 1 mm
Rake
Positive
Series
CoroMill 327, CoroMill® 327
Shape
Triangular
Thickness
0.219 in
Thread Standard
VM
Thread Type
Internal
Threads per Inch
12 to 24

Item Features

  • Low cutting forces
  • Sharp cutting edges for high quality grooves without burr
  • Multiple edges for highly productive and economic machining
  • Large program with different shank lengths and diameters
  • Large programme of inserts covering for instance circlips, o-rings, slots and threads
  • Weldon shank in steel and carbide with different lengths
  • Solid carbide and steel shanks in several lengths for stable setups and high productivity
  • Secure locking of insert
  • Different thread pitches possible with one tool

Documents

826210084

Sandvik Coromant 6010084 CoroMill 327 Thread Milling Insert, ANSI Code: 327R09-18 100VM-THM 1025, 327 Insert, Triangular Shape, 12 to 24 TPI, Internal Thread, VM Thread, 1 mm Pitch, Right Hand Cutting, Manufacturer's Grade: 1025

Description


Sandvik Coromant Thread Milling Insert, Series: CoroMill 327, 327 Insert, 9 Insert, Triangular, Internal, VM, 1 mm Pitch, 12 to 24, 9 mm Inscribed Circle, 0.219 in Thickness, 5.85 mm Length, ANSI Code: 327R09-18 100VM-THM 1025, ISO Code: 327R09-18 100VM-THM 1025, THM Chipbreaker, Positive Rake, 60 deg Included Angle, Manufacturer's Grade: 1025, Right Hand Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: K, M, N, P, S

Product Number: 826210084

Manufacturer: Sandvik Coromant

Price:

$116.10 / EA
Pack2/PK

MFG #: 6010084

Manufacturer: Sandvik Coromant

Specifications

ANSI Code: 327R09-18 100VM-THM 1025

Chipbreaker: THM

Cutting Direction: Right Hand

Finish: PVD-TiAlN+TiN Coated

ISO Code: 327R09-18 100VM-THM 1025

Included Angle: 60 deg

Inscribed Circle: 9 mm

Insert Size: 9

Insert Style: 327

Length: 5.85 mm

Manufacturer's Grade: 1025

Material: Carbide

Material Grade: K, M, N, P, S

Pitch: 1, 1 mm

Rake: Positive

Series: CoroMill 327, CoroMill® 327

Shape: Triangular

Thickness: 0.219 in

Thread Standard: VM

Thread Type: Internal

Threads per Inch: 12 to 24

Item Features

  • Low cutting forces
  • Sharp cutting edges for high quality grooves without burr
  • Multiple edges for highly productive and economic machining
  • Large program with different shank lengths and diameters
  • Large programme of inserts covering for instance circlips, o-rings, slots and threads
  • Weldon shank in steel and carbide with different lengths
  • Solid carbide and steel shanks in several lengths for stable setups and high productivity
  • Secure locking of insert
  • Different thread pitches possible with one tool
