Name: Pramet 6754632 Positive Milling Insert, ANSI Code: APKT -3PDR-GM M9315, APKT Insert, 1604 Insert, Carbide, Manufacturers Grade: M9315, 85 deg Parallelogram Shape
Brand: Dormer Pramet
SKU: DORMER_2000242
Availability: OutOfStock

Dormer Pramet

Pramet 6754632 Positive Milling Insert, ANSI Code: APKT -3PDR-GM M9315, APKT Insert, 1604 Insert, Carbide, Manufacturers Grade: M9315, 85 deg Parallelogram Shape

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Dormer Pramet

Pramet 6754632 Positive Milling Insert, ANSI Code: APKT -3PDR-GM M9315, APKT Insert, 1604 Insert, Carbide, Manufacturers Grade: M9315, 85 deg Parallelogram Shape

ManufacturerPramet

Part #816094632

MFG #6754632

UPC #3603602899989

Pramet Milling Insert, Positive, APKT Insert, 1604 Insert, 85 deg Parallelogram, 9.44 mm Inscribed Circle, 5.67 mm Thickness, 17 mm Length, GM Chipbreaker, 0.8 mm Corner Radius, 11 deg Lead Angle, 4.6 mm Hole Dia, Manufacturers Grade: M9315, ANSI Code: APKT -3PDR-GM M9315, ISO Code: APKT 1604PDR-GM M9315, Right Hand, Carbide, Steel, Cast Iron and Hardened Steel Material Application

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: APKT -3PDR-GM M9315

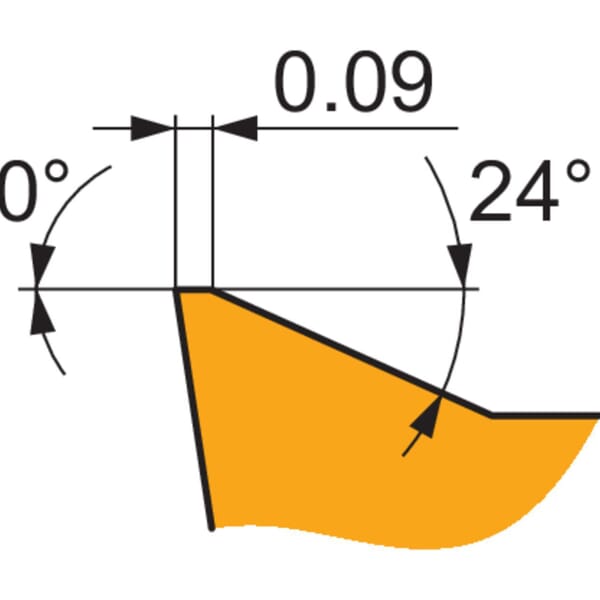

Chipbreaker: GM

Corner Radius: 0.8 mm

Country of Origin: CZ

Finish: CVD Coated

Hand of Insert: Right

Hole Diameter: 4.6 mm

Inscribed Circle: 9.44 mm

Insert Size: 1604

Insert Style: APKT

ISO Code: APKT 1604PDR-GM M9315

Lead Angle: 11 deg

Length: 17 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: M9315

Material: Carbide

Material Application: Steel, Cast Iron and Hardened Steel

Shape: 85 deg Parallelogram

Thickness: 5.67 mm

Type: Positive

Fine grained substrate with a lower content of bonding cobalt phase
Thin MT-CVD coating with a unique Al2O3 layer
Suited to medium to high cutting speeds
High abrasion resistance while retaining a good level of strength

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Pramet Milling Insert, Positive, APKT Insert, 1604 Insert, 85 deg Parallelogram, 9.44 mm Inscribed Circle, 5.67 mm Thickness, 17 mm Length, GM Chipbreaker, 0.8 mm Corner Radius, 11 deg Lead Angle, 4.6 mm Hole Dia, Manufacturers Grade: M9315, ANSI Code: APKT -3PDR-GM M9315, ISO Code: APKT 1604PDR-GM M9315, Right Hand, Carbide, Steel, Cast Iron and Hardened Steel Material Application

Catalog

Manufacturer Name: Dormer Pramet

ANSI Code: APKT -3PDR-GM M9315

Chipbreaker: GM

Corner Radius: 0.8 mm

Country of Origin: CZ

Finish: CVD Coated

Hand of Insert: Right

Hole Diameter: 4.6 mm

Inscribed Circle: 9.44 mm

Insert Size: 1604

Insert Style: APKT

ISO Code: APKT 1604PDR-GM M9315

Lead Angle: 11 deg

Length: 17 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: M9315

Material: Carbide

Material Application: Steel, Cast Iron and Hardened Steel

Shape: 85 deg Parallelogram

Thickness: 5.67 mm

Type: Positive

Fine grained substrate with a lower content of bonding cobalt phase
Thin MT-CVD coating with a unique Al2O3 layer
Suited to medium to high cutting speeds
High abrasion resistance while retaining a good level of strength

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Pramet Milling Insert, Positive, APKT Insert, 1604 Insert, 85 deg Parallelogram, 9.44 mm Inscribed Circle, 5.67 mm Thickness, 17 mm Length, GM Chipbreaker, 0.8 mm Corner Radius, 11 deg Lead Angle, 4.6 mm Hole Dia, Manufacturers Grade: M9315, ANSI Code: APKT -3PDR-GM M9315, ISO Code: APKT 1604PDR-GM M9315, Right Hand, Carbide, Steel, Cast Iron and Hardened Steel Material Application
