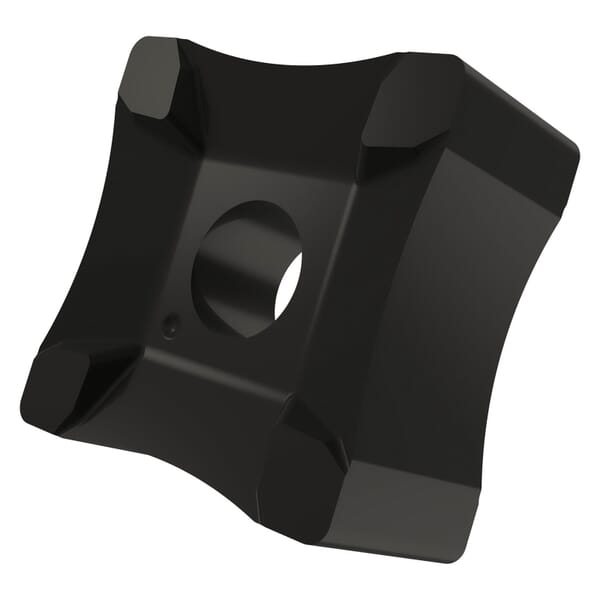

Name: Pramet 6801222 Turning Insert, SNMX Insert, Material Grade: M, P, S, 15 Insert, Squared Shape, 15 Seat, Negative Rake, For Use On Stainless Steel, Steel and Titanium/Super Alloys, Carbide, Manufacturers Grade: T9335
Brand: Dormer Pramet
SKU: DORMER_2003963
Availability: OutOfStock

Dormer Pramet

Pramet 6801222 Turning Insert, SNMX Insert, Material Grade: M, P, S, 15 Insert, Squared Shape, 15 Seat, Negative Rake, For Use On Stainless Steel, Steel and Titanium/Super Alloys, Carbide, Manufacturers Grade: T9335

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Dormer Pramet

Pramet 6801222 Turning Insert, SNMX Insert, Material Grade: M, P, S, 15 Insert, Squared Shape, 15 Seat, Negative Rake, For Use On Stainless Steel, Steel and Titanium/Super Alloys, Carbide, Manufacturers Grade: T9335

ManufacturerPramet

Part #816091222

MFG #6801222

UPC #3603602996305

Turning Insert Pramet, SNMX Insert, 15 Insert, Squared, 15.875 mm Inscribed Circle, 8.15 mm Thickness, 15.875 mm Width, 15.875 mm Length, 15 Seat, Negative Rake, R22 Chipbreaker, 5.16 mm Hole Dia, Manufacturers Grade: T9335, ISO Code: SNMX 15-R22:T9335, 90 deg Included Angle, 0 deg Relief Angle, Carbide, Material Grade: M, P, S, Stainless Steel, Steel and Titanium/Super Alloys For Use On

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Chipbreaker: R22

Country of Origin: CZ

Finish: CVD Coated

For Use On: Stainless Steel, Steel and Titanium/Super Alloys

Hole Diameter: 5.16 mm

Included Angle: 90 deg

Inscribed Circle: 15.875 mm

Insert Size: 15

Insert Style: SNMX

ISO Code: SNMX 15-R22:T9335

Length: 15.875 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9335

Material: Carbide

Material Grade: M, P, S

Rake: Negative

Relief Angle: 0 deg

Seat Size: 15

Shape: Squared

Thickness: 8.15 mm

Width: 15.875 mm

T9335 grade functionally gradient substrate with medium grain size
Relatively high cobalt content
MT-CVD coating of medium thickness
Material shows very high strength
Special surface finish for coating
Designed for machining material groups P, M and S
Medium cutting speeds
Continuous and heavily interrupted cut
Also withstands very unfavorable machining conditions

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Turning Insert Pramet, SNMX Insert, 15 Insert, Squared, 15.875 mm Inscribed Circle, 8.15 mm Thickness, 15.875 mm Width, 15.875 mm Length, 15 Seat, Negative Rake, R22 Chipbreaker, 5.16 mm Hole Dia, Manufacturers Grade: T9335, ISO Code: SNMX 15-R22:T9335, 90 deg Included Angle, 0 deg Relief Angle, Carbide, Material Grade: M, P, S, Stainless Steel, Steel and Titanium/Super Alloys For Use On

Specification Sheet

Catalog

Manufacturer Name: Dormer Pramet

Chipbreaker: R22

Country of Origin: CZ

Finish: CVD Coated

For Use On: Stainless Steel, Steel and Titanium/Super Alloys

Hole Diameter: 5.16 mm

Included Angle: 90 deg

Inscribed Circle: 15.875 mm

Insert Size: 15

Insert Style: SNMX

ISO Code: SNMX 15-R22:T9335

Length: 15.875 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9335

Material: Carbide

Material Grade: M, P, S

Rake: Negative

Relief Angle: 0 deg

Seat Size: 15

Shape: Squared

Thickness: 8.15 mm

Width: 15.875 mm

T9335 grade functionally gradient substrate with medium grain size
Relatively high cobalt content
MT-CVD coating of medium thickness
Material shows very high strength
Special surface finish for coating
Designed for machining material groups P, M and S
Medium cutting speeds
Continuous and heavily interrupted cut
Also withstands very unfavorable machining conditions

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Turning Insert Pramet, SNMX Insert, 15 Insert, Squared, 15.875 mm Inscribed Circle, 8.15 mm Thickness, 15.875 mm Width, 15.875 mm Length, 15 Seat, Negative Rake, R22 Chipbreaker, 5.16 mm Hole Dia, Manufacturers Grade: T9335, ISO Code: SNMX 15-R22:T9335, 90 deg Included Angle, 0 deg Relief Angle, Carbide, Material Grade: M, P, S, Stainless Steel, Steel and Titanium/Super Alloys For Use On

Specification Sheet

Catalog
