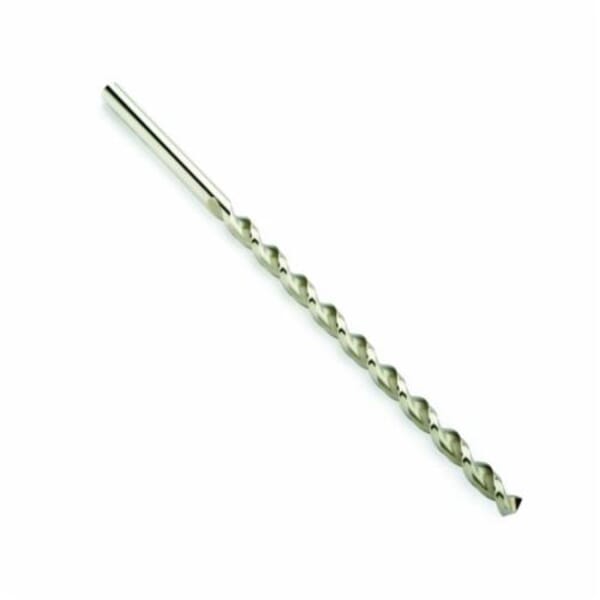

Dormer 5973180 A976 Heavy Duty Premium Quick-Helix Dormer Extra Length Drill, 6.3 mm Drill - Metric, 0.248 in Drill - Decimal Inch, 215 mm OAL, HSS-E

ManufacturerDormer

Part #816080027

MFG #0280027

UPC #7320760280027

Dormer Dormer Extra Length Drill, Heavy Duty Premium Quick-Helix, 6.3 mm Drill Size - Metric, 0.248 in Drill Size - Decimal Inch, 215 mm Overall Length, 15XD Cutting Depth, 2 Flutes, Parabolic/Spiral Flute, 150 mm Flute Length, 6.3 mm Shank, Straight Shank, 130 deg Point, PFX Point, Right Hand Cutting, HSS-E Cutting Edge, HSS-E, Bright, Applicable Materials: Magnetic Soft Steel, Alloy Steel, Lamellar Graphite, Aluminum, Magnesium, Unalloyed and Copper, DIN 1869/1 Specifications Met, No Through Coolant (Yes/No)

$91.97

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Applicable Materials: Magnetic Soft Steel, Alloy Steel, Lamellar Graphite, Aluminum, Magnesium, Unalloyed and Copper

Country of Origin: FR

Cutting Depth: 15XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS-E

Drill Size - Decimal Inch: 0.248 in

Drill Size - Metric: 6.3 mm

Finish: Bright

Flute Length: 150 mm

Flute Type: Parabolic/Spiral

Manufacturer Name: Dormer Pramet

Material: HSS-E

Number of Flutes: 2

Overall Length: 215 mm

Point Angle: 130 deg

Point Type: PFX

Series: A976

Shank Size: 6.3 mm

Shank Type: Straight

Specifications Met: DIN 1869/1

Through Coolant (Yes/No): No

Type: Heavy Duty Premium Quick-Helix

Heavy duty parabolic flute design allows greater drilling depths in one pass
Notched point improves chip formation
Premium cobalt base material increases wear resistance
Bright finish improves chip flow in soft or non-ferrous materials

For advance chip removal

DIN 1869/1|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Specification Sheet

Catalog

Manufacturer Name: Dormer Pramet

Applicable Materials: Magnetic Soft Steel, Alloy Steel, Lamellar Graphite, Aluminum, Magnesium, Unalloyed and Copper

Country of Origin: FR

Cutting Depth: 15XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS-E

Drill Size - Decimal Inch: 0.248 in

Drill Size - Metric: 6.3 mm

Finish: Bright

Flute Length: 150 mm

Flute Type: Parabolic/Spiral

Manufacturer Name: Dormer Pramet

Material: HSS-E

Number of Flutes: 2

Overall Length: 215 mm

Point Angle: 130 deg

Point Type: PFX

Series: A976

Shank Size: 6.3 mm

Shank Type: Straight

Specifications Met: DIN 1869/1

Through Coolant (Yes/No): No

Type: Heavy Duty Premium Quick-Helix

Heavy duty parabolic flute design allows greater drilling depths in one pass
Notched point improves chip formation
Premium cobalt base material increases wear resistance
Bright finish improves chip flow in soft or non-ferrous materials

For advance chip removal

DIN 1869/1|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Specification Sheet

Catalog
