Name: Pramet 6755727 Turning Insert, ANSI Code: CNMA 432:T5305, CNMA Insert, Material Grade: H, K, P, 432 Insert, Diamond Shape, 12 Seat, Negative Rake, For Use On Hardened Steel, Cast Iron and Steel, Carbide, Manufacturers Grade: T5305
Brand: Dormer Pramet
SKU: DORMER_2000683
Availability: OutOfStock

Dormer Pramet

Pramet 6755727 Turning Insert, ANSI Code: CNMA 432:T5305, CNMA Insert, Material Grade: H, K, P, 432 Insert, Diamond Shape, 12 Seat, Negative Rake, For Use On Hardened Steel, Cast Iron and Steel, Carbide, Manufacturers Grade: T5305

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Dormer Pramet

Pramet 6755727 Turning Insert, ANSI Code: CNMA 432:T5305, CNMA Insert, Material Grade: H, K, P, 432 Insert, Diamond Shape, 12 Seat, Negative Rake, For Use On Hardened Steel, Cast Iron and Steel, Carbide, Manufacturers Grade: T5305

ManufacturerPramet

Part #816055727

MFG #6755727

UPC #3603602910936

Pramet Turning Insert, CNMA Insert, 432 Insert, Diamond, 0.331 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 3/16 in Thickness, 0.508 in Length, 12 Seat, Negative Rake, 1/32 in Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: T5305, ANSI Code: CNMA 432:T5305, ISO Code: CNMA 120408:T5305, 80 deg Included Angle, 0 deg Relief Angle, Carbide, Al2O3, Material Grade: H, K, P, For Use On: Hardened Steel, Cast Iron and Steel

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: CNMA 432:T5305

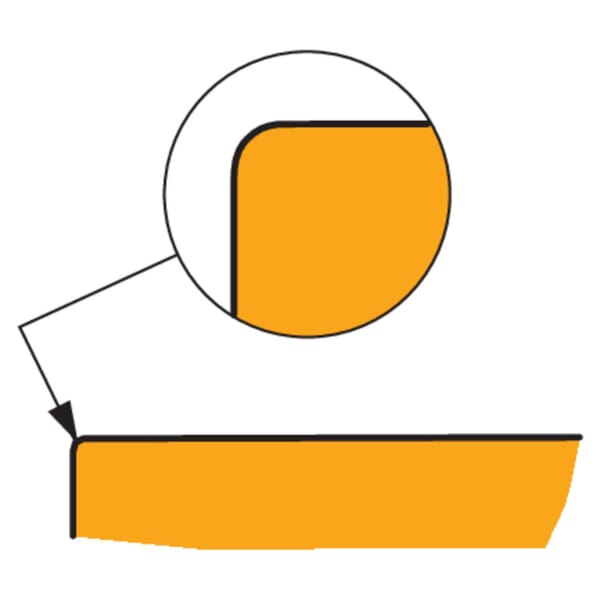

Corner Radius: 1/32 in

Country of Origin: CZ

Finish: Al2O3, MT-CVD-Al2O3 Coated

For Use On: Hardened Steel, Cast Iron and Steel

Hole Diameter: 0.203 in

Included Angle: 80 deg

Inscribed Circle: 1/2 in

Insert Size: 432

Insert Style: CNMA

ISO Code: CNMA 120408:T5305

Length: 0.508 in

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T5305

Material: Carbide

Material Grade: H, K, P

Maximum Depth of Cut: 0.331 in

Rake: Negative

Relief Angle: 0 deg

Seat Size: 12

Shape: Diamond

Thickness: 3/16 in

T5305 grade fine grained substrate with a low cobalt content
Thick layer of MT-CVD coating with a layer of Al2O3 on the surface
Special finish for coating
Top performance for machining gray cast iron
Material with the highest abrasion resistance of the 5300 series
High cutting speeds
Continuous and slightly interrupted cut

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Pramet Turning Insert, CNMA Insert, 432 Insert, Diamond, 0.331 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 3/16 in Thickness, 0.508 in Length, 12 Seat, Negative Rake, 1/32 in Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: T5305, ANSI Code: CNMA 432:T5305, ISO Code: CNMA 120408:T5305, 80 deg Included Angle, 0 deg Relief Angle, Carbide, Al2O3, Material Grade: H, K, P, For Use On: Hardened Steel, Cast Iron and Steel

Catalog

Manufacturer Name: Dormer Pramet

ANSI Code: CNMA 432:T5305

Corner Radius: 1/32 in

Country of Origin: CZ

Finish: Al2O3, MT-CVD-Al2O3 Coated

For Use On: Hardened Steel, Cast Iron and Steel

Hole Diameter: 0.203 in

Included Angle: 80 deg

Inscribed Circle: 1/2 in

Insert Size: 432

Insert Style: CNMA

ISO Code: CNMA 120408:T5305

Length: 0.508 in

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T5305

Material: Carbide

Material Grade: H, K, P

Maximum Depth of Cut: 0.331 in

Rake: Negative

Relief Angle: 0 deg

Seat Size: 12

Shape: Diamond

Thickness: 3/16 in

T5305 grade fine grained substrate with a low cobalt content
Thick layer of MT-CVD coating with a layer of Al2O3 on the surface
Special finish for coating
Top performance for machining gray cast iron
Material with the highest abrasion resistance of the 5300 series
High cutting speeds
Continuous and slightly interrupted cut

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Pramet Turning Insert, CNMA Insert, 432 Insert, Diamond, 0.331 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 3/16 in Thickness, 0.508 in Length, 12 Seat, Negative Rake, 1/32 in Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: T5305, ANSI Code: CNMA 432:T5305, ISO Code: CNMA 120408:T5305, 80 deg Included Angle, 0 deg Relief Angle, Carbide, Al2O3, Material Grade: H, K, P, For Use On: Hardened Steel, Cast Iron and Steel
